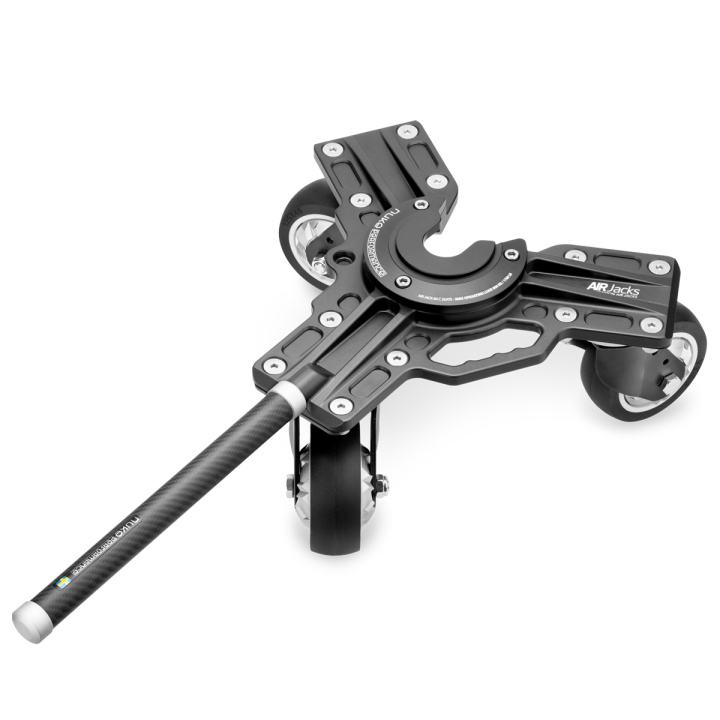

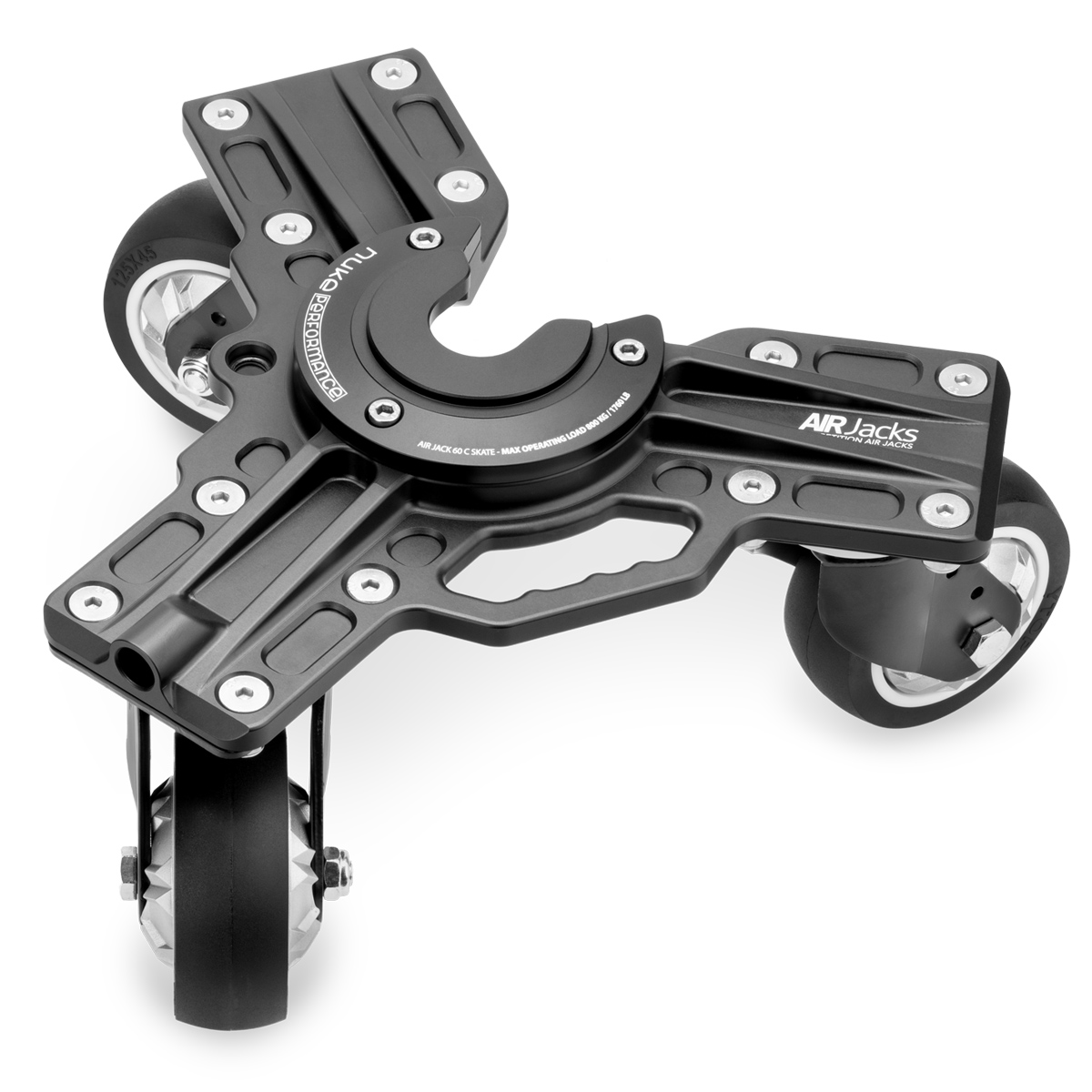

The Nuke Performance Air Jack 60C Skate is precision-engineered to perfectly fit the high-pressure Air Jack 60C, making it safer and easier to maneuver your race car in the workshop, pit, or warehouse.
Built to withstand the toughest demands of professional motorsport, these skates ensure smooth, stable, and secure handling when the car is lifted with air jacks. Once positioned, the vehicle can be rotated and moved in any direction with minimal effort.
• Easily rotate and move your vehicle 360°
• Made for Nuke Performance Air Jack 60C
• Maximum load of 960 KG each

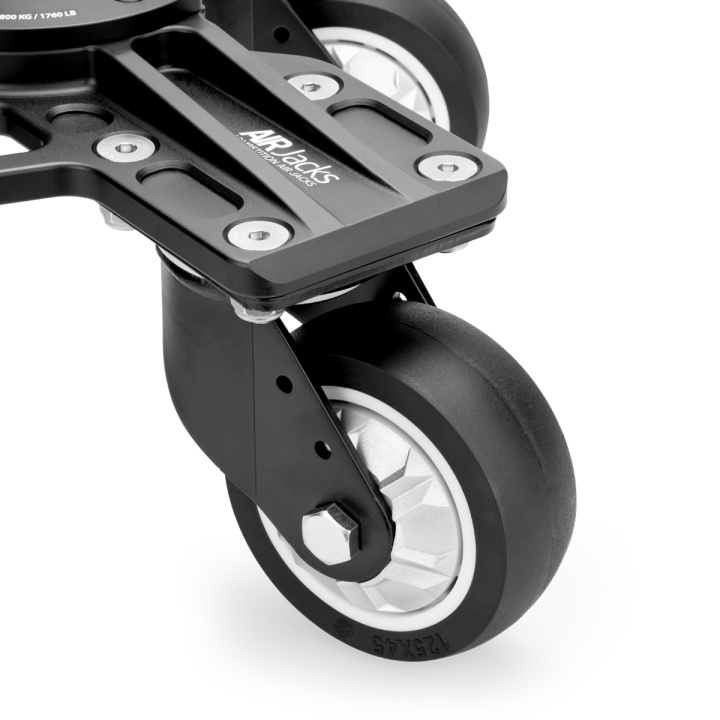

• 3x heavy load, full swivel wheels
• Optional carbon handles for easy reach
The Air Jack 60C Skate offers a reliable and flexible way to move your vehicle with full 360° rotation. Position the skates under the car while lifted by the air jacks, then lower the vehicle to lock it securely in place. Ideal for workshops, pit areas, and storage environments where precise movement is essential. Each skate handles a maximum load of 960 KG, surpassing the capacity of the air jacks, ensuring a safe and long-lasting use.

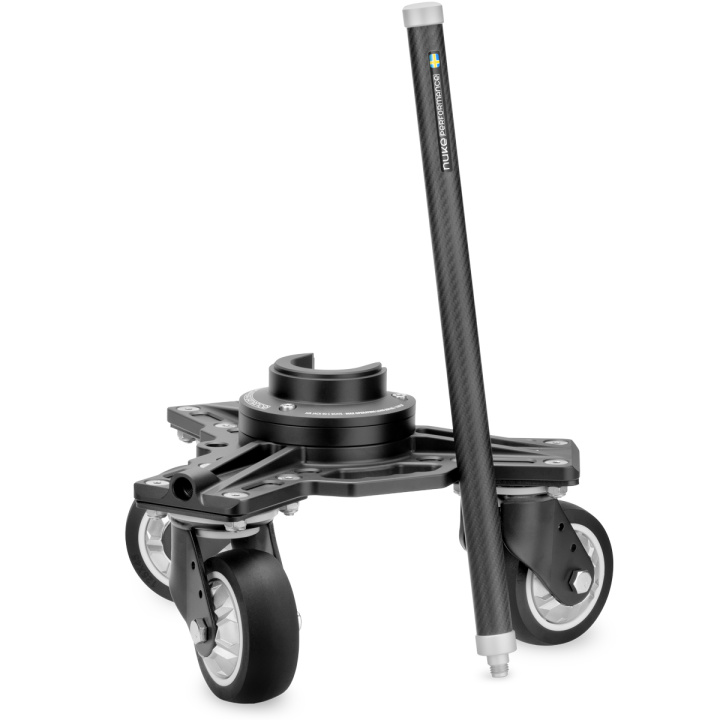

• Optional carbon handles, available in three different lengths, are easy to attach when you need to reach easily under your vehicle.

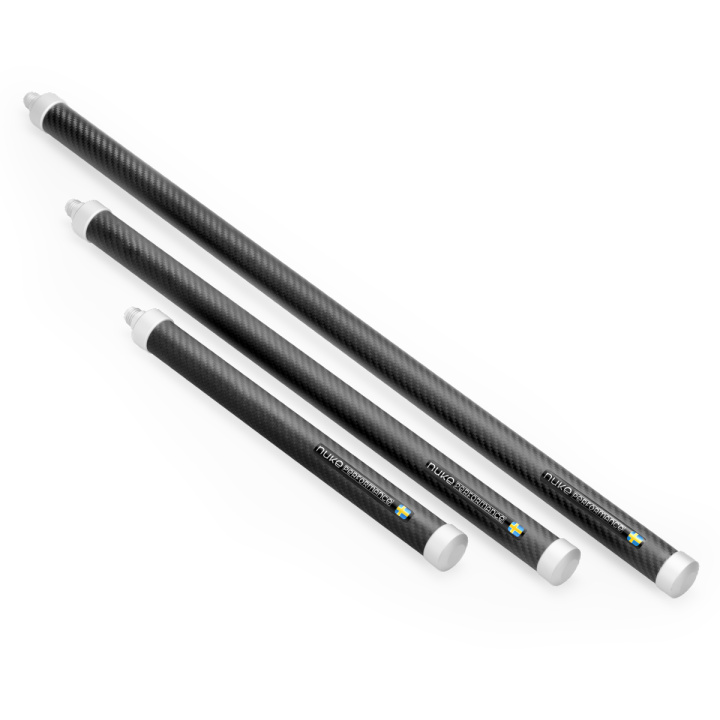

For effortless placement under your vehicle, the Nuke Performance Air Jack Skates can be equipped with optional carbon fiber handles, available in three different lengths – 330mm, 530mm, and 730mm (available here). Simply choose the size that best suits your setup.
• Optional handles are available in three different lengths

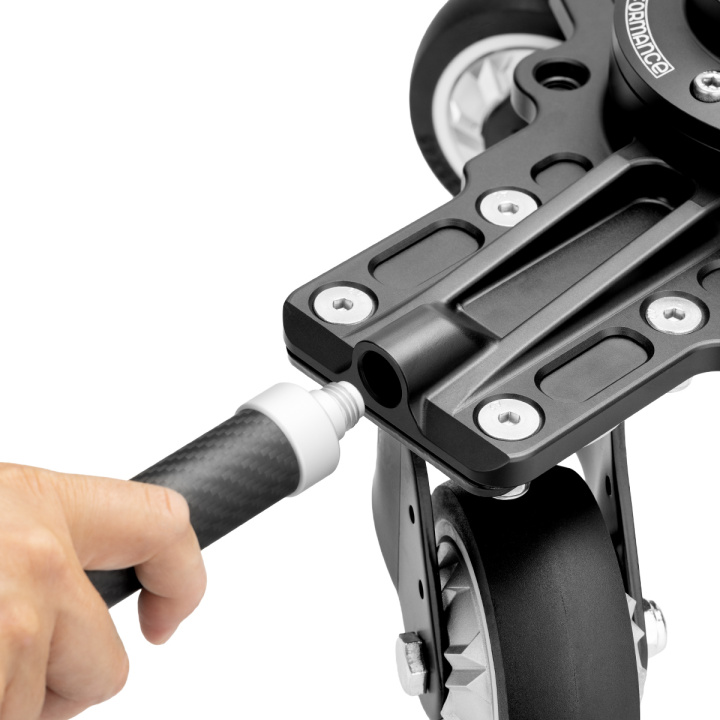

The handles are quick and easy to attach, making it possible to reach even the most hard-to-access air jacks. Each skate also features a top-mounted handle position, perfect for convenient storage and for moving the skates around the pit, workshop, or warehouse.
Air Jack Skate Carbon Handle, 330mm Part # : 570-05-210
Air Jack Skate Carbon Handle, 530mm Part # : 570-05-211
Air Jack Skate Carbon Handle, 730mm Part # : 570-05-212
• Each skate has an integrated handle for easy carrying and quick positioning.
Each Air Jack Skate is equipped with a built-in handle that makes it effortless to carry, maneuver, and position around the air jack piston. Quick to grab and simple to use, the integrated handle ensures fast and convenient setup in any environment.
The Nuke Performance Air Jack 60C Skates are the perfect addition for both professional motorsport teams and dedicated enthusiasts who want a simple, reliable way to move their vehicle in the pit, workshop, or warehouse. With skates in place, you gain new flexibility to reposition your car without wheels and tires mounted – it doesn’t get more convenient than this.
• Optional spacers are available for fine adjustment of the lift height when the vehicle is lowered onto the air jack skate.
Both 8 mm (0.31") and 16 mm (0.62") spacers are available for fine adjustment of the final height of the Air Jack skates. The Air Jack 60C skate comes without any additional spacers as standard, which can be added if additional lift is required. Without any additional spacers installed, there is approximately 30 mm of clearance from the top of the skate to the air jack cylinder.
Air Jack Skate distance plate, 8mm Part # : 570-05-213
Air Jack Skate distance plate, 16mm Part # : 570-05-214
• Delivers the same uncompromising motorsport quality and performance as the rest of the air jack product range.
The Nuke Performance Air Jack Skates deliver the same uncompromising motorsport quality and performance as the rest of the Nuke Performance product range. When combined with our high-pressure Air Jacks, they unlock the full potential of your setup – offering unmatched speed, safety, and flexibility when lifting and moving your race car.
" Choosing Nuke means choosing reliable, track-proven equipment that saves valuable time in both the pit and the workshop. "
All Nuke Performance products are proudly designed and developed in-house in Sweden, ensuring top-tier engineering and attention to detail for the most demanding motorsport environments.

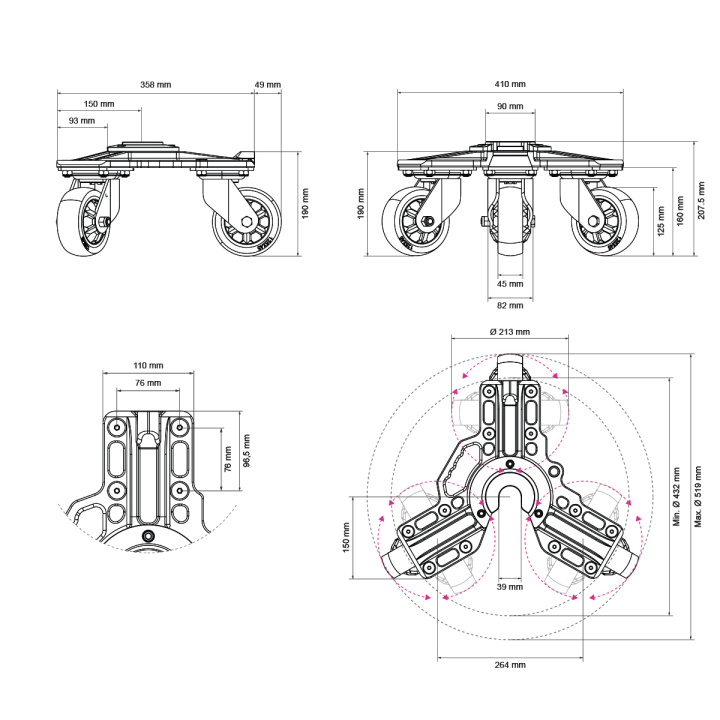

• Air Jack 60C Skate Specifications:
For more information about specifications, view the product manual.
| Compatibility | Nuke Performance Air Jack 60 C * |
| Wheel specification | 124x45mm Swivel, 320 KG max load |
| Max load | 960kg (2116lb) / skate ** |
| Max. outer diameter | 519.0mm (20.43") |
| Min. outer diameter | 432.0mm (17.01") |
| Height | 207.5mm (8.17") |
| Width | 410.0mm (16.14") |
| Weight | 9196g (20.27lb) |
| Minimum clearance | 207.5mm (8.17") |
| Part # | 570-05-201 |
| EAN | 7340209509755 |
| Quantity | 1 pcs *** |
* The 570-05-201 skate only suits the Air Jack 60 C air jacks from Nuke Performance.
** The max load surpassed the capacity of the air jack.
*** Only for use with 3pcs and 4pcs air jack kits, you need the same number of air jack skates as air jacks.
• Download Product Manual (.pdf)
• Accessories / Spare Parts
• Air Jack 60C Skate includes:
1 x Air Jack Skate body
1 x Air Jack 60C top adapter plate
3 x MC6S M8x20 stainless steel bolts
12 x MF6S M10x30 stainless steel bolts
12 x LM6M M10 stainless steel nuts
1 x Product manual
• The air jack skate is sold as a single unit; for a 4-piece kit, you will need 4 skates.
• The air jack skate is delivered without the optional carbon handles; these need to be purchased separately.
