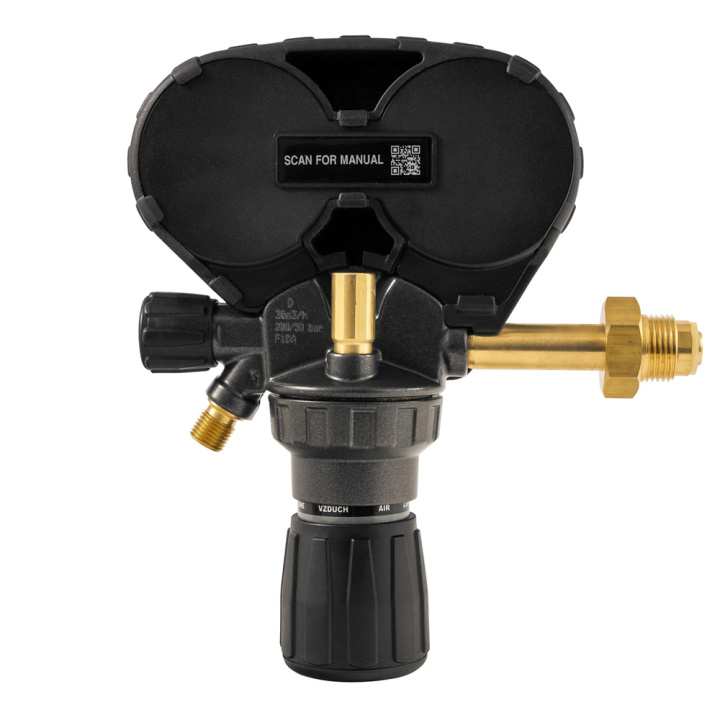

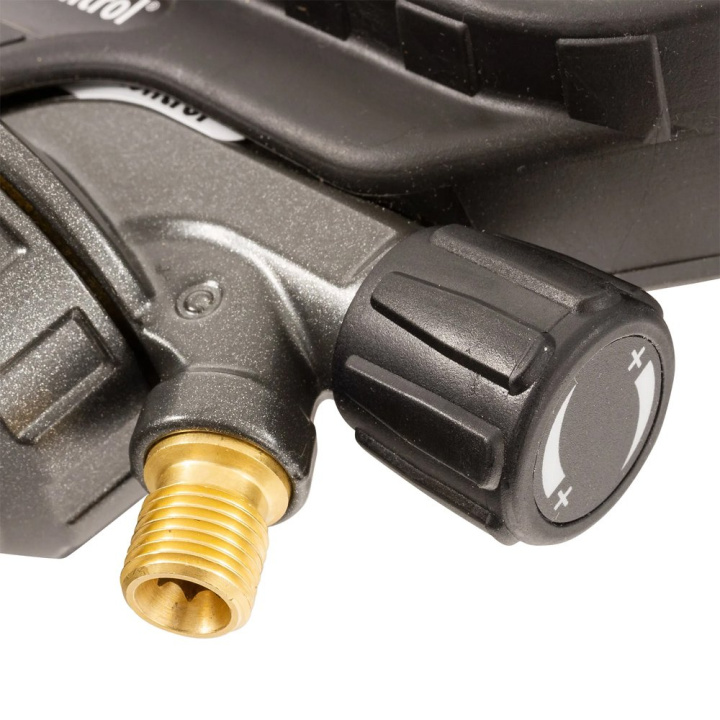

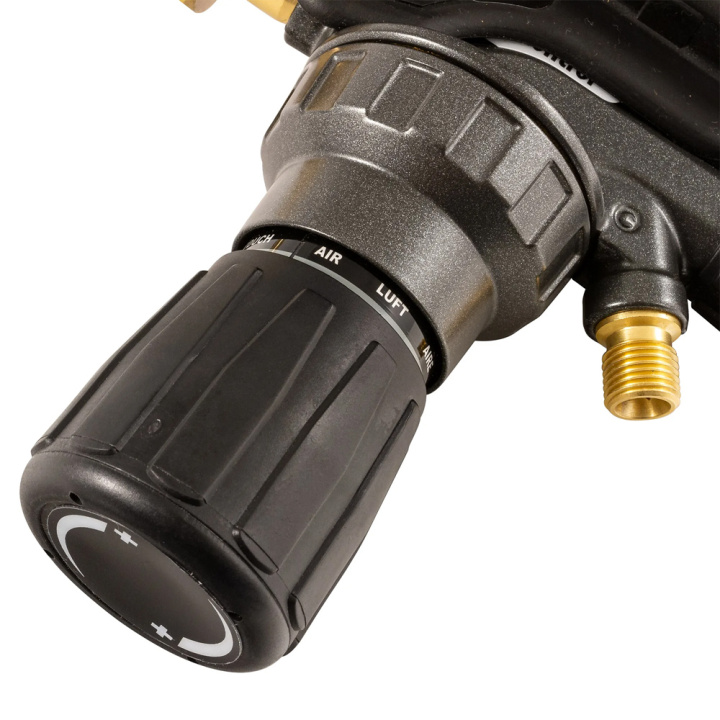

GCE ProControl 0-50 BAR pressure regulator - the perfect choice for your Air Jack setup.
Adjusting the pressure to set up your onboard vehicle air jack setup is essential in its use and efficiency. The GCE ProControl 0-50 BAR pressure regulator works perfectly with both the low and high-pressure air jacks from Nuke Performance.
• Adjustable between 0-50 BAR (0-725 PSI)

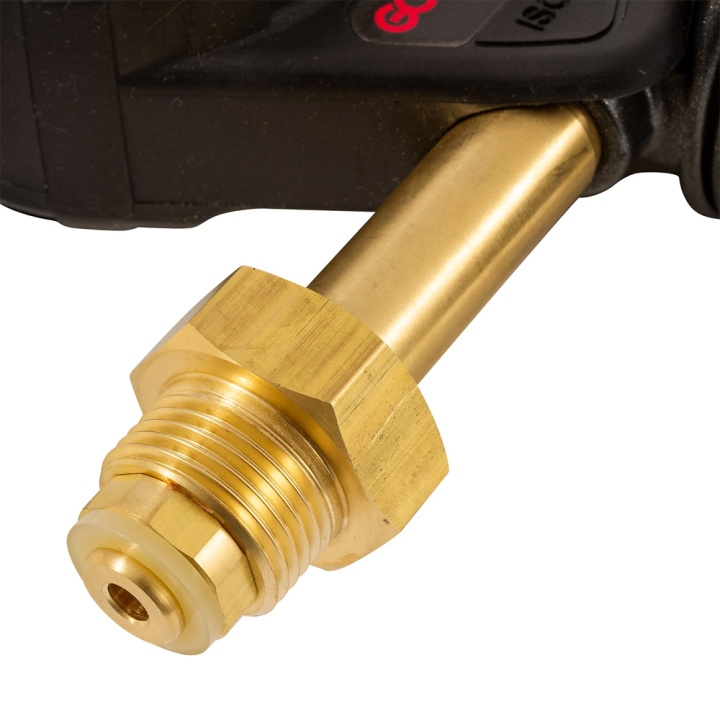

• Screws straight to your compressed air bottle, 5/8" BSPP thread
• Works with both Air Jack 60 C and Air Jack 90 C

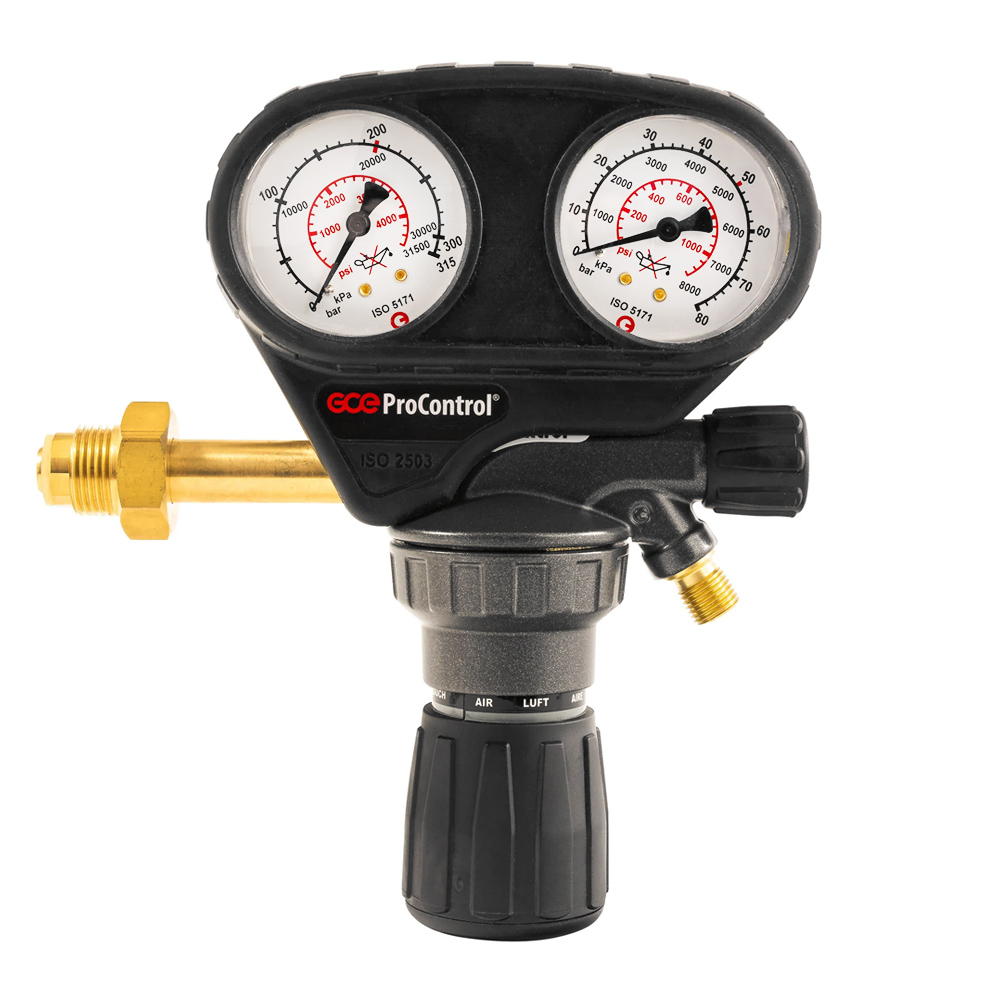

• Easy-to-read gauges for precise performance
• Excellent outlet pressure stability for bottles up to 200 BAR
The high-performance regulator made for compressed air follows the ISO 2503 and is the perfect addition to the Nuke Performance air jack systems. Robust rubber gauge protection protects the regulator and its gauges during transport and in the hectic pit lane and workshops, it saves you both service costs and time by being able to trust the equipment.
• The possibility to adjust the outgoing pressure from 0-50 BAR makes it ideal to work with both the high and low pressure air jacks from Nuke Performance.
Use together with the available hose and air jack lance to combine the compressed air bottle to your air jack system, works with both the low and high-pressure air jacks from Nuke Performance.
Air Jack Lance High Pressure Hose 2m (6.5ft) Part # : 570-01-201
Air Jack Lance, AN-6 Part # : 570-10-001
GCE ProControl series regulators are of robust design and are for daily use in indoor and outdoor operations. Combined with the Nuke Performance air jack hose and air jack lance, this regulator is the perfect choice to connect to your compressed air bottle to lift your vehicle to new heights when equipped with the Nuke Performance Air Jack 60C (available here) or Air Jack 90C (available here).
• Air Jack 0-50 BAR Pressure Regulator Specifications
For more information about specifications, contact us directly.
| Max inlet pressure | 200 BAR (2900 PSI) |
| Work temperature range | -20°C to 60°C (-4°F to 140°F) |
| Air bottle connection | 5/8" BSP Male thread |
| Outlet connection | 1/4x19 BSP Male thread * |
| Compatibility | Compressed air, Argon |
| Fits air jack hose | 570-01-201 (available here) |
| Weight | 1850g (65.28oz) |
| For motorsports use | YES |
| Body material | Brass forged |
| Part # | 570-01-205 |
| EAN | 7340209501148 |
* Compatible with the high-pressure air jack lance hose (part number 570-01-201).
