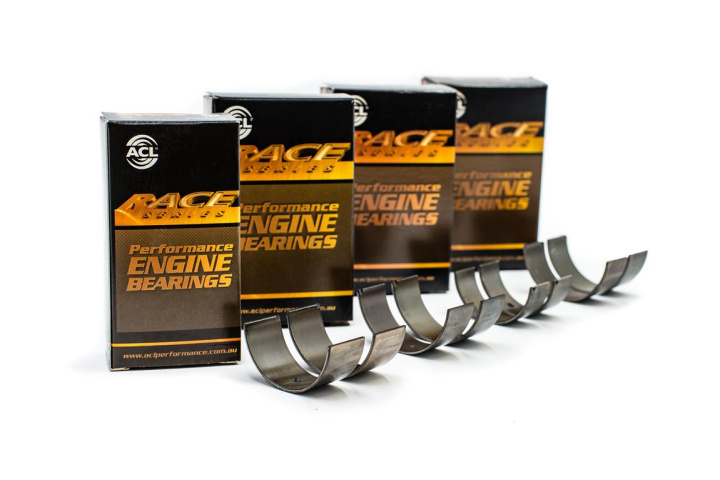

7M1397H BMW N54 / N55 / S55 Main Bearing Set ACL

Name: 7M1397H BMW N54 / N55 / S55 Main Bearing Set ACL
Brand: ACL
Price: 275 EUR
Availability: InStock

Article nr:

var-acl7M1397H

BMW N54B30 / N54B30A / N55B30 / N55B30A / S55B30 / S55B30A Main Bearing Set ACL

275 EUR

Delivery:

Warehouse stock: 0

Stock:

We recommend

Show all

ACL AG-1 FLEXIGAUGE (Green Pack) .025 - .076mm ACL

Flexigauge is available in four sizes and is used to check clearance of main and connecting rod bearings, and is suitable for Automotive, Marine and Industrial applications.

19 EUR

2-4 business days

ACL AR-1 FLEXIGAUGE (Red Pack) .051 - .152mm ACL

Flexigauge is available in four sizes and is used to check clearance of main and connecting rod bearings, and is suitable for Automotive, Marine and Industrial applications.

19 EUR

2-4 business days

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
Product video

Technical specification

Article nr:
var-acl7M1397H

Manufacture Partnumber: 7M1397H-.025 , 7M1397H-.25 , 7M1397H-.50 , 7M1397H-STD
Suitable for
BMW/M3 F80/All/S55B30
BMW/M4 F82/All/S55B30
BMW/M4 F83/All/S55B30
BMW/All/All/N54B30
BMW/All/All/N55B30
BMW/1 (F20)/M 135 i/N55B30A
BMW/1 (F20)/M 135 i xDrive/N55B30A
BMW/1 (F21)/M 135 i/N55B30A
BMW/1 (F21)/M 135 i xDrive/N55B30A
BMW/1 coupe (E82)/135 i/N54B30A
BMW/1 coupe (E82)/135 i/N55B30A
BMW/1 coupe (E82)/M/N54B30A
BMW/1 Convertible (E88)/135 i/N54B30A
BMW/1 Convertible (E88)/135 i/N55B30A
BMW/2 coupe (F22, F87)/M 235 i/N55B30A
BMW/2 coupe (F22, F87)/M 235 i xDrive/N55B30A
BMW/2 coupe (F22, F87)/M2/N55B30A
BMW/2 coupe (F22, F87)/M2 Competition/S55B30A
BMW/2 coupe (F22, F87)/M2 CS/S55B30A
BMW/2 Convertible (F23)/M 235 i/N55B30A
BMW/2 Convertible (F23)/M 235 i xDrive/N55B30A
BMW/3 (E90)/335 i/N54B30A
BMW/3 (E90)/335 i/N55B30A
BMW/3 (E90)/335 xi/N54B30A
BMW/3 (E90)/335 i xDrive/N54B30A
BMW/3 (E90)/335 i xDrive/N55B30A
BMW/3 (F30, F80)/335 i/N55B30A
BMW/3 (F30, F80)/335 i xDrive/N55B30A
BMW/3 (F30, F80)/ActiveHybrid/N55B30A
BMW/3 (F30, F80)/M3/S55B30A
BMW/3 (F30, F80)/M3 Competition/S55B30A
BMW/3 (F30, F80)/M3 CS/S55B30A
BMW/3 coupe (E92)/335 i/N54B30A
BMW/3 coupe (E92)/335 i/N55B30A
BMW/3 coupe (E92)/335 xi/N54B30A
BMW/3 coupe (E92)/335 xi/N55B30A
BMW/3 coupe (E92)/335 i xDrive/N55B30A
BMW/3 coupe (E92)/335 i xDrive/N54B30A
BMW/3 Gran Turismo (F34)/335 i xDrive/N55B30A
BMW/3 Gran Turismo (F34)/335 i/N55B30A
BMW/3 Convertible (E93)/335 i/N54B30A
BMW/3 Convertible (E93)/335 i/N55B30A
BMW/3 Touring (E91)/335 i/N54B30A
BMW/3 Touring (E91)/335 i/N55B30A
BMW/3 Touring (E91)/335 xi/N54B30A
BMW/3 Touring (E91)/335 xi/N55B30A
BMW/3 Touring (E91)/335 i xDrive/N54B30A
BMW/3 Touring (E91)/335 i xDrive/N55B30A
BMW/3 Touring (F31)/335 i xDrive/N55B30A
BMW/3 Touring (F31)/335 i/N55B30A
BMW/4 coupe (F32, F82)/435 i xDrive/N55B30A
BMW/4 coupe (F32, F82)/435 i/N55B30A
BMW/4 coupe (F32, F82)/M4/S55B30A
BMW/4 coupe (F32, F82)/M4 Competition/S55B30A
BMW/4 coupe (F32, F82)/M4 GTS/S55B30A
BMW/4 coupe (F32, F82)/M4 CS/S55B30A
BMW/4 Gran Coupe (F36)/435 i/N55B30A
BMW/4 Gran Coupe (F36)/435 i xDrive/N55B30A
BMW/4 Convertible (F33, F83)/435 i/N55B30A
BMW/4 Convertible (F33, F83)/M4/S55B30A
BMW/4 Convertible (F33, F83)/435 i xDrive/N55B30A
BMW/4 Convertible (F33, F83)/M4 Competition/S55B30A
BMW/5 (F10)/535 i/N55B30A
BMW/5 (F10)/535 i xDrive/N55B30A
BMW/5 (F10)/ActiveHybrid/N55B30A
BMW/5 Gran Turismo (F07)/535 i/N55B30A
BMW/5 Gran Turismo (F07)/535 i xDrive/N55B30A
BMW/5 Touring (F11)/535 i/N55B30A
BMW/5 Touring (F11)/535 i xDrive/N55B30A
BMW/6 coupe (F13)/640 i/N55B30A
BMW/6 coupe (F13)/640 i xDrive/N55B30A
BMW/6 Gran Coupe (F06)/640 i/N55B30A
BMW/6 Gran Coupe (F06)/640 i xDrive/N55B30A
BMW/6 Convertible (F12)/640 i/N55B30A
BMW/6 Convertible (F12)/640 i xDrive/N55B30A
BMW/7 (F01, F02, F03, F04)/740 i, Li/N54B30A
BMW/7 (F01, F02, F03, F04)/740 i, Li/N55B30A
BMW/7 (F01, F02, F03, F04)/740 i, Li xDrive/N55B30A
BMW/7 (F01, F02, F03, F04)/ActiveHybrid 7/N55B30A
BMW/X3 (F25)/xDrive 35 i/N55B30A
BMW/X4 (F26)/xDrive 35 i/N55B30A
BMW/X4 (F26)/M 40 i/N55B30A
BMW/X5 (E70)/xDrive 35 i/N55B30A
BMW/X5 (E70)/xDrive 40 i/N55B30A
BMW/X5 (F15, F85)/xDrive 35 i/N55B30A
BMW/X6 (E71, E72)/xDrive 35 i/N54B30A
BMW/X6 (E71, E72)/xDrive 35 i/N55B30A
BMW/X6 (F16, F86)/xDrive 35 i/N55B30A
BMW/Z4 Roadster (E89)/sDrive 35 i/N54B30A
BMW/Z4 Roadster (E89)/sDrive 35 is/N54B30A
Brand
ACL has a proud and remarkable history in motorsport.
There is no better place to test its products than on a racing track. It is in competitions that good products shine!

ACL Race Series bearings are today well-known products, but the foundation was already laid in 1960, when the manufacture of bearings for winning F1 cars took off. After that came series such as the Australian Supercar Championship and several others, where the development of ACL's products continued. The combination of history in motorsport, collected test data, new materials and processes means that the bearings are now a standard of what engine builders worldwide expect.

No matter what you are looking for bearings for, ACL is a safe way to go. IF you're looking for the best - demand the best.
