Revitalize your 2020+ Super Duty 7.3L engine with the Ford Performance 7.3L RH CNC Ported Cylinder Head, crafted for peak airflow and precision. Feel the power of legendary engineering, just like the Megazilla™ 615HP engine.

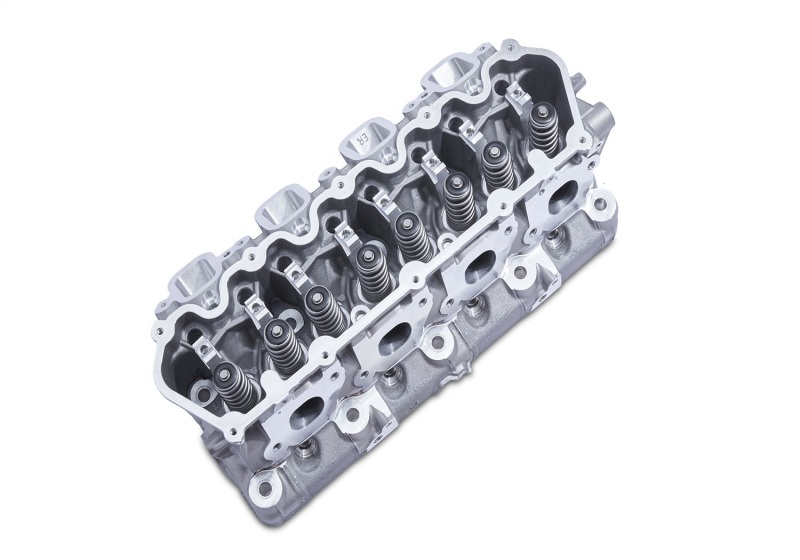

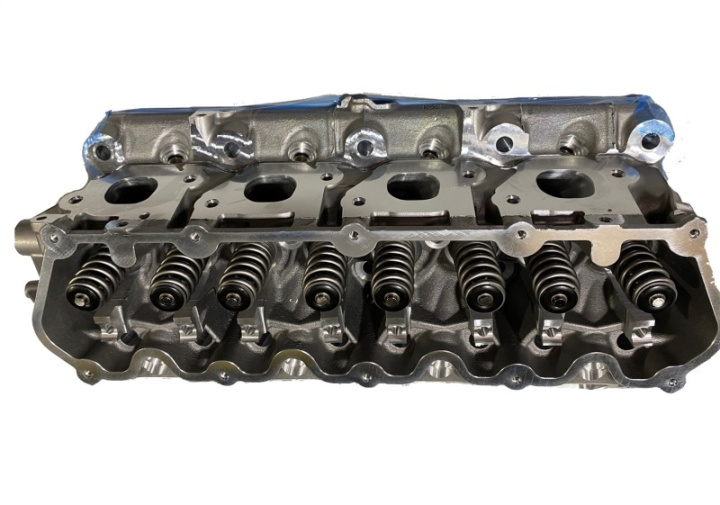

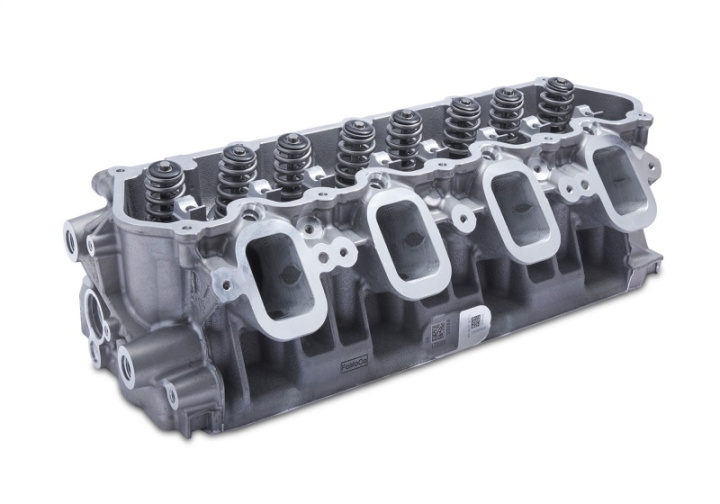

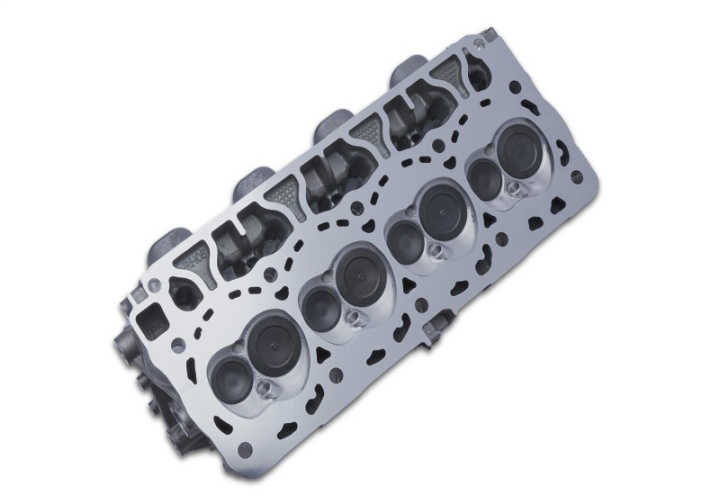

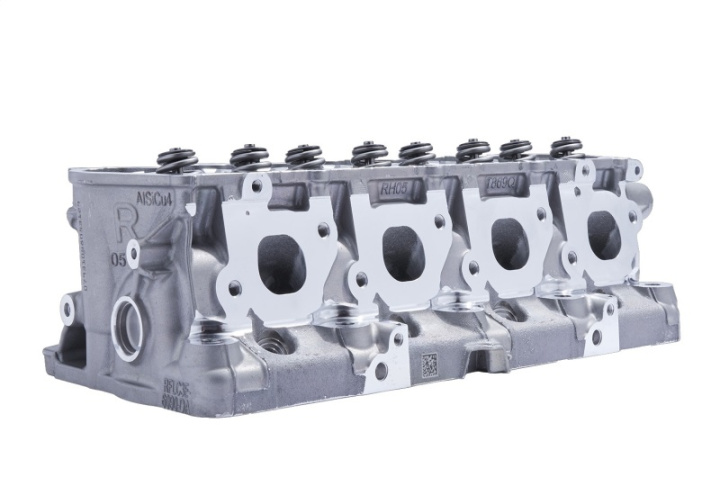

Ford Performance Parts CNC ported right side cylinder head for 2020+ Super Duty 7.3L gasoline engine.
- Assembled ready for installation

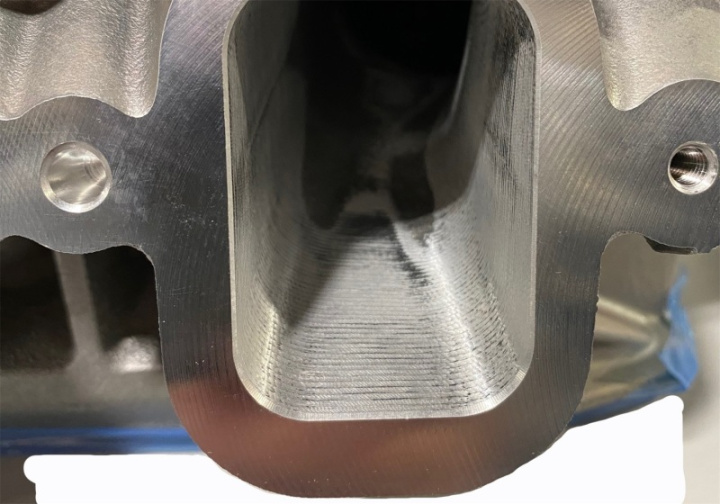

- CNC ported Cast aluminum
- As used in the Ford Performance Megazilla™ 615HP crate engine

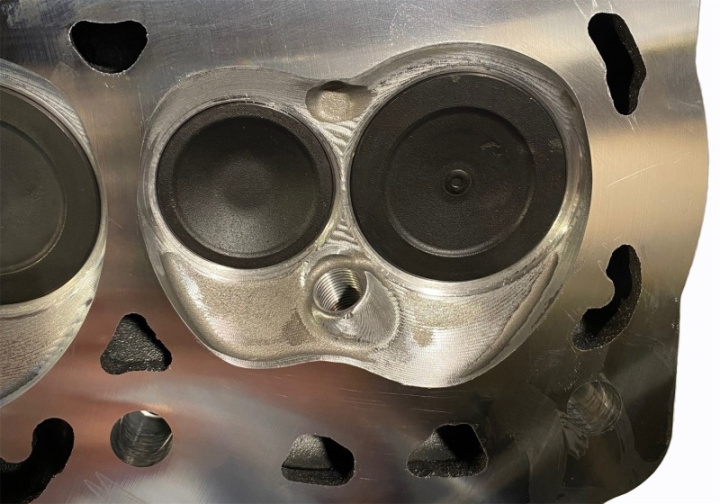

- 62.4 cc combustion chamber
- PAC 1282LX valve springs / PAC R393 retainers
- 140-150# lbs @ 2.350" installed height.
- 390-415# @ 1.750" open
- Valve stem diameter: 8 mm
- Intake valve diameter: 55mm (2.165")
- Exhaust valve diameter 42.4mm (1.670")
- Flow data: (CFM) @ 28" H20 on 4.250" bore
