5M1633HX Nissan CA16 / CA18 / CA20 Main bearing set (ACL Race Series) with 0.025mm extra clearance ACL in the group Select car model / Nissan / 200SX S13 1989-1994 / Tuning / Engine parts at DDESIGN Scandinavia AB (var-acl5M1633HX)

Horsepower

Newton meter

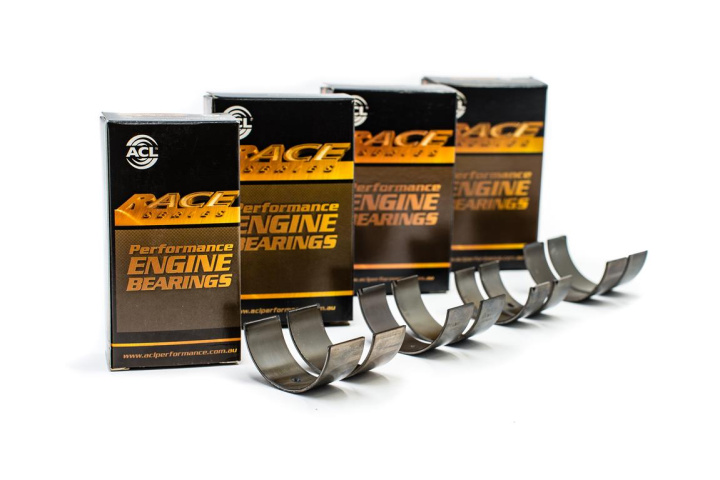

5M1633HX Nissan CA16 / CA18 / CA20 Main bearing set (ACL Race Series) with 0.025mm extra clearance ACL

Name: 5M1633HX Nissan CA16 / CA18 / CA20 Main bearing set (ACL Race Series) with 0.025mm extra clearance ACL
Brand: ACL
Price: 187 EUR
Availability: InStock

Article nr:

var-acl5M1633HX

Nissan CA16 / CA18 / CA20 Main bearing set ACL Race Series with 0.025mm extra clearance

187 EUR

Delivery:

Warehouse stock: 0

Stock:

We recommend

Show all

ACL AG-1 FLEXIGAUGE (Green Pack) .025 - .076mm ACL

Flexigauge is available in four sizes and is used to check clearance of main and connecting rod bearings, and is suitable for Automotive, Marine and Industrial applications.

19 EUR

2-4 business days

ACL AR-1 FLEXIGAUGE (Red Pack) .051 - .152mm ACL

Flexigauge is available in four sizes and is used to check clearance of main and connecting rod bearings, and is suitable for Automotive, Marine and Industrial applications.

19 EUR

2-4 business days

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
Tunnel [mm]: 56.654/56.667nShaft [mm]: 52.951/52.964nMax. Wall: 1.814nMax. Length: 20nHalf type: Upper & lowernNote: 0.001 extra oil clearance on STD journal.
Product video

Technical specification

Article nr:
var-acl5M1633HX

Manufacture Partnumber: 5M1633HX-STD
Suitable for
Ford/Corsair/SOHC 8v/NIssan CA20E
Nissan/Bluebird/SOHC 8v/CA16
Nissan/Exa/DOHC 16v/CA16DE
Nissan/Gazelle/SOHC/CA18
Nissan/Exa, Silvia/DOHC 16V/CA18DE
Nissan/Bluebird, Silvia/SOHC 8v Turbo/CA18ET
Nissan/180SX, Silvia/DOHC 16v Turbo/CA18DET
Nissan/Bluebird Series 3, Gazelle, Pintara , Ford Corsair/SOHC 8v/CA20E
Nissan/Bluebird Series 3/SOHC 8v/CA20S
Nissan/Sunny, Pulsar/SOHC 8v Diesel/CD17
Nissan/Sunny, Pulsar, Serena, Primera/SOHC 8v Diesel/CD20
Nissan/Serena, Primera/SOHC 8v Turbo Diesel/CD20-T
Brand
ACL has a proud and remarkable history in motorsport.
There is no better place to test its products than on a racing track. It is in competitions that good products shine!

ACL Race Series bearings are today well-known products, but the foundation was already laid in 1960, when the manufacture of bearings for winning F1 cars took off. After that came series such as the Australian Supercar Championship and several others, where the development of ACL's products continued. The combination of history in motorsport, collected test data, new materials and processes means that the bearings are now a standard of what engine builders worldwide expect.

No matter what you are looking for bearings for, ACL is a safe way to go. IF you're looking for the best - demand the best.
