Product Info

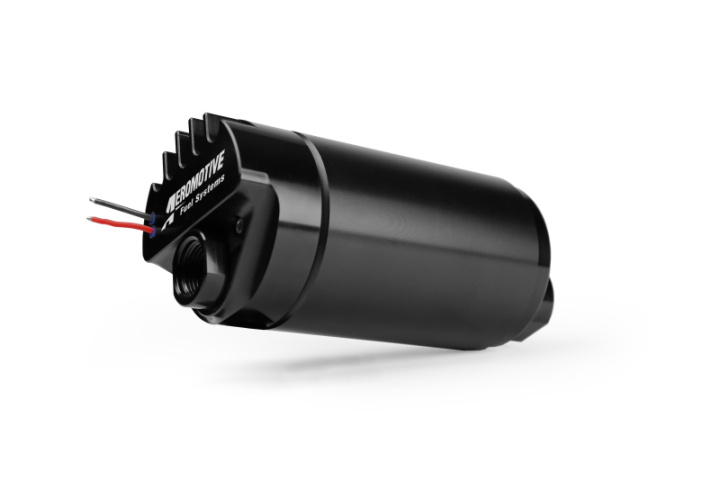

5.0 Brushless Spur Gear Pump
Ground Shaking Performance - Advanced Technology
- Supports
- Fuel injected engines: GAS
up to 3400 FWHP - naturally aspirated
up to 2600 FWHP - forced air induction
- Carbureted engines: GAS
Up to 3600 FWHP - naturally aspirated
Up to 2700 FWHP - forced air induction
- Fuel injected engines: E85
up to 2380 FWHP – naturally aspirated
up to 1820 FWHP – forced air induction
- Carbureted engines: E85
Up to 2520 FWHP – naturally aspirated
Up to 1890 FWHP – forced air induction
- Fuel injected engines: METHANOL
up to 1,190 FWHP – naturally aspirated
up to 910 FWHP – forced air induction
- Carbureted engines: METHANOL
Up to 1,260 FWHP – naturally aspirated
Up to 945 FWHP – forced air induction
- Fuel injected engines: GAS
- Lighter than the traditional external mount pumps.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- ORB-12 inlet and ORB-10 outlet ports.
- Requires straight 12-VDC to 16-VDC power supply.
- Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range. If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts
