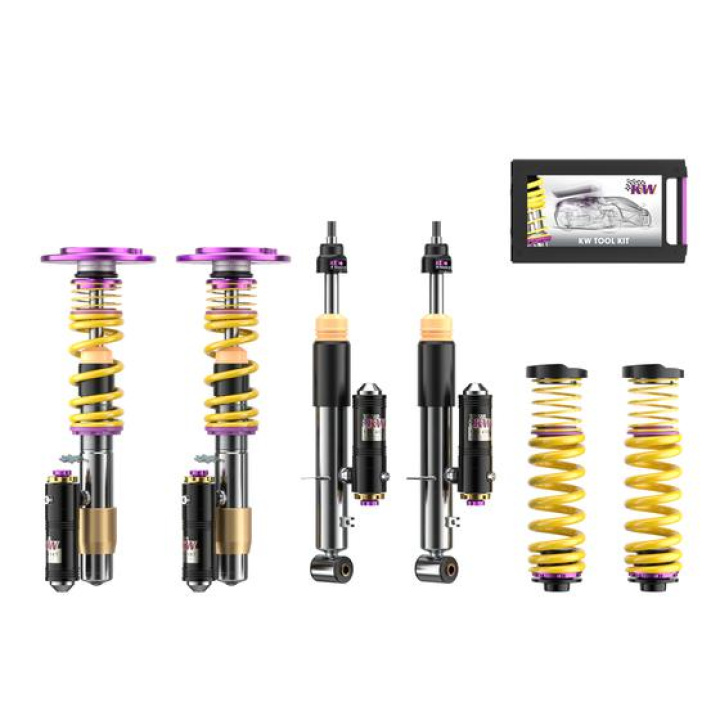

KW Suspension V4 Clubsport 39756227
Note:
Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
Clubsport coilover with top mount: only with front axle top mount available
Fits:
TOYOTA YARIS (_P21_. _PA1_. _PH1_) 02/2020- (1.6 GR 4WD (GXPA16) / 280 HK) Karosstyp: Hatchback / Drivning: 4WD
Wheel loads, vehicle weight and chassis reinforcements (increased body stiffness) can all be taken into consideration with adjustment capabilities of the V4 Clubsport. Similar to KW Competition 3-way coilovers, low-speed and high-speed compression adjustment is done via KW''s patented two-valve control on the reservoir.
By hand, you can vary the low-speed compression damping with six precise clicks at the purple adjustment wheel. The gold adjustment wheel allows the user to change the high-speed compression damping with 14 precise clicks. Rebound adjust is provided with 16 adjustable clicks providing a noticeable change from the rebound adjustment setting. A reduction in rebound forces provides a more comfortable ride quality suitable for highway driving.
16 precise clicks in rebound adjustment dampening
Adjustable compression damping with 6 clicks in low-speed range and 14 precise clicks in the high-speed range
Continuous lowering
TÜV-tested adjustment range
High-quality components for long-term durability
Independent damping force adjustability with aluminum spherical bearing top mounts available
