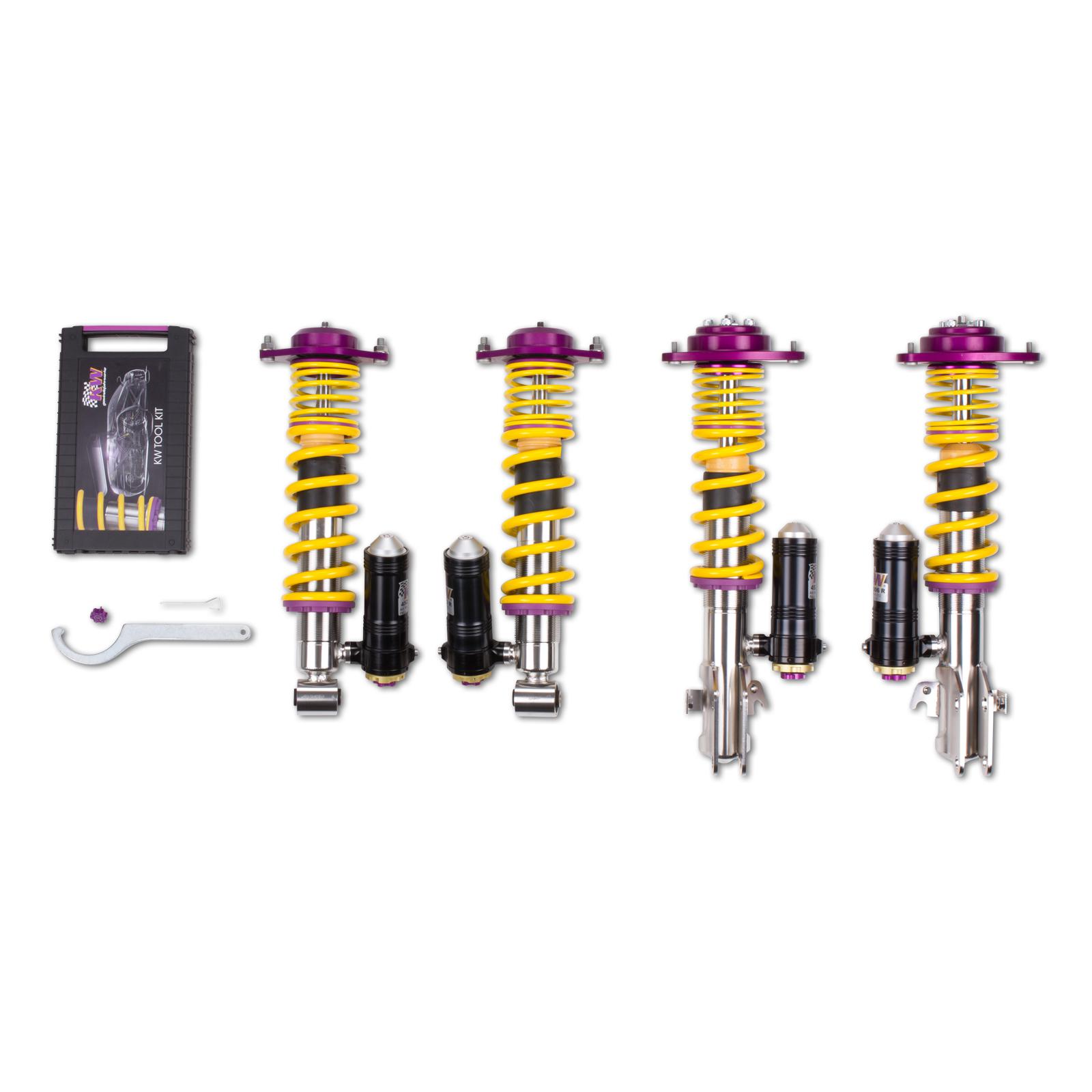

KW Suspension V4 Clubsport 39745215
Note:
Height adjustable on the front and rear axles (threaded strut housings)
Fits:
SUBARU IMPREZA Hatchback (G3. GR. GH) 03/2007-05/2014 (1.5 AWD / 107 HK) Karosstyp: Hatchback / Drivning: 4WD
SUBARU IMPREZA Hatchback (G3. GR. GH) 03/2007-05/2014 (2.0 AWD / 160 HK) Karosstyp: Hatchback / Drivning: 4WD
SUBARU IMPREZA Hatchback (G3. GR. GH) 03/2007-05/2014 (2.0 D AWD / 150 HK) Karosstyp: Hatchback / Drivning: 4WD
SUBARU IMPREZA Hatchback (G3. GR. GH) 03/2007-05/2014 (2.0 R AWD (GH7) / 150 HK) Karosstyp: Hatchback / Drivning: 4WD
SUBARU IMPREZA Hatchback (G3. GR. GH) 03/2007-05/2014 (2.5 AWD (GHE) / 230 HK) Karosstyp: Hatchback / Drivning: 4WD
SUBARU IMPREZA Hatchback (G3. GR. GH) 03/2007-05/2014 (2.5 AWD / 173 HK) Karosstyp: Hatchback / Drivning: 4WD
SUBARU IMPREZA Hatchback (G3. GR. GH) 03/2007-05/2014 (2.5 WRX SE AWD (GRE) / 265 HK) Karosstyp: Hatchback / Drivning: 4WD
SUBARU IMPREZA Sedan GR (G3) 01/2007- (1.5 AWD / 107 HK) Karosstyp: Sedan / Drivning: 4WD
SUBARU IMPREZA Sedan GR (G3) 01/2007- (2.0 i AWD / 150 HK) Karosstyp: Sedan / Drivning: 4WD
SUBARU IMPREZA Sedan GR (G3) 01/2007- (2.5 AWD / 165 HK) Karosstyp: Sedan / Drivning: 4WD
SUBARU IMPREZA Sedan GR (G3) 01/2007- (2.5 AWD / 167 HK) Karosstyp: Sedan / Drivning: 4WD
SUBARU IMPREZA Sedan GR (G3) 01/2007- (2.5 AWD / 230 HK) Karosstyp: Sedan / Drivning: 4WD
SUBARU IMPREZA Sedan GR (G3) 01/2007- (2.5 WRX SE AWD / 265 HK) Karosstyp: Sedan / Drivning: 4WD
Wheel loads, vehicle weight and chassis reinforcements (increased body stiffness) can all be taken into consideration with adjustment capabilities of the V4 Clubsport. Similar to KW Competition 3-way coilovers, low-speed and high-speed compression adjustment is done via KW''s patented two-valve control on the reservoir.

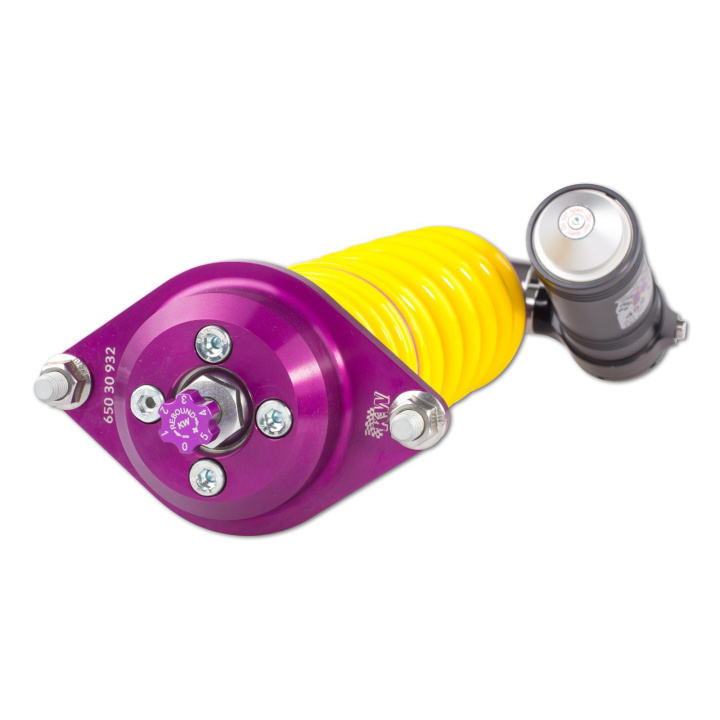

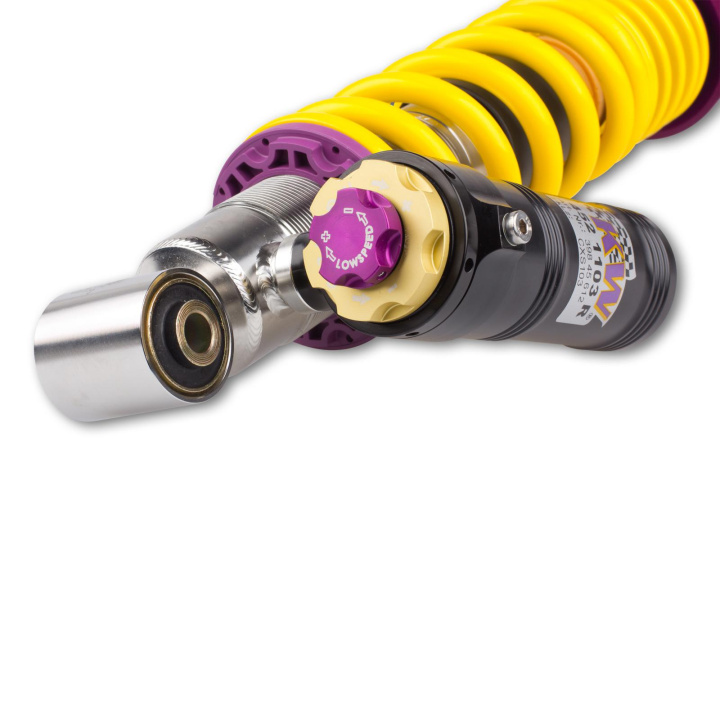

By hand, you can vary the low-speed compression damping with six precise clicks at the purple adjustment wheel. The gold adjustment wheel allows the user to change the high-speed compression damping with 14 precise clicks. Rebound adjust is provided with 16 adjustable clicks providing a noticeable change from the rebound adjustment setting. A reduction in rebound forces provides a more comfortable ride quality suitable for highway driving.
16 precise clicks in rebound adjustment dampening
Adjustable compression damping with 6 clicks in low-speed range and 14 precise clicks in the high-speed range
Continuous lowering
TÜV-tested adjustment range
High-quality components for long-term durability
Independent damping force adjustability with aluminum spherical bearing top mounts available
