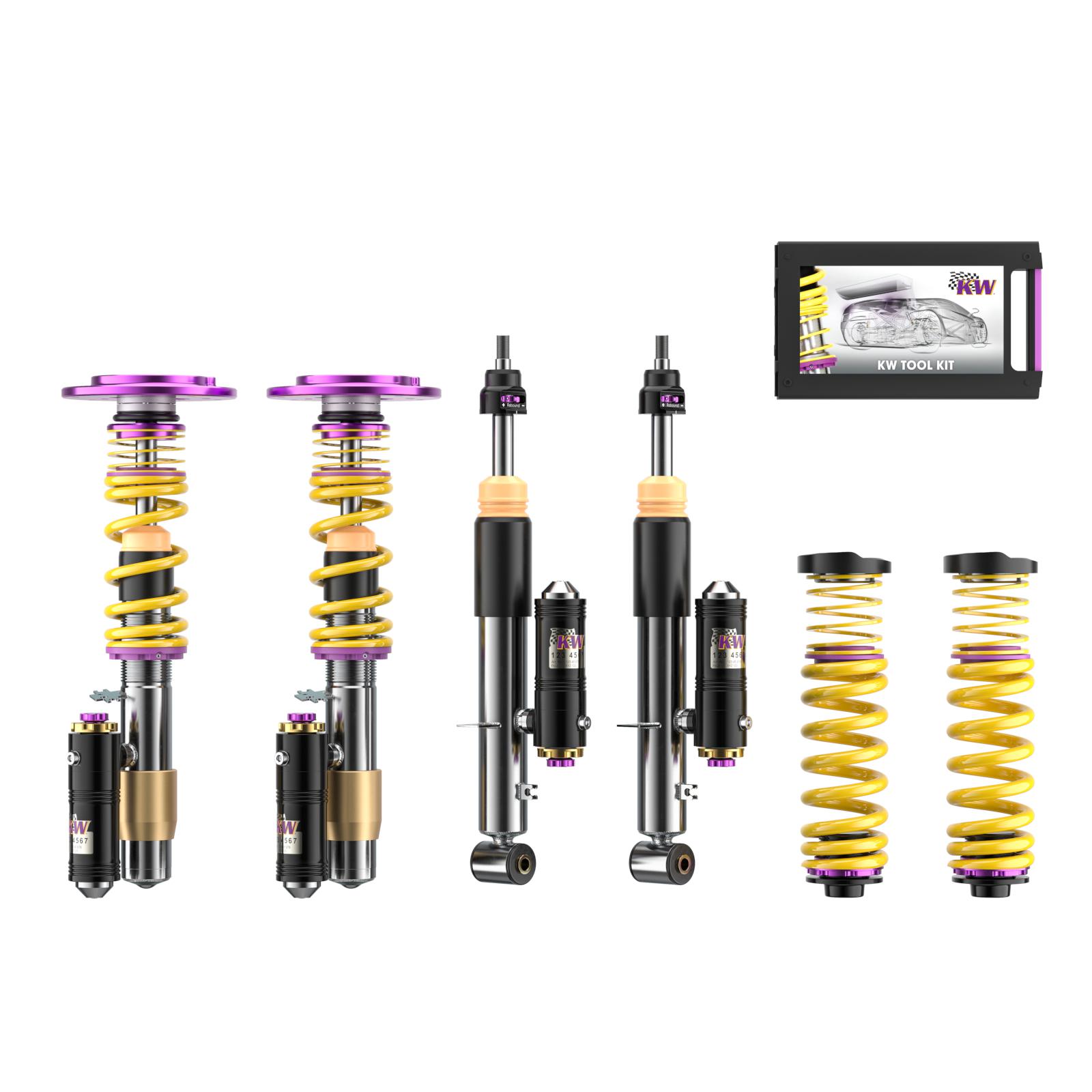

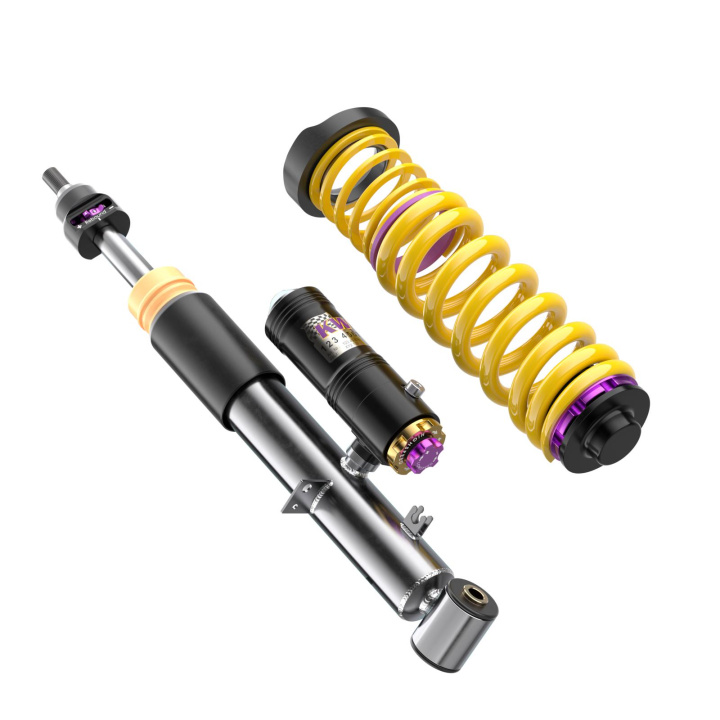

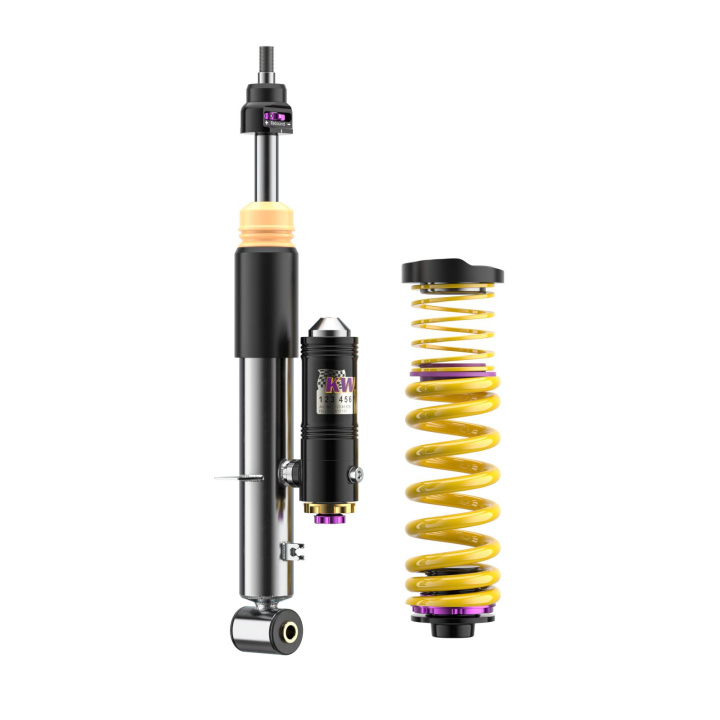

KW Suspension V4 Clubsport 39720257
Note:

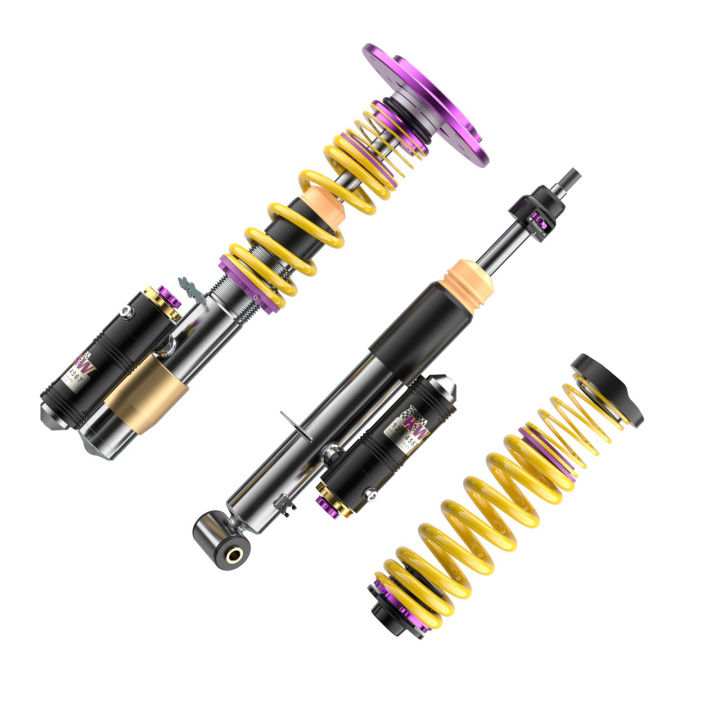

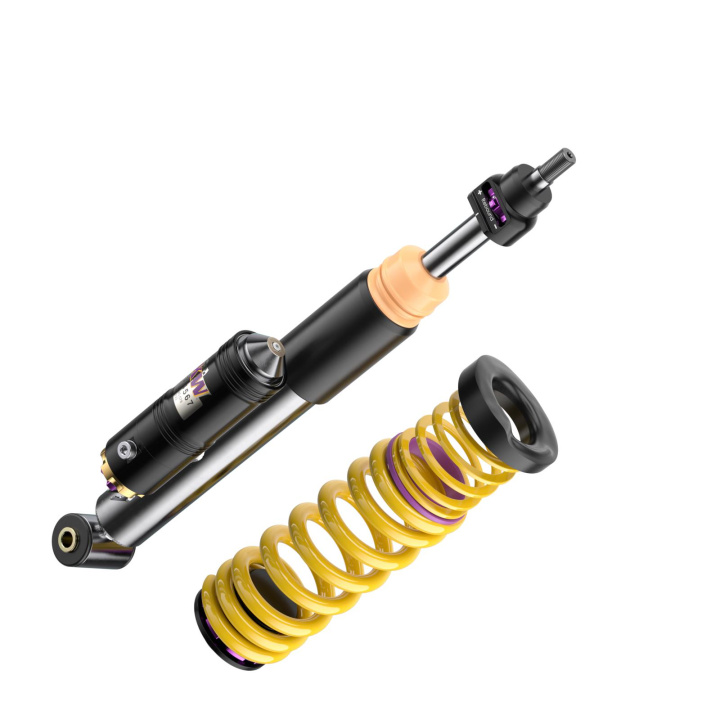

Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
Fits:

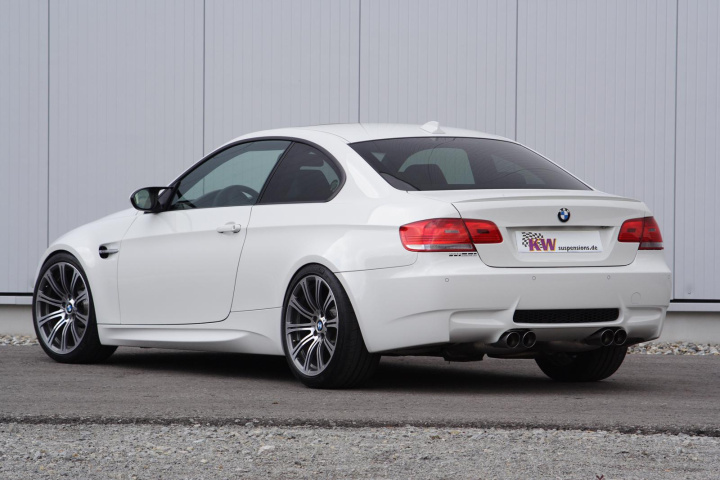

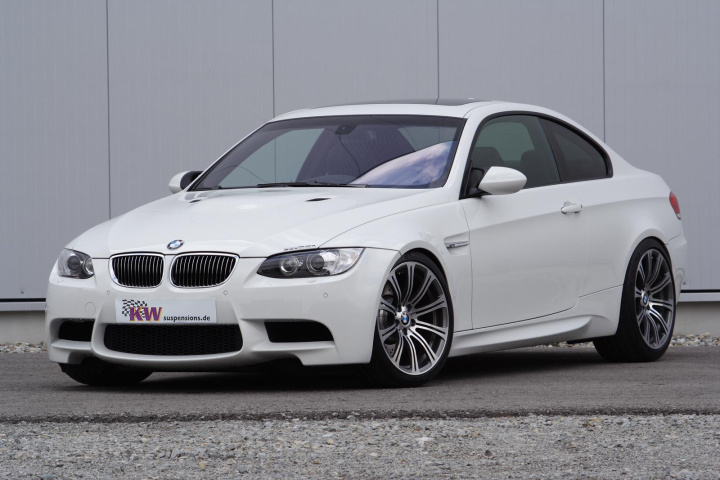

BMW 3 (E90) 390L. 390X. 3L. M3. M3 GTS. M390 02/2004-02/2012 (M3 / 420 HK) Karosstyp: Sedan / Drivning: 2WD
BMW 3 Cabriolet (E93) 392C. 3C. M3. M390 05/2006-12/2013 (M3 / 420 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW 3 Coupe (E92) 390X. 392C. 3C. M-V. M3. M3 GTS. M390 01/2005-12/2013 (M3 / 420 HK) Karosstyp: Coupé / Drivning: 2WD
Wheel loads, vehicle weight and chassis reinforcements (increased body stiffness) can all be taken into consideration with adjustment capabilities of the V4 Clubsport. Similar to KW Competition 3-way coilovers, low-speed and high-speed compression adjustment is done via KW''s patented two-valve control on the reservoir.

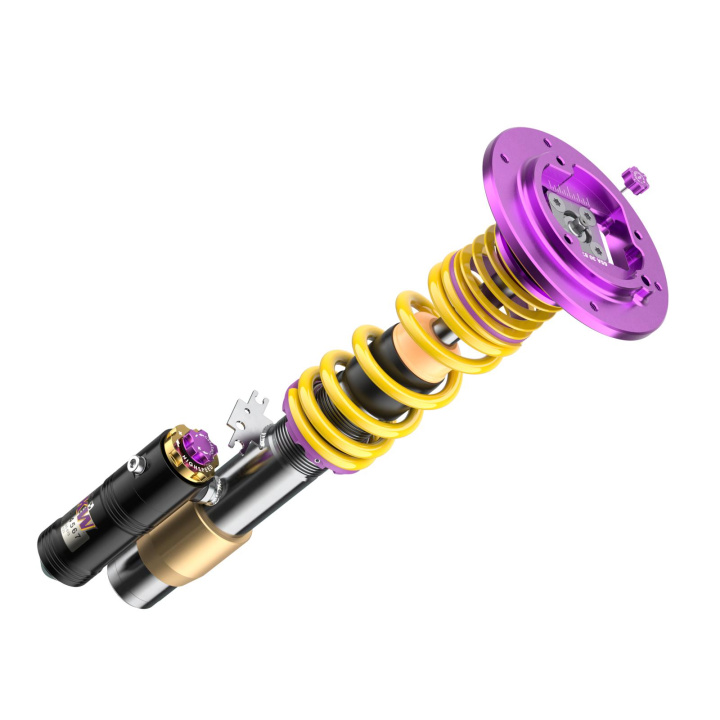

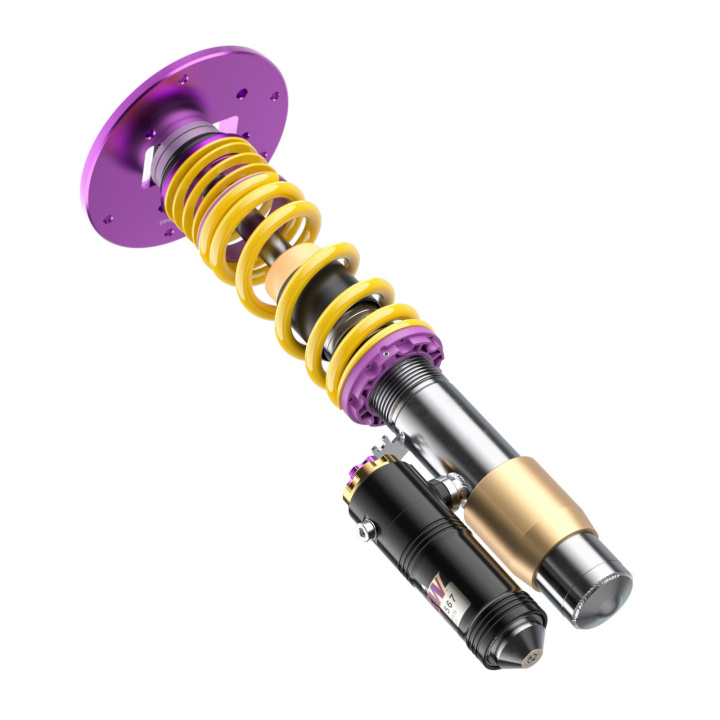

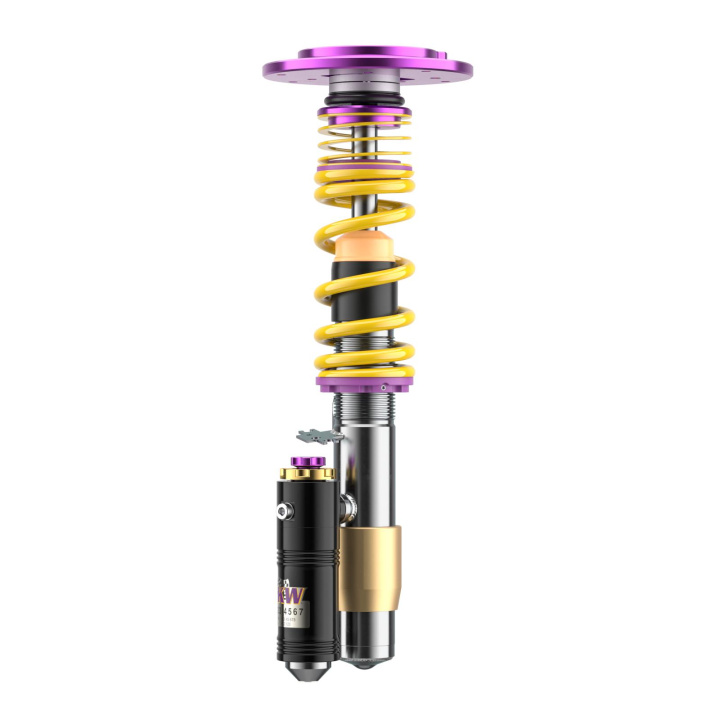

By hand, you can vary the low-speed compression damping with six precise clicks at the purple adjustment wheel. The gold adjustment wheel allows the user to change the high-speed compression damping with 14 precise clicks. Rebound adjust is provided with 16 adjustable clicks providing a noticeable change from the rebound adjustment setting. A reduction in rebound forces provides a more comfortable ride quality suitable for highway driving.
16 precise clicks in rebound adjustment dampening
Adjustable compression damping with 6 clicks in low-speed range and 14 precise clicks in the high-speed range
Continuous lowering
TÜV-tested adjustment range
High-quality components for long-term durability
Independent damping force adjustability with aluminum spherical bearing top mounts available
