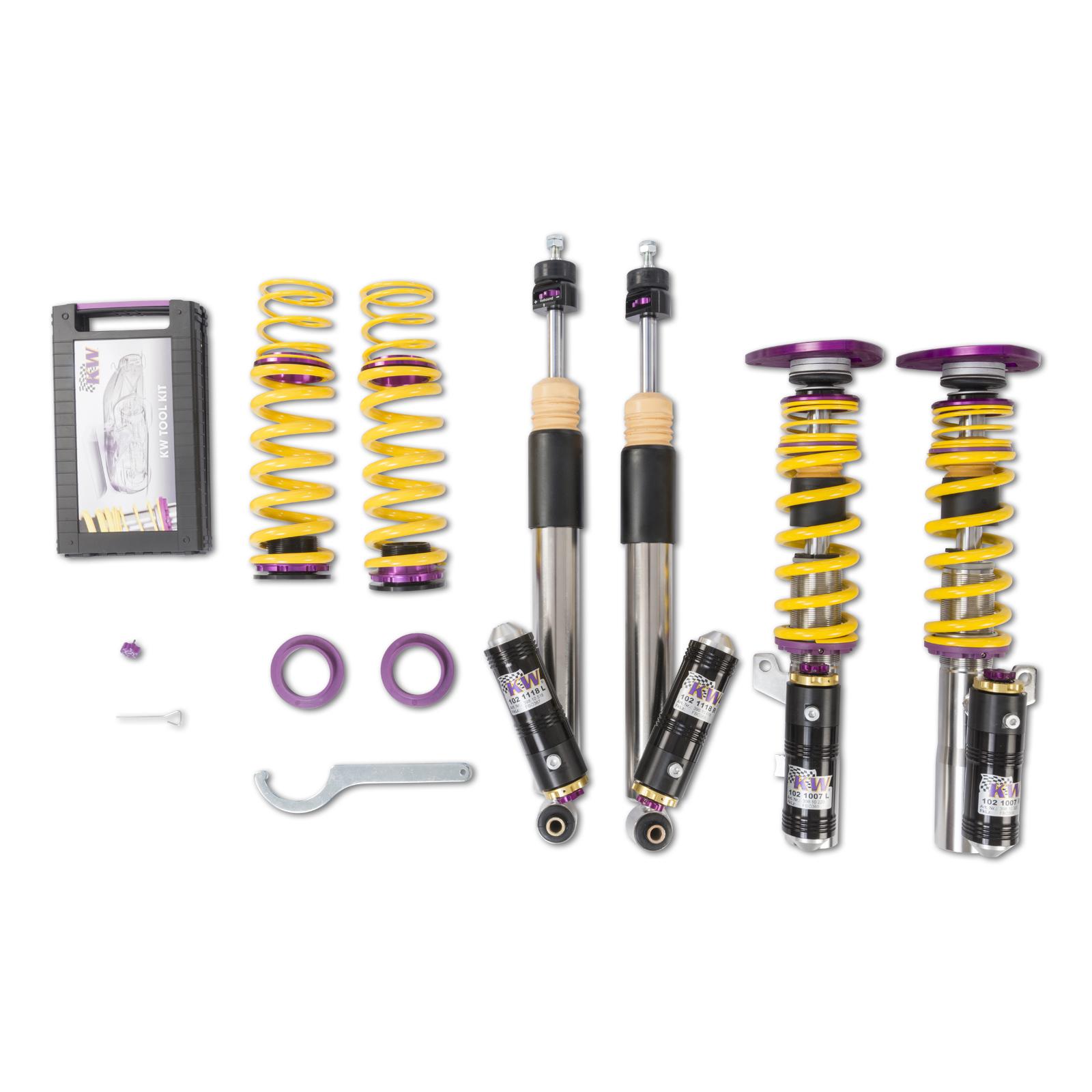

KW Suspension V4 Clubsport 397102AK
Note:

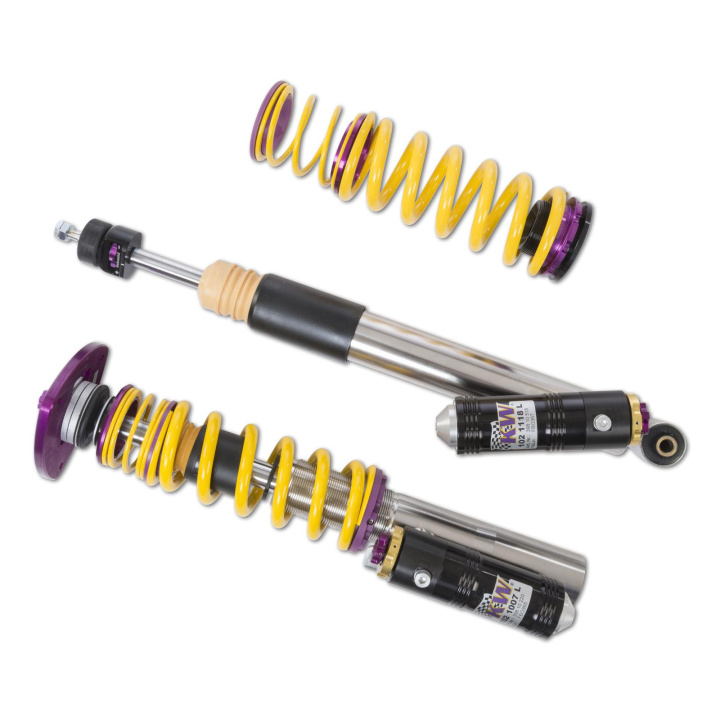

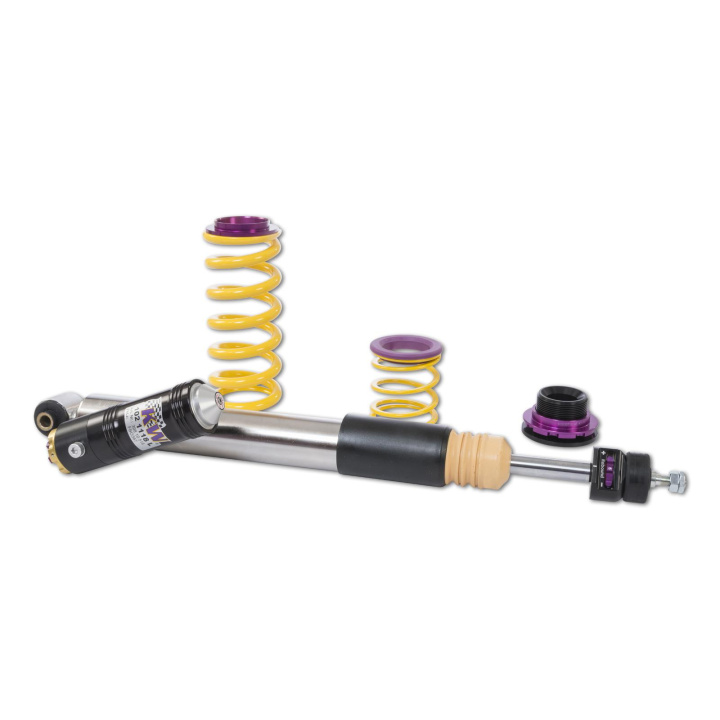

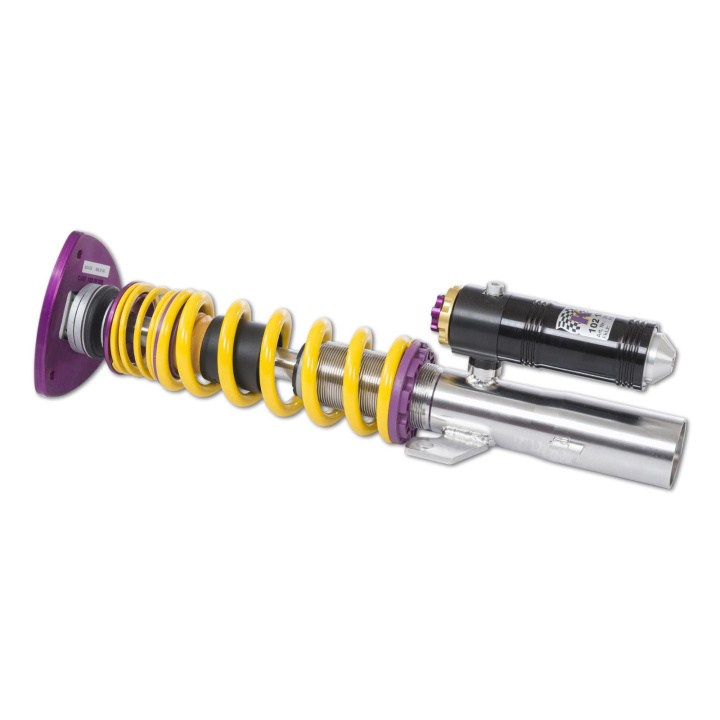

Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
Fits:
AUDI A3 Limousine (8V) 8VS. 8VM 05/2013- (RS3 quattro / 400 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A3 Sportback (8V) 8VA. 8VF 09/2012- (RS3 quattro / 367 HK) Karosstyp: Hatchback / Drivning: 4WD
AUDI A3 Sportback (8V) 8VA. 8VF 09/2012- (RS3 quattro / 400 HK) Karosstyp: Hatchback / Drivning: 4WD

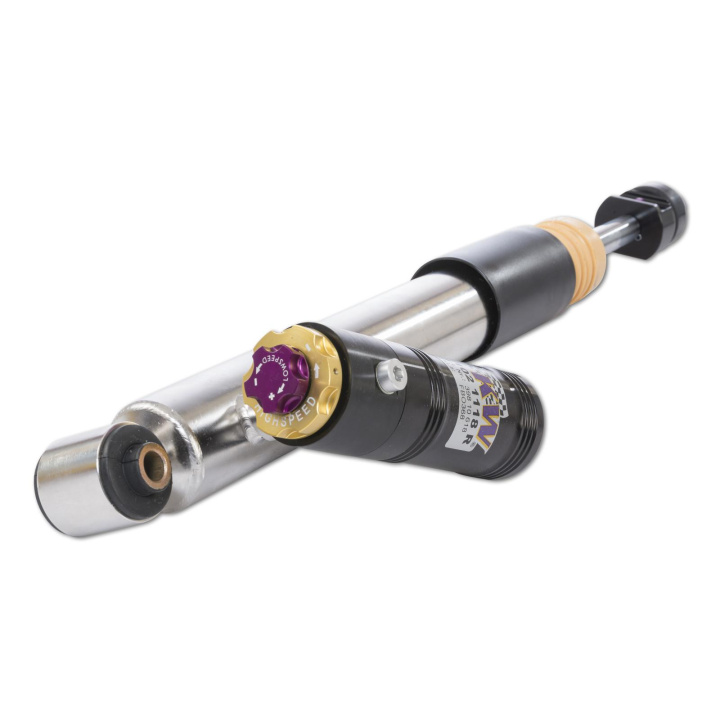

Wheel loads, vehicle weight and chassis reinforcements (increased body stiffness) can all be taken into consideration with adjustment capabilities of the V4 Clubsport. Similar to KW Competition 3-way coilovers, low-speed and high-speed compression adjustment is done via KW''s patented two-valve control on the reservoir.

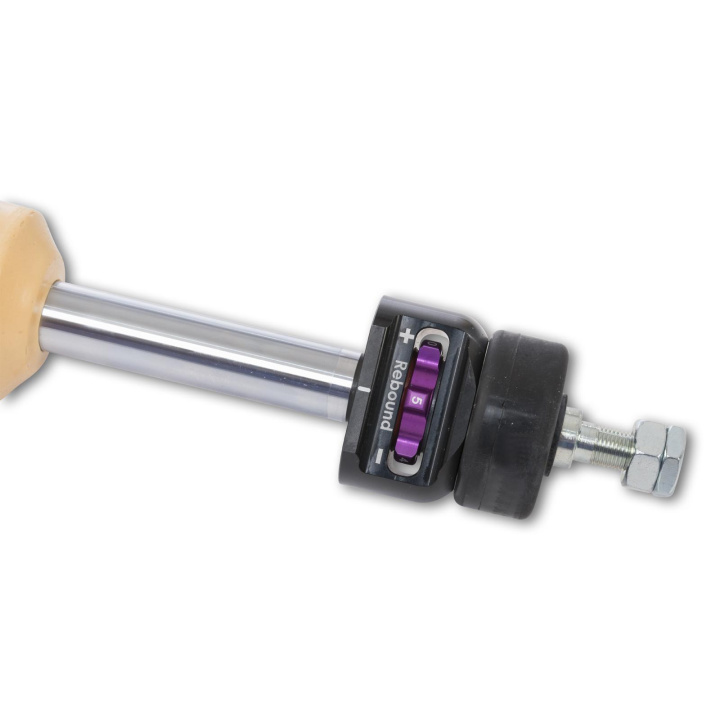

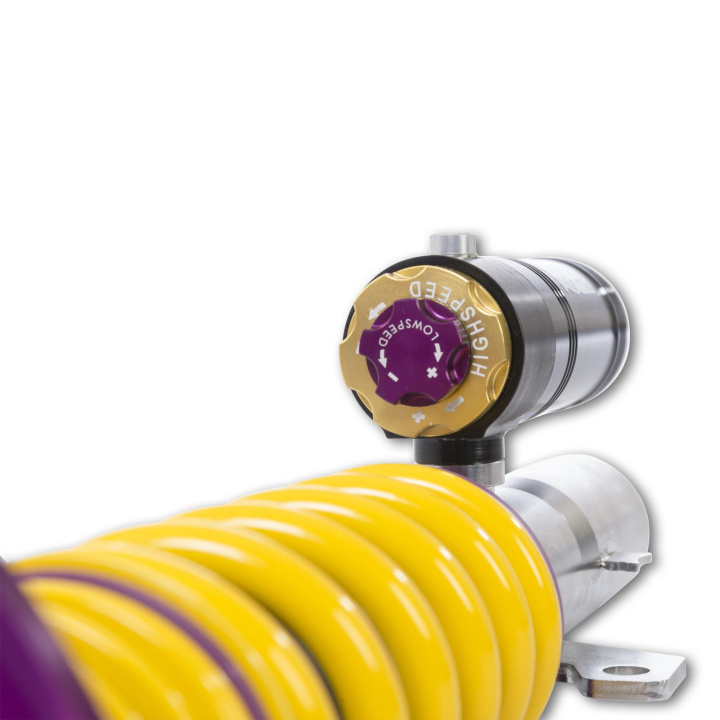

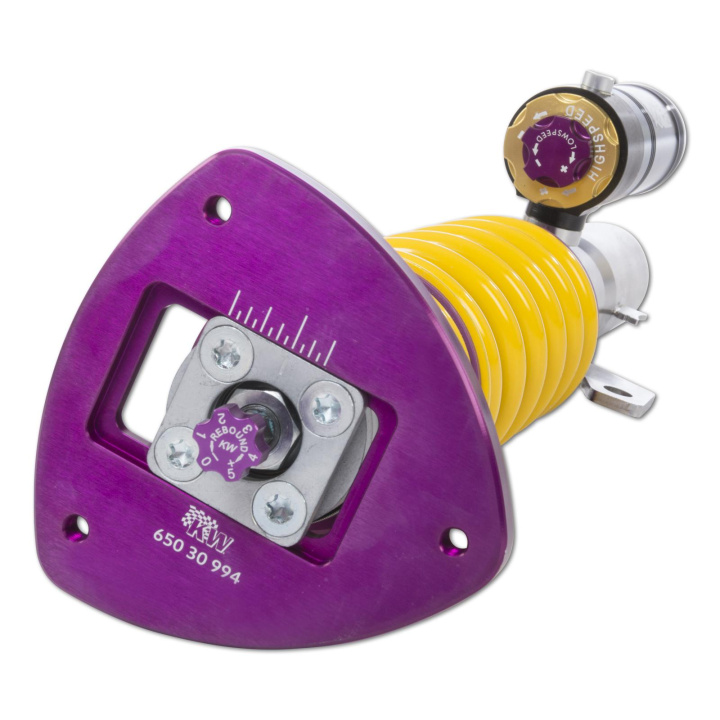

By hand, you can vary the low-speed compression damping with six precise clicks at the purple adjustment wheel. The gold adjustment wheel allows the user to change the high-speed compression damping with 14 precise clicks. Rebound adjust is provided with 16 adjustable clicks providing a noticeable change from the rebound adjustment setting. A reduction in rebound forces provides a more comfortable ride quality suitable for highway driving.
16 precise clicks in rebound adjustment dampening
Adjustable compression damping with 6 clicks in low-speed range and 14 precise clicks in the high-speed range
Continuous lowering
TÜV-tested adjustment range
High-quality components for long-term durability
Independent damping force adjustability with aluminum spherical bearing top mounts available
