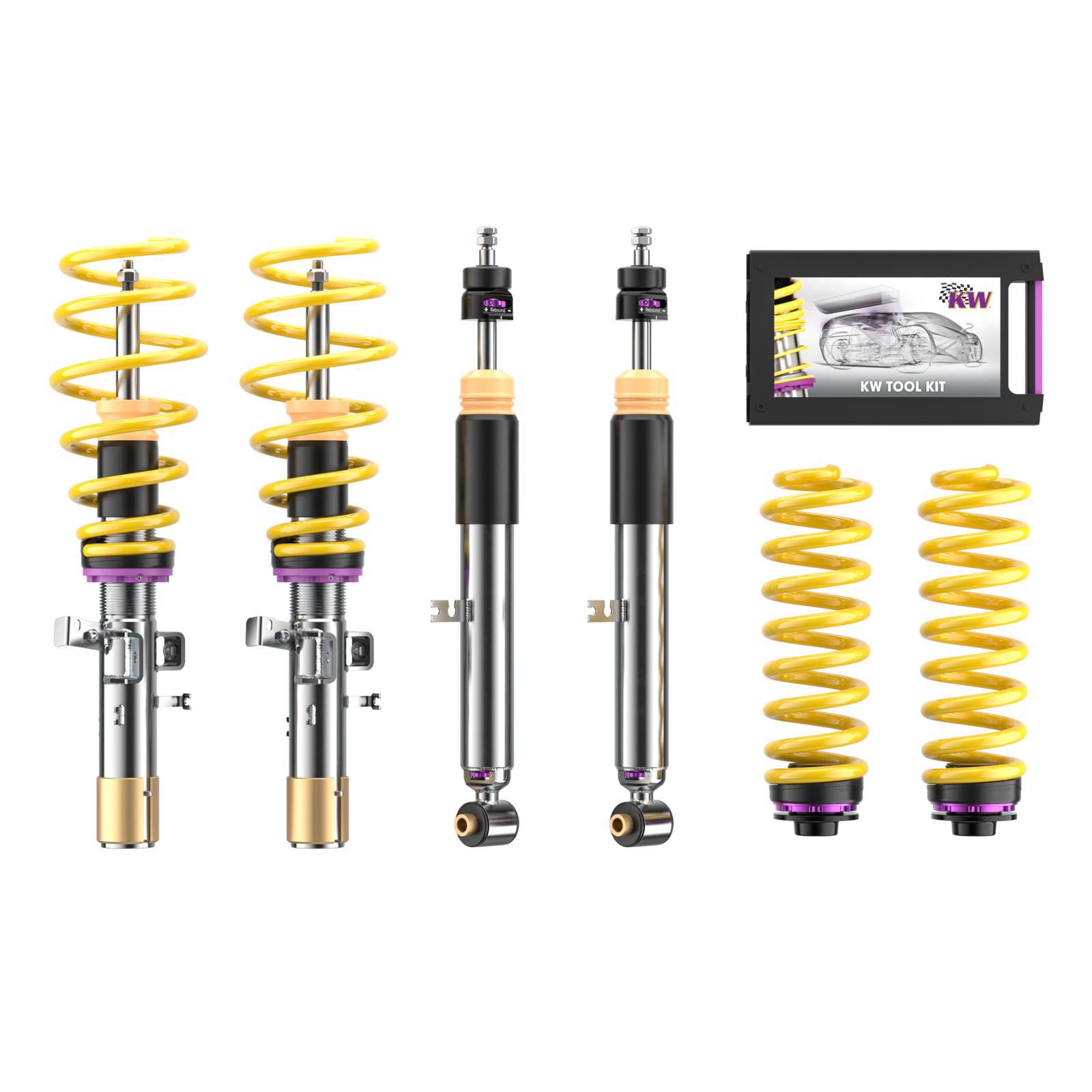

KW Suspension V3 Leveling 35208100BN
Note:

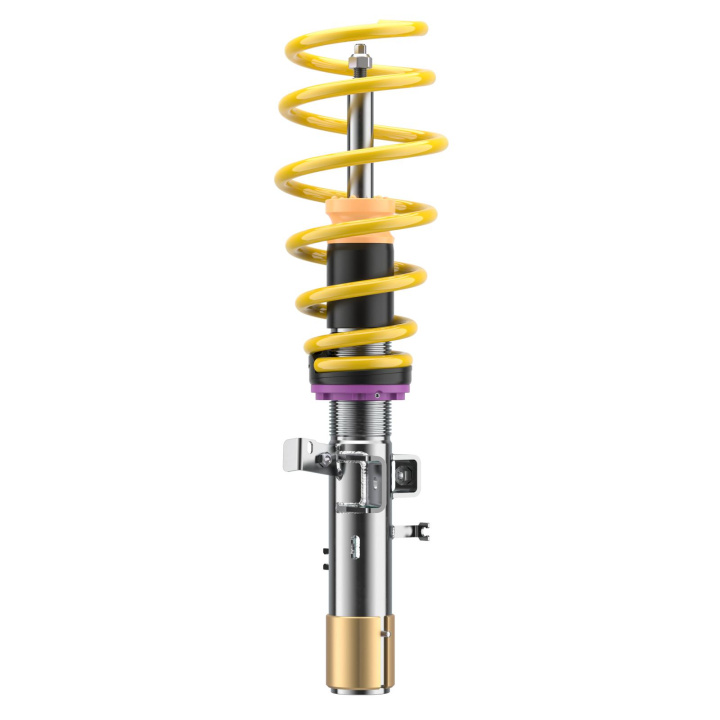

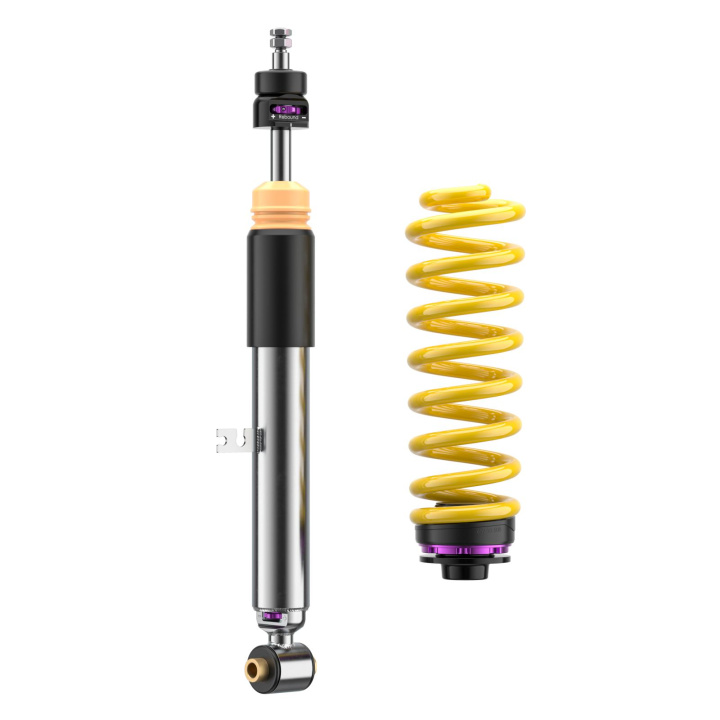

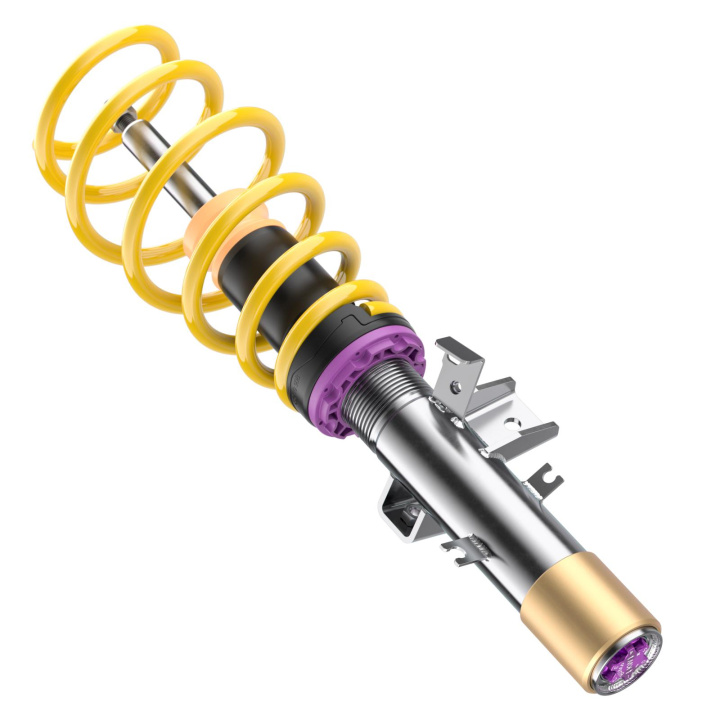

Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list
Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
only for cars with damper diameter 48,5mm (not 50mm) on the front axle
Fits:
AUDI A4 Avant (B9) B8. 8W5 08/2015- (2.0 TDI quattro / 150 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B9) B8. 8W5 08/2015- (2.0 TDI quattro / 163 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B9) B8. 8W5 08/2015- (2.0 TDI quattro / 190 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B9) B8. 8W5 08/2015- (2.0 TFSI Mild Hybrid quattro / 252 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B9) B8. 8W5 08/2015- (2.0 TFSI quattro / 249 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B9) B8. 8W5 08/2015- (2.0 TFSI quattro / 252 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B9) B8. 8W5 08/2015- (40 TDI Mild Hybrid quattro / 204 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B9) B8. 8W5 08/2015- (40 TDI quattro / 190 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B9) B8. 8W5 08/2015- (40 TFSI Mild Hybrid quattro / 204 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B9) B8. 8W5 08/2015- (45 TFSI Mild Hybrid quattro / 245 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B9) B8. 8W5 08/2015- (45 TFSI Mild Hybrid quattro / 249 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B9) B8. 8W5 08/2015- (45 TFSI Mild Hybrid quattro / 265 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A5 Sportback (B8) F5A 06/2016- (2.0 TDI quattro / 150 HK) Karosstyp: Hatchback / Drivning: 4WD
AUDI A5 Sportback (B8) F5A 06/2016- (2.0 TDI quattro / 190 HK) Karosstyp: Hatchback / Drivning: 4WD
AUDI A5 Sportback (B8) F5A 06/2016- (2.0 TFSI Mild Hybrid quattro / 252 HK) Karosstyp: Hatchback / Drivning: 4WD
AUDI A5 Sportback (B8) F5A 06/2016- (2.0 TFSI quattro / 249 HK) Karosstyp: Hatchback / Drivning: 4WD
AUDI A5 Sportback (B8) F5A 06/2016- (2.0 TFSI quattro / 252 HK) Karosstyp: Hatchback / Drivning: 4WD
AUDI A5 Sportback (B8) F5A 06/2016- (40 TDI Mild Hybrid quattro / 204 HK) Karosstyp: Hatchback / Drivning: 4WD
AUDI A5 Sportback (B8) F5A 06/2016- (40 TDI quattro / 190 HK) Karosstyp: Hatchback / Drivning: 4WD
AUDI A5 Sportback (B8) F5A 06/2016- (40 TFSI Mild Hybrid quattro / 204 HK) Karosstyp: Hatchback / Drivning: 4WD
AUDI A5 Sportback (B8) F5A 06/2016- (40 TFSI quattro / 204 HK) Karosstyp: Hatchback / Drivning: 4WD
AUDI A5 Sportback (B8) F5A 06/2016- (45 TFSI Mild Hybrid quattro / 245 HK) Karosstyp: Hatchback / Drivning: 4WD
AUDI A5 Sportback (B8) F5A 06/2016- (45 TFSI Mild Hybrid quattro / 265 HK) Karosstyp: Hatchback / Drivning: 4WD
AUDI A5 Sportback (B8) F5A 06/2016- (45 TFSI quattro / 265 HK) Karosstyp: Hatchback / Drivning: 4WD
Invisible - but you can feel it!
The KW Leveling suspensions are ideal for drivers who are not looking for maximum lowering, but seeking the driving dynamics and comfort of a KW Coilover suspension in combination with the almost original manufacturer’s series floor clearance.
The KW Leveling suspensions focus on the combination of increased driving dynamics and comfort in connection with a minimum lowering or, if desired, raising of the suspension. The KW Leveling suspensions are the ideal retrofit suspensions for frequent drivers on poorly developed roads or drivers that use their car mainly in metropolises and urban areas than have numerous speed bumps. The progressive suspension springs are designed to give their spring rate a plus in driving comfort. Accordingly, the KW Leveling suspensions have an adjustable, comfort-oriented basic damper tuning. If required, the KW leveling enables an adapted level regulation in the range of + 5 - 20 mm.
The KW V3 Leveling suspension is the ideal retrofit option for drivers who are looking for everyday practicality, increased rolling comfort, and sportiness. The separately adjustable dampers in compression and rebound with their TVR-A and TVC-A technology allow extensive damper tuning. This makes it easy to additionally influence the steering behavior, directional stability, tire grip, and handling characteristics significantly for safe control at the limit and increased driving comfort.
- Rebound and compression damping adjustable damper technology
- Stainless steel technology inox-line
- Individual, continous level regulation
- tested adjustment range
- High quality components for a long life
- Complete documentation for an easy handling
- Adjustable rebound damping with 16 exact clicks
- Adjustable compression damping with 12 exact clicks
- Unique, independent from each other working damping force adjustment
