351 Aluminum Block 9.2-Inch Deck Ford Racing

Name: 351 Aluminum Block 9.2-Inch Deck Ford Racing
Brand: Ford Performance
SKU: frpM-6010-Z35192
Price: 11419 EUR
Availability: InStock

Article nr:

frpM-6010-Z35192

Uses Standard Windsor Timing Chain/Chain Cover/Oil Pan/Oil Pump, 4.110-4.115 in. Bore As Delivered; Cast Iron Sleeves 4.125 in., 4-Bolt Main on 2-3-4 Main Caps; 2-Bolt Main on 1/5 Main Caps, 9.2 in. Deck; 2.75 in Crankshaft Main Journal Dia., 2.9415-2.9425 in. Dia. Finished Main Bearing Bore, Uses Cam Bearings M-6261-J351 or M-6261-R351, High Strength Aluminum Block; 356-T6 Grade, 2.2032 - 2.2052-in. Dia. Cam Bearing Bores, Lifter Bores Finished 0.8753-0.8768 in., 2.75 in Crankshaft Main Journal Dia., 4.110-4.115 in. Bore As Delivered, 4-Bolt Main on 2-3-4 Main Caps, High Strength Aluminum Block, 2-Bolt Main on 1/5 Main Caps, Cast Iron Sleeves 4.125 in., Maximum stroke 4.000 in., Weighs 106 lbs., 356-T6 Grade, 9.2 in. Deck

Delivery: Special order

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
Uses Standard Windsor Timing Chain/Chain Cover/Oil Pan/Oil Pump, 4.110-4.115 in. Bore As Delivered; Cast Iron Sleeves 4.125 in., 4-Bolt Main on 2-3-4 Main Caps; 2-Bolt Main on 1/5 Main Caps, 9.2 in. Deck; 2.75 in Crankshaft Main Journal Dia., 2.9415-2.9425 in. Dia. Finished Main Bearing Bore, Uses Cam Bearings M-6261-J351 or M-6261-R351, High Strength Aluminum Block; 356-T6 Grade, 2.2032 - 2.2052-in. Dia. Cam Bearing Bores, Lifter Bores Finished 0.8753-0.8768 in., 2.75 in Crankshaft Main Journal Dia., 4.110-4.115 in. Bore As Delivered, 4-Bolt Main on 2-3-4 Main Caps, High Strength Aluminum Block, 2-Bolt Main on 1/5 Main Caps, Cast Iron Sleeves 4.125 in., Maximum stroke 4.000 in., Weighs 106 lbs., 356-T6 Grade, 9.2 in. Deck

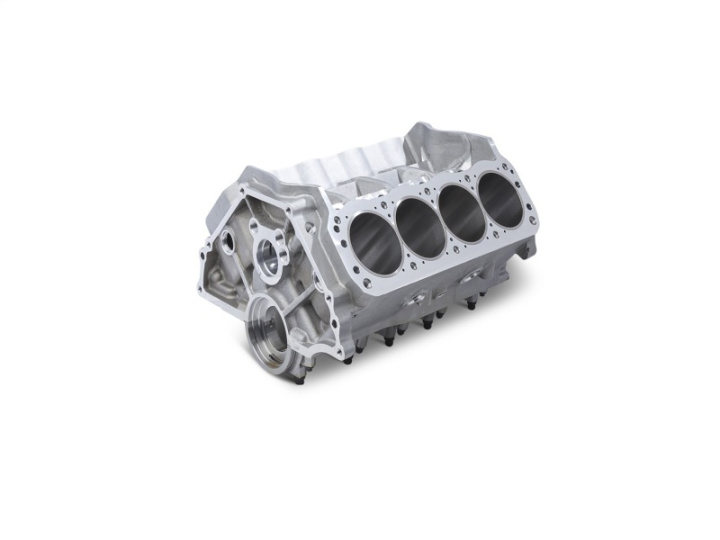

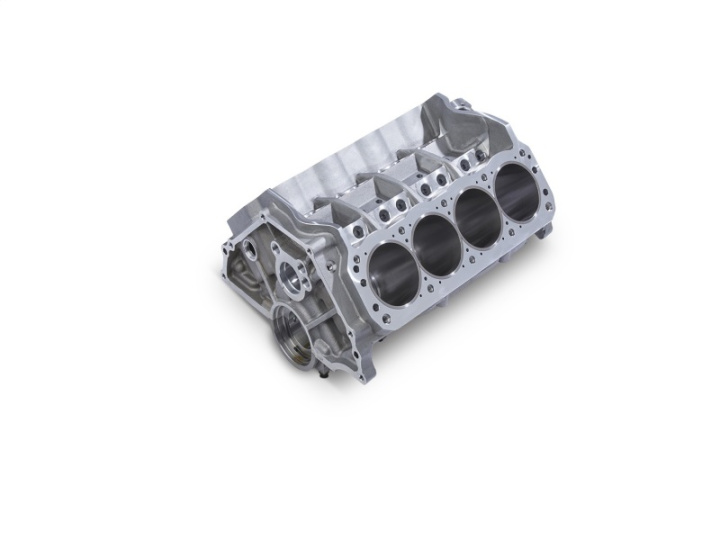

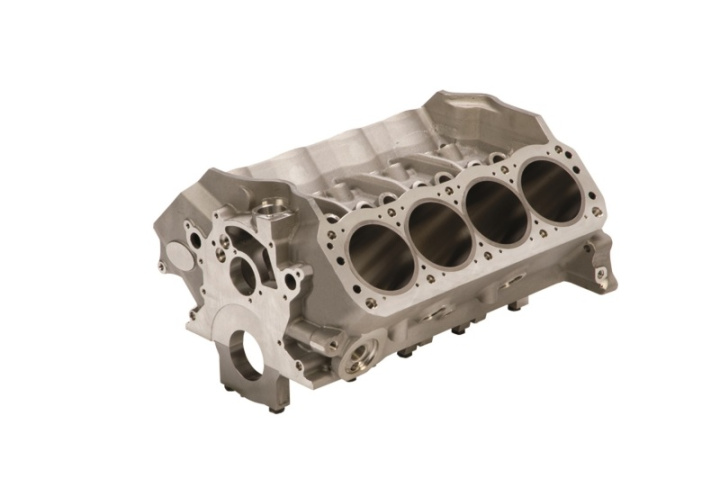

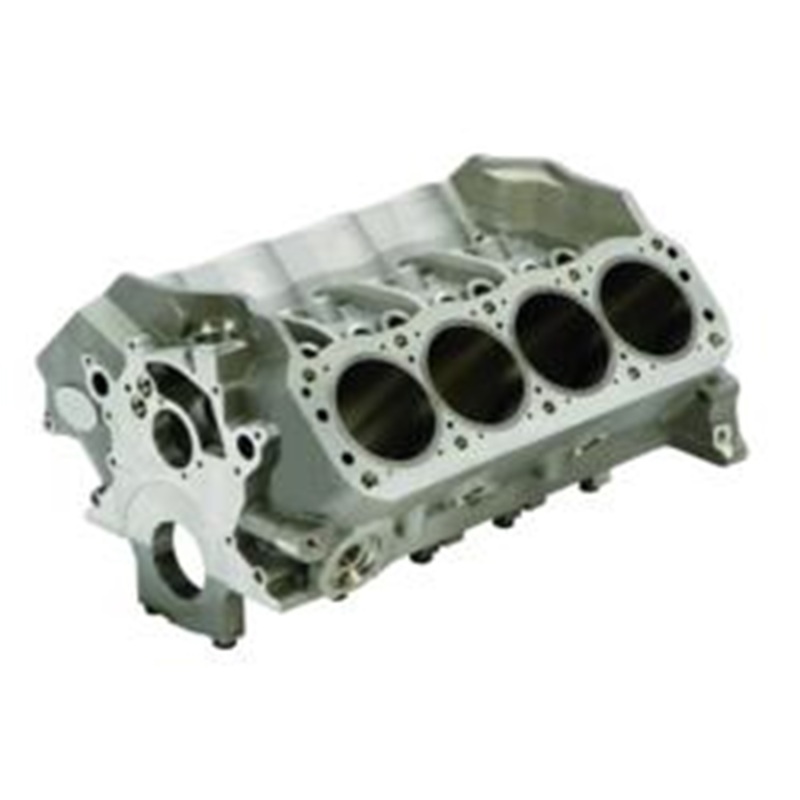

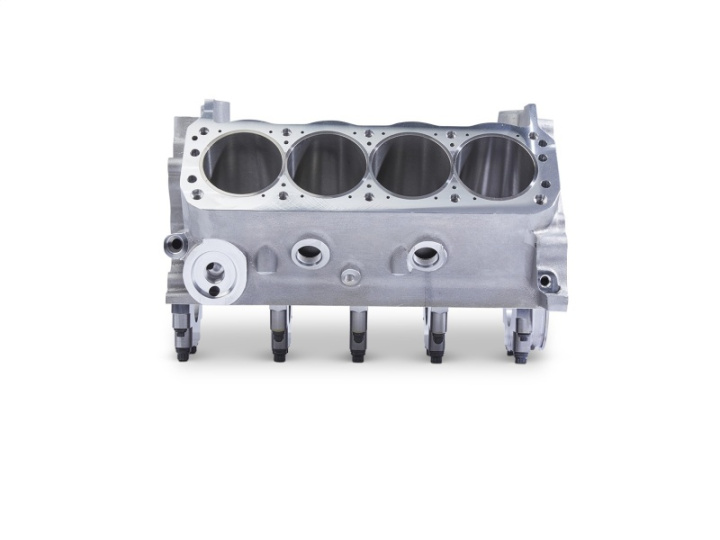

Ford Performance has added 9.2 in. deck height version of its Z351 aluminum Windsor block to its product line. This new 9.2 in. deck height block is great for smaller displacement builds without the penalty of a taller deck. Like the 9.5 in. deck height version, the block is cast from high strength 356-T6 grade aluminum and uses splayed 4 bolt main caps on #2-3-4 mains. The block is 'user friendly' and designed to use conventional Windsor components like cam, timing chain, timing chain cover, oil pan and oil pump. With a weight of 106 pounds, it's nearly 90 pounds lighter than an iron Ford Performance Race Parts BOSS 351 block., Ford Performance has added 9.2 in. deck height version of its Z351 aluminum Windsor block to its product line. This new 9.2 in. deck height block is great for smaller displacement builds without the penalty of a taller deck. Like the 9.5 in. deck height version, the block is cast from high strength 356-T6 grade aluminum and uses splayed 4 bolt main caps on #2-3-4 mains. The block is 'user friendly' and designed to use conventional Windsor components like cam, timing chain, timing chain cover, oil pan and oil pump. With a weight of 106 pounds, it's nearly 90 pounds lighter than an iron Ford Performance Race Parts BOSS 351 block.

Product video

Technical specification

Article nr:
frpM-6010-Z35192

Manufacture Partnumber: M-6010-Z35192
Suitable for
Ford Mustang 3.3l L6 1969
Ford Mustang 3.3l L6 1970
Ford Mustang 4.1l L6 1969
Ford Mustang 4.1l L6 1970
Ford Mustang 5.0l V8 1969
Ford Mustang 5.0l V8 1970
Ford Mustang 5.8l V8 1969
Ford Mustang 5.8l V8 1970
Ford Mustang 6.4l V8 1969
Ford Mustang 7.0l V8 1969
Ford Mustang 7.0l V8 1970
Brand
Ford Performance is the own department with aftermarket parts from Ford. Here you can find original parts from the upgrade catalog for Ford models.
We offer home delivery of all Ford Performance parts, everything from engines to compressors and styling.
