ST Suspensions XA 18220016
Note:
In combination with original wheels and tyres, wheelspacers might be necessary.
Fits:
BMW Z3 Coupe (E36) MR/C. R/C 04/1997-06/2003 (2.8 i / 193 HK) Karosstyp: Coupé / Drivning: 2WD
BMW Z3 Coupe (E36) MR/C. R/C 04/1997-06/2003 (3.0 i / 228 HK) Karosstyp: Coupé / Drivning: 2WD
BMW Z3 Coupe (E36) MR/C. R/C 04/1997-06/2003 (3.0 i / 231 HK) Karosstyp: Coupé / Drivning: 2WD
BMW Z3 Roadster (E36) MR/C. R/C 10/1995-01/2003 (1.8 i / 116 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z3 Roadster (E36) MR/C. R/C 10/1995-01/2003 (1.9 i / 116 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z3 Roadster (E36) MR/C. R/C 10/1995-01/2003 (1.9 i / 118 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z3 Roadster (E36) MR/C. R/C 10/1995-01/2003 (1.9 i / 140 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z3 Roadster (E36) MR/C. R/C 10/1995-01/2003 (2.0 i / 150 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z3 Roadster (E36) MR/C. R/C 10/1995-01/2003 (2.2 i / 163 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z3 Roadster (E36) MR/C. R/C 10/1995-01/2003 (2.2 i / 170 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z3 Roadster (E36) MR/C. R/C 10/1995-01/2003 (2.5 / 170 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z3 Roadster (E36) MR/C. R/C 10/1995-01/2003 (2.5 i / 192 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z3 Roadster (E36) MR/C. R/C 10/1995-01/2003 (2.8 i / 193 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z3 Roadster (E36) MR/C. R/C 10/1995-01/2003 (3.0 i / 228 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z3 Roadster (E36) MR/C. R/C 10/1995-01/2003 (3.0 i / 231 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z3 Roadster (E36) MR/C. R/C 10/1995-01/2003 (3.2 i / 320 HK) Karosstyp: Cabriolet / Drivning: 2WD
ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.
The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.
External damper adjustment
Latest damping technology for maximum longevity
Reduced system friction for effective damping adjustment
Individual lowering within the tested adjustment range
Front and rear axle (when possible) with thread adjustment
Galvanized coilover struts with additional coating for an optimized corrosion protection

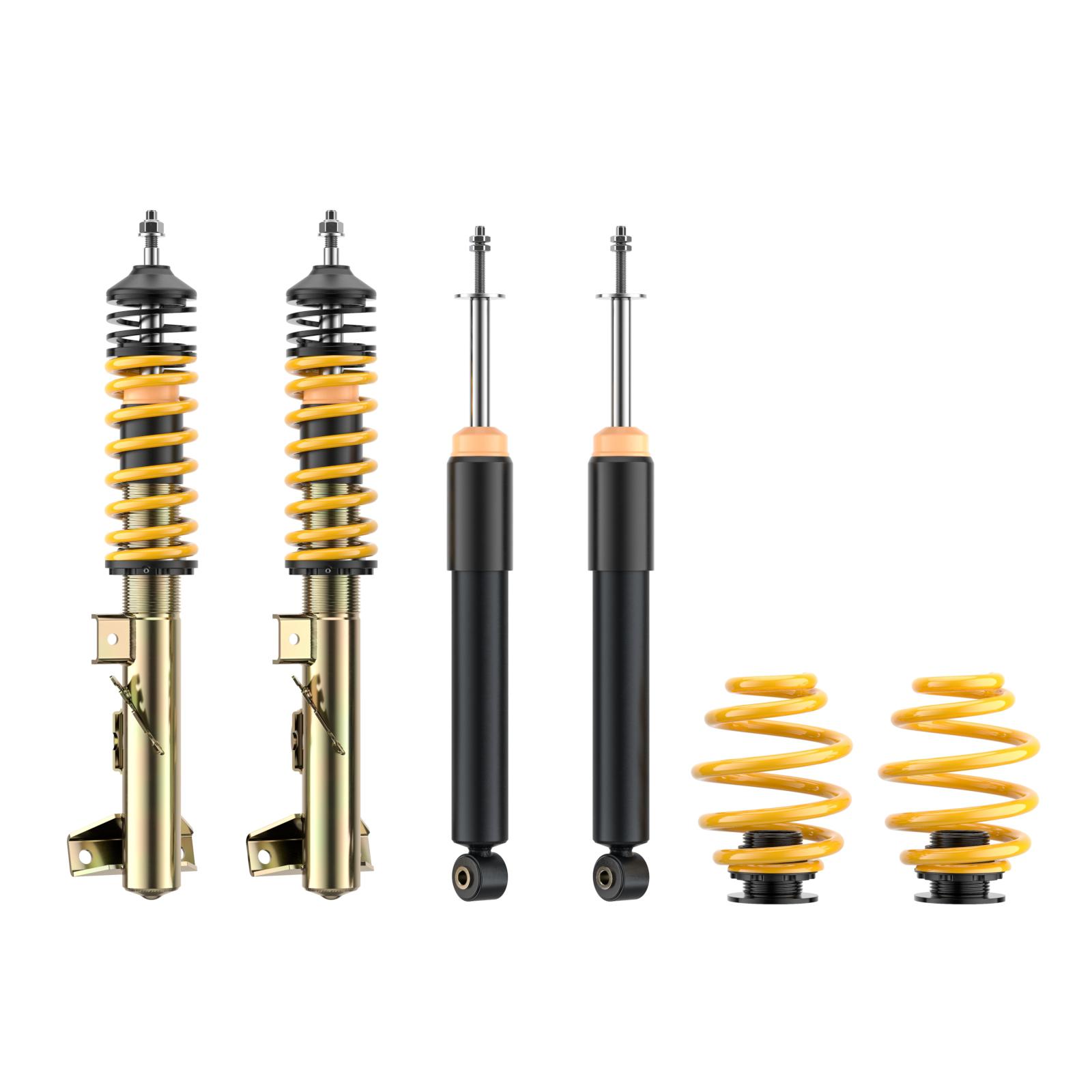

Complete solution with adjustable spring plate, race spring system and bumpers with dust protection
ST Suspensions - Make it yours!
From now on you can customize your ST suspensions coilover kit and adapt it to your individual needs. For example you can select your favorite spring colour out of many options or add an additional marking on the springs. Create your individual spring with an additional spring marking of up to 25 letters which will be printed on a separate winding below the tüv marking. (A-Z and whitespaces is allowed).
