ST Suspensions XA 18210012
Note:
Because of the construction of the car the damping adjustment can only made when the damper is not mounted. By modifying the interior trim this problem can be avoided.
Fits:
AUDI A4 (B5) 8D2 11/1994-12/2001 (1.8 quattro / 116 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A4 (B5) 8D2 11/1994-12/2001 (1.8 quattro / 125 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A4 (B5) 8D2 11/1994-12/2001 (1.8 T quattro / 150 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A4 (B5) 8D2 11/1994-12/2001 (1.8 T quattro / 170 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A4 (B5) 8D2 11/1994-12/2001 (1.8 T quattro / 180 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A4 (B5) 8D2 11/1994-12/2001 (1.9 TDI quattro / 110 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A4 (B5) 8D2 11/1994-12/2001 (1.9 TDI quattro / 116 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A4 (B5) 8D2 11/1994-12/2001 (2.4 quattro / 163 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A4 (B5) 8D2 11/1994-12/2001 (2.4 quattro / 165 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A4 (B5) 8D2 11/1994-12/2001 (2.6 quattro / 150 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A4 (B5) 8D2 11/1994-12/2001 (2.8 quattro / 174 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A4 (B5) 8D2 11/1994-12/2001 (2.8 quattro / 190 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A4 (B5) 8D2 11/1994-12/2001 (2.8 quattro / 193 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI A4 Avant (B5) 8D5. B51 11/1994-12/2002 (1.8 quattro / 116 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B5) 8D5. B51 11/1994-12/2002 (1.8 quattro / 125 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B5) 8D5. B51 11/1994-12/2002 (1.8 T quattro / 150 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B5) 8D5. B51 11/1994-12/2002 (1.8 T quattro / 180 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B5) 8D5. B51 11/1994-12/2002 (1.9 TDI quattro / 110 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B5) 8D5. B51 11/1994-12/2002 (1.9 TDI quattro / 116 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B5) 8D5. B51 11/1994-12/2002 (2.4 quattro / 163 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B5) 8D5. B51 11/1994-12/2002 (2.4 quattro / 165 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B5) 8D5. B51 11/1994-12/2002 (2.6 quattro / 150 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B5) 8D5. B51 11/1994-12/2002 (2.8 quattro / 190 HK) Karosstyp: Kombi / Drivning: 4WD
AUDI A4 Avant (B5) 8D5. B51 11/1994-12/2002 (2.8 quattro / 193 HK) Karosstyp: Kombi / Drivning: 4WD

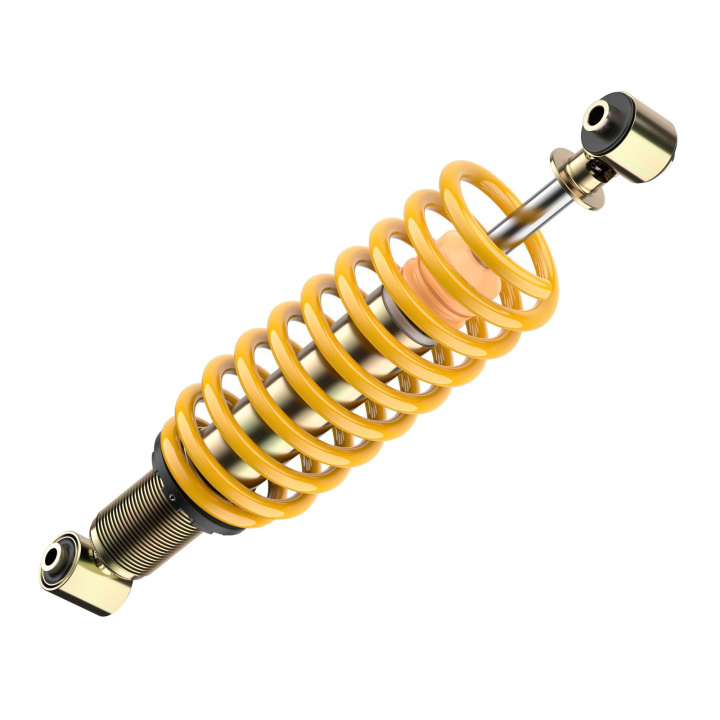

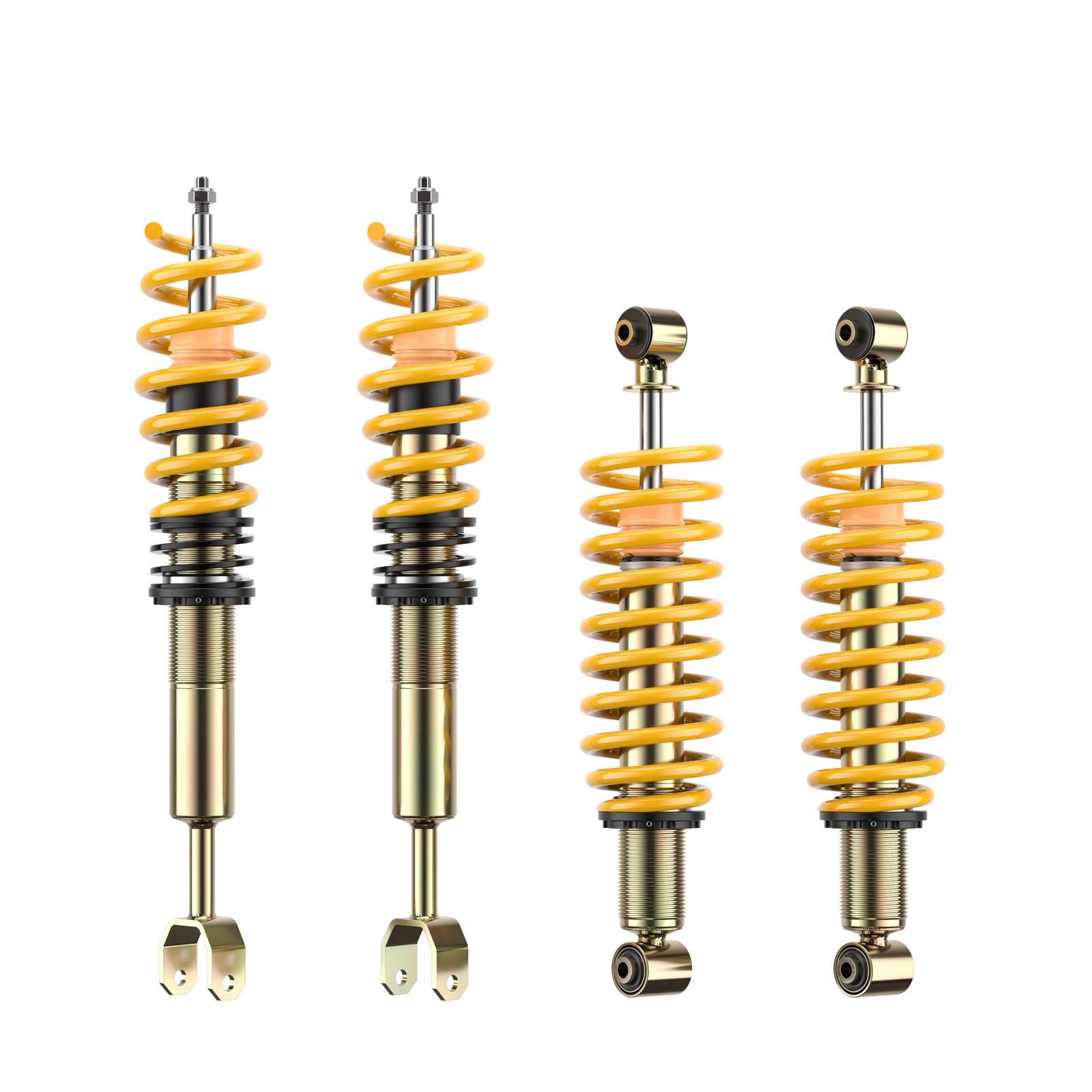

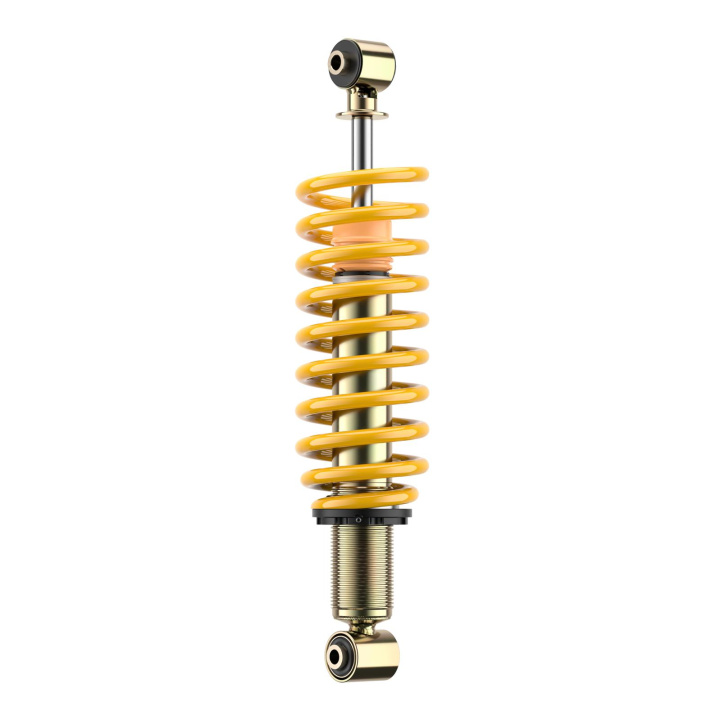

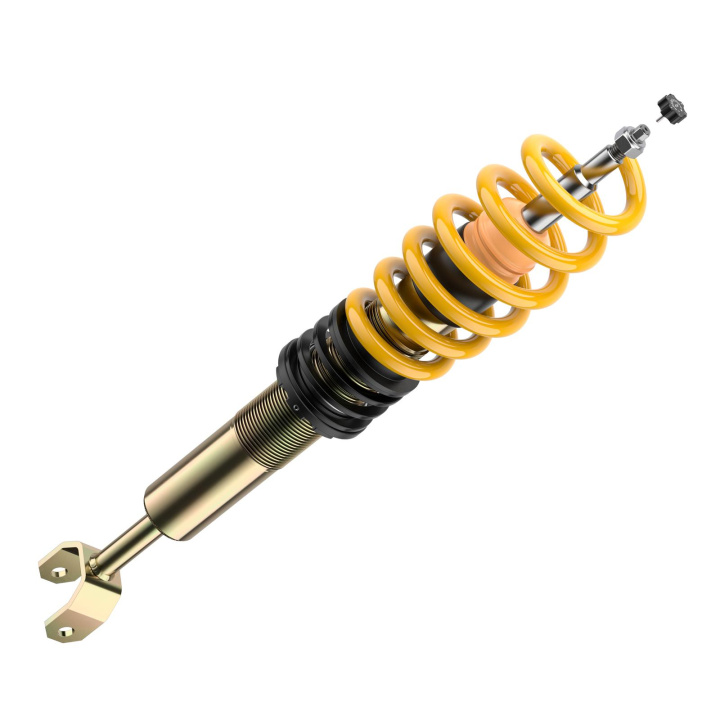

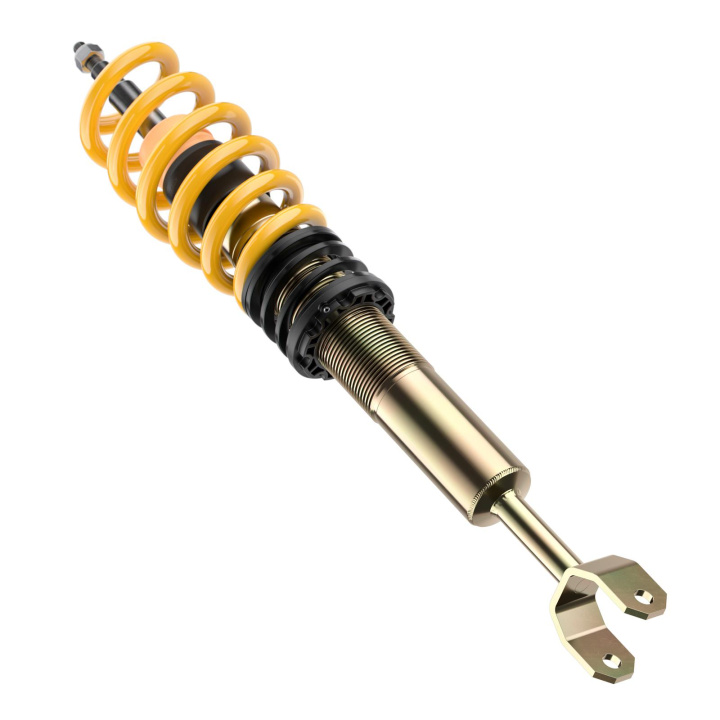

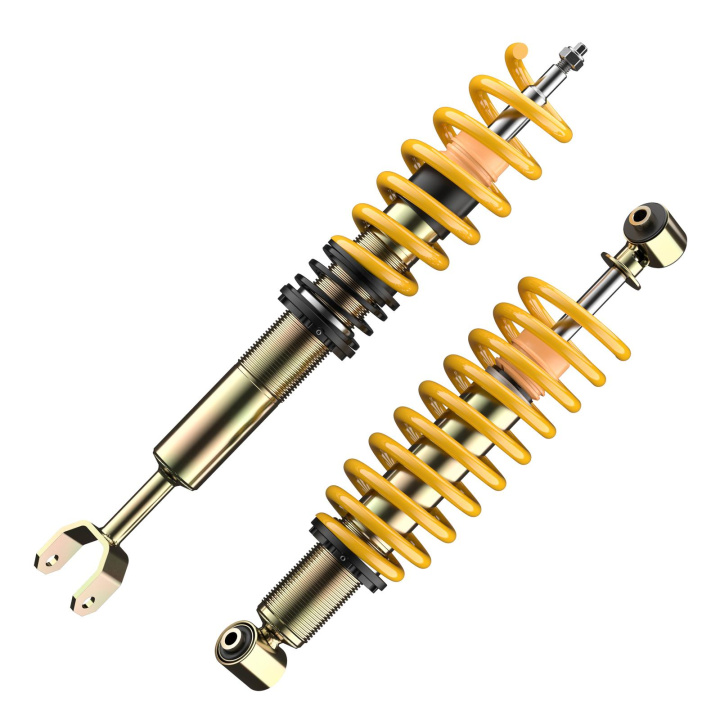

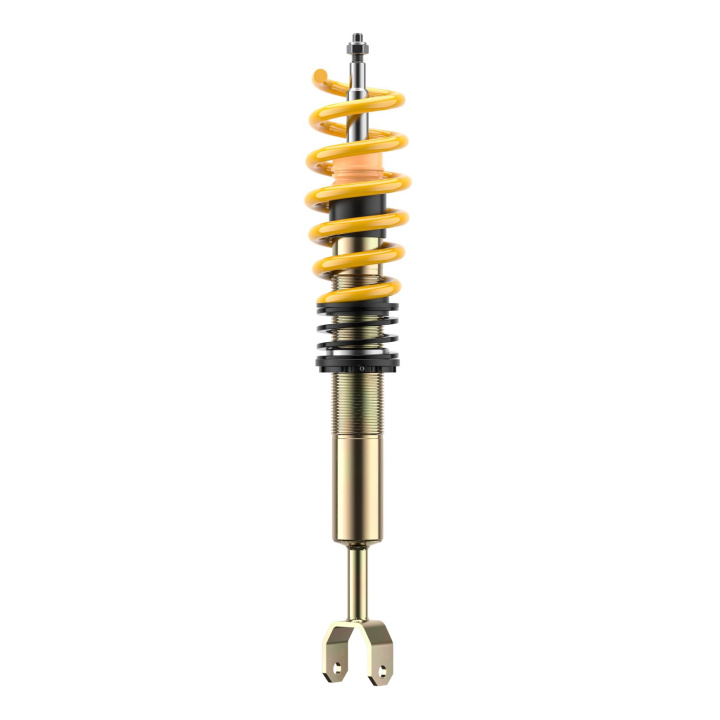

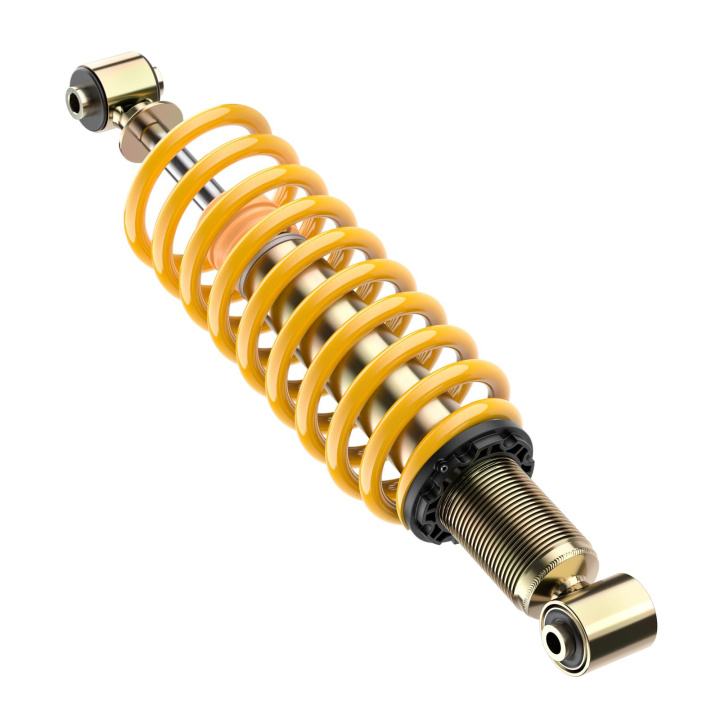

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.
The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.
External damper adjustment
Latest damping technology for maximum longevity
Reduced system friction for effective damping adjustment
Individual lowering within the tested adjustment range
Front and rear axle (when possible) with thread adjustment
Galvanized coilover struts with additional coating for an optimized corrosion protection
Complete solution with adjustable spring plate, race spring system and bumpers with dust protection
ST Suspensions - Make it yours!
From now on you can customize your ST suspensions coilover kit and adapt it to your individual needs. For example you can select your favorite spring colour out of many options or add an additional marking on the springs. Create your individual spring with an additional spring marking of up to 25 letters which will be printed on a separate winding below the tüv marking. (A-Z and whitespaces is allowed).
