ST Suspensions X 13280094
Note:
Only for cars with a clamp diameter of 55 mm on the front axle.
To guarantee at maximum lowering the minimum clearance of the FA indicator light (350 mm) and day headlight (250 mm) beyond STVZO, they have to be modified
At vehicles equipped with electronic damping DCC, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510141.
Fits:
VW SCIROCCO III (13. 137. 138) 05/2008-11/2017 (1.4 TSI / 122 HK) Karosstyp: Coupé / Drivning: 2WD
VW SCIROCCO III (13. 137. 138) 05/2008-11/2017 (1.4 TSI / 125 HK) Karosstyp: Coupé / Drivning: 2WD
VW SCIROCCO III (13. 137. 138) 05/2008-11/2017 (1.4 TSI / 131 HK) Karosstyp: Coupé / Drivning: 2WD
VW SCIROCCO III (13. 137. 138) 05/2008-11/2017 (1.4 TSI / 150 HK) Karosstyp: Coupé / Drivning: 2WD
VW SCIROCCO III (13. 137. 138) 05/2008-11/2017 (1.4 TSI / 160 HK) Karosstyp: Coupé / Drivning: 2WD

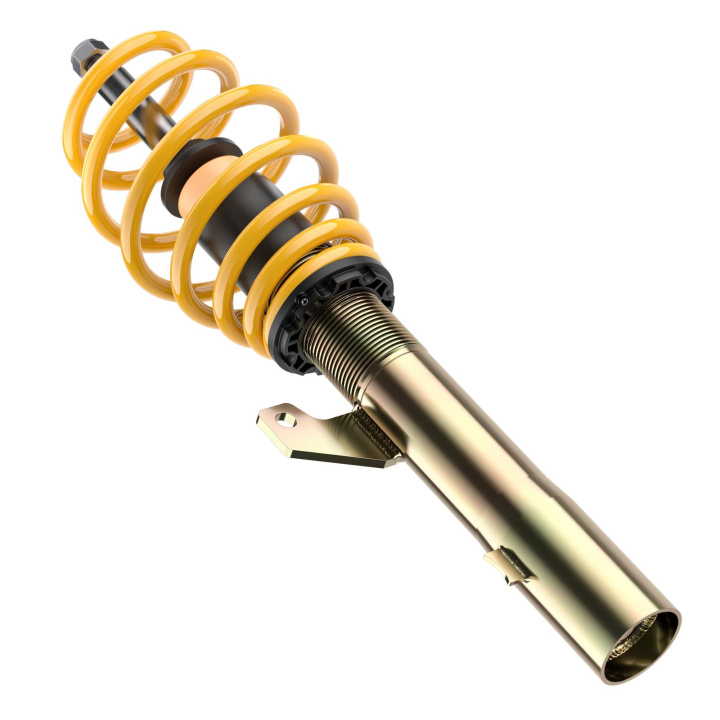

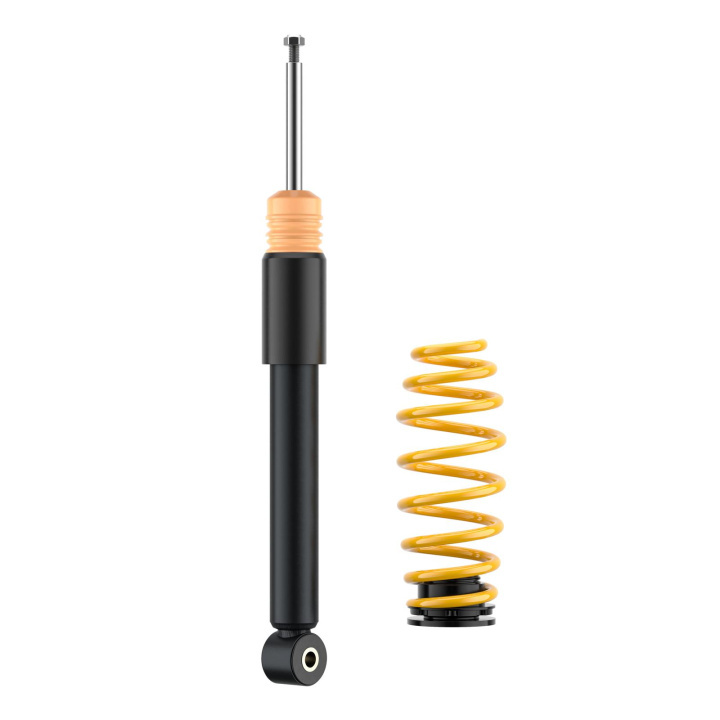

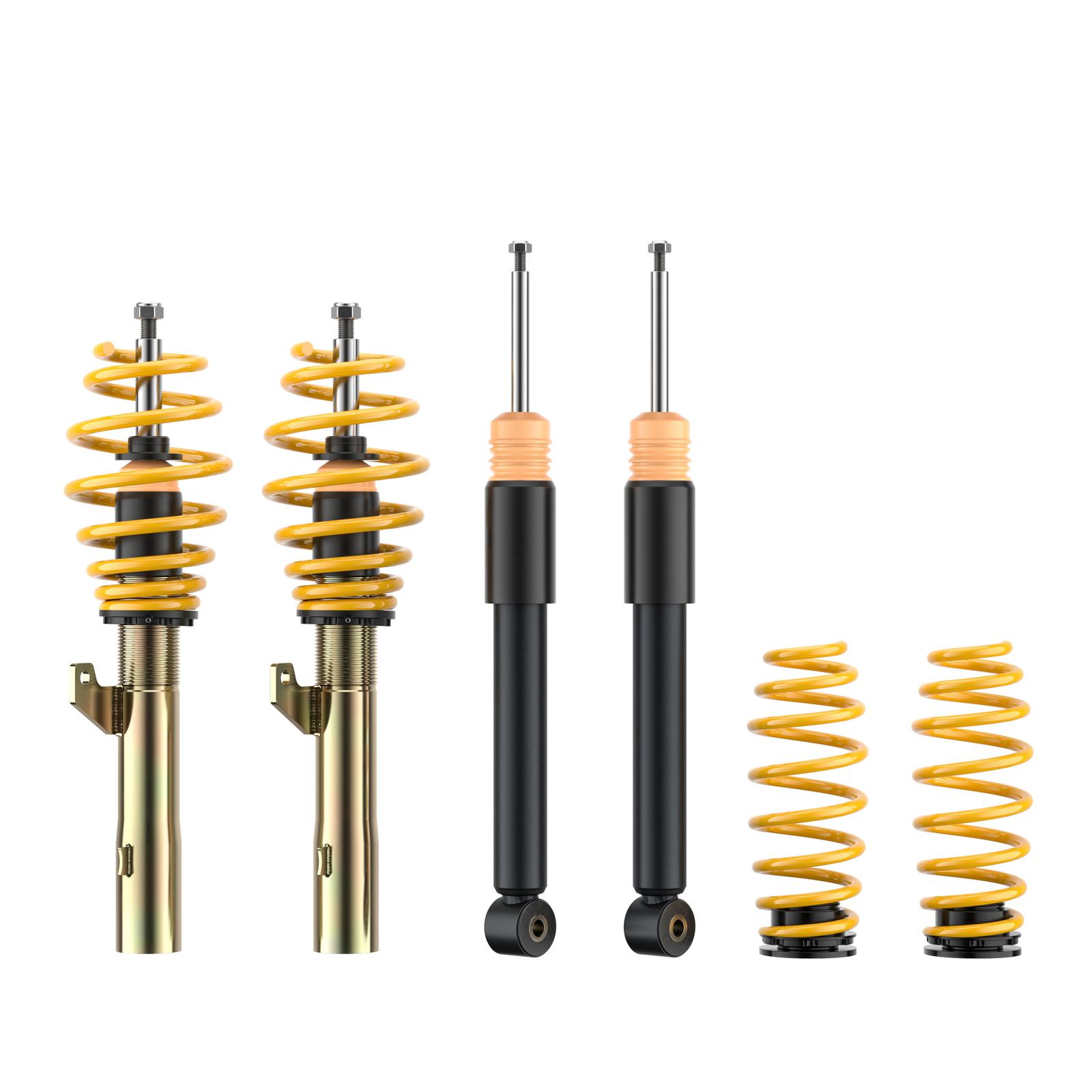

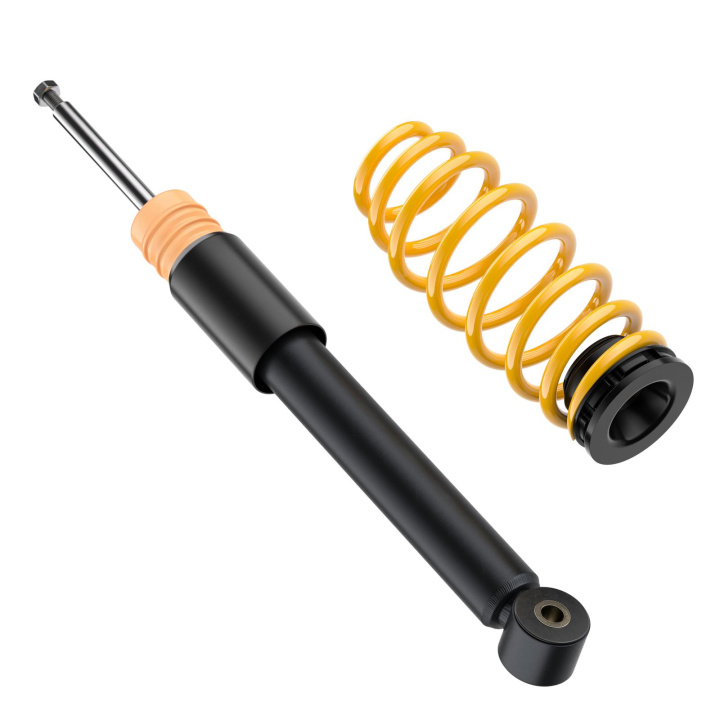

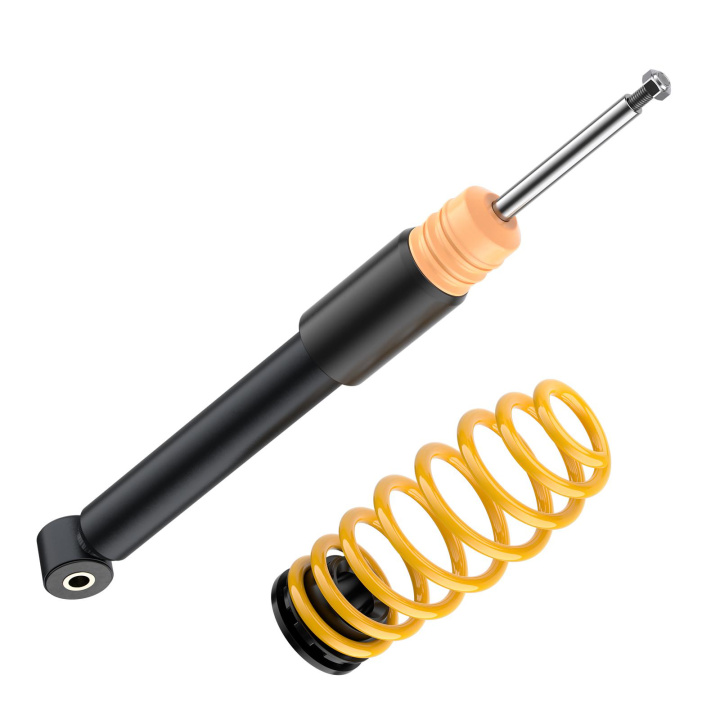

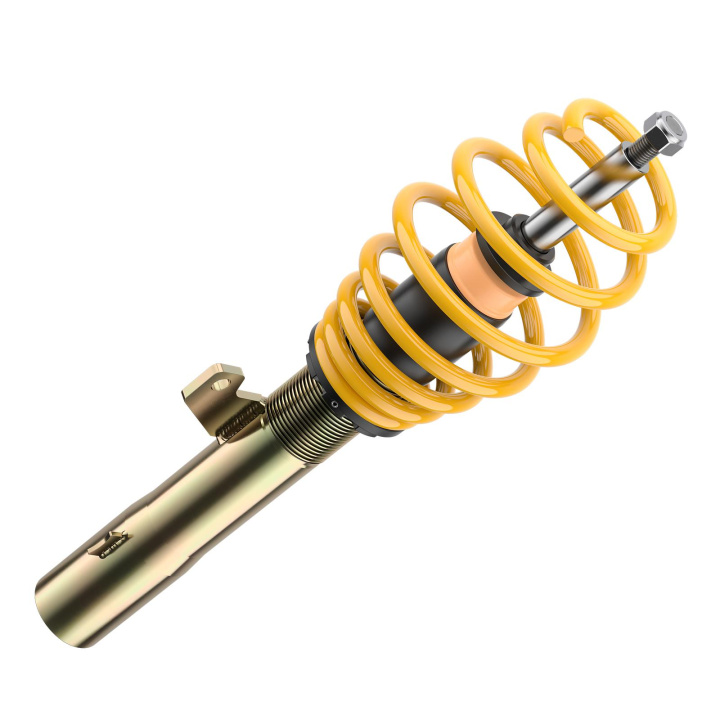

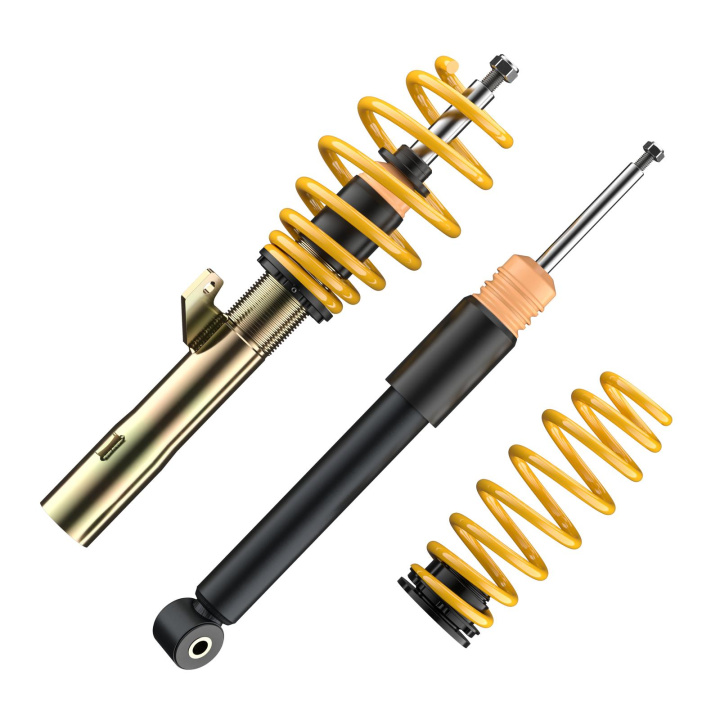

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.
Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).
Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.
Lowering with StTyle: the ST X coilovers
- Individual lowering within the TÜV-tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection
- Complete solution with adjustable spring plate, race spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity
ST Suspensions - Make it yours!
From now on you can customize your ST suspensions coilover kit and adapt it to your individual needs. For example you can select your favorite spring colour out of many options or add an additional marking on the springs. Create your individual spring with an additional spring marking of up to 25 letters which will be printed on a separate winding below the tüv marking. (A-Z and whitespaces is allowed).
