Sporty handling combined with outstanding looks. With factory pre-configured damping
Note:
Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list
Only for cars with a clamp diameter of 55mm on the front axle
Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
Not for cars with electronic damping
Applications:
AUDI Q2 (GA) GAB 06/2016- (2.0 TDI quattro / 150 HK) Karosstyp: SUV / Drivning: 4WD
AUDI Q2 (GA) GAB 06/2016- (2.0 TDI quattro / 190 HK) Karosstyp: SUV / Drivning: 4WD
AUDI Q2 (GA) GAB 06/2016- (2.0 TFSI quattro / 190 HK) Karosstyp: SUV / Drivning: 4WD
AUDI Q2 (GA) GAB 06/2016- (35 TDI quattro / 150 HK) Karosstyp: SUV / Drivning: 4WD
AUDI Q2 (GA) GAB 06/2016- (40 TFSI quattro / 190 HK) Karosstyp: SUV / Drivning: 4WD
AUDI Q2 (GA) GAB 06/2016- (SQ2 TFSI quattro / 301 HK) Karosstyp: SUV / Drivning: 4WD
CUPRA LEON Sportstourer 10/2020- (2.0 TDI / 150 HK) Karosstyp: Kombi / Drivning: 2WD
CUPRA LEON Sportstourer 10/2020- (2.0 TSI / 190 HK) Karosstyp: Kombi / Drivning: 2WD
CUPRA LEON Sportstourer 10/2020- (2.0 TSI / 245 HK) Karosstyp: Kombi / Drivning: 2WD
CUPRA LEON Sportstourer 10/2020- (2.0 TSI / 301 HK) Karosstyp: Kombi / Drivning: 2WD
SEAT LEON Sportstourer (KL8) 03/2020- (2.0 TDI / 116 HK) Karosstyp: Kombi / Drivning: 2WD
SEAT LEON Sportstourer (KL8) 03/2020- (2.0 TDI / 150 HK) Karosstyp: Kombi / Drivning: 2WD
SEAT LEON Sportstourer (KL8) 03/2020- (2.0 TFSI / 190 HK) Karosstyp: Kombi / Drivning: 2WD
SKODA SUPERB III (3V3. 3T) 03/2015- (1.4 TSI / 125 HK) Karosstyp: Hatchback / Drivning: 2WD
SKODA SUPERB III (3V3. 3T) 03/2015- (1.6 TDI / 120 HK) Karosstyp: Hatchback / Drivning: 2WD
SKODA SUPERB III (3V3. 3T) 03/2015- (1.8 TSI / 180 HK) Karosstyp: Hatchback / Drivning: 2WD
SKODA SUPERB III (3V3. 3T) 03/2015- (2.0 TDI / 122 HK) Karosstyp: Hatchback / Drivning: 2WD
SKODA SUPERB III (3V3. 3T) 03/2015- (2.0 TDI / 150 HK) Karosstyp: Hatchback / Drivning: 2WD
SKODA SUPERB III (3V3. 3T) 03/2015- (2.0 TDI / 177 HK) Karosstyp: Hatchback / Drivning: 2WD
SKODA SUPERB III (3V3. 3T) 03/2015- (2.0 TDI / 190 HK) Karosstyp: Hatchback / Drivning: 2WD
SKODA SUPERB III (3V3. 3T) 03/2015- (2.0 TDI / 200 HK) Karosstyp: Hatchback / Drivning: 2WD
SKODA SUPERB III (3V3. 3T) 03/2015- (2.0 TSI / 190 HK) Karosstyp: Hatchback / Drivning: 2WD
SKODA SUPERB III (3V3. 3T) 03/2015- (2.0 TSI / 220 HK) Karosstyp: Hatchback / Drivning: 2WD
VW PASSAT 3G2 (3C) 08/2014- (1.6 TDI / 120 HK) Karosstyp: Sedan / Drivning: 2WD
VW PASSAT 3G2 (3C) 08/2014- (1.8 TSI / 180 HK) Karosstyp: Sedan / Drivning: 2WD
VW PASSAT 3G2 (3C) 08/2014- (2.0 TDI / 110 HK) Karosstyp: Sedan / Drivning: 2WD
VW PASSAT 3G2 (3C) 08/2014- (2.0 TDI / 122 HK) Karosstyp: Sedan / Drivning: 2WD
VW PASSAT 3G2 (3C) 08/2014- (2.0 TDI / 150 HK) Karosstyp: Sedan / Drivning: 2WD
VW PASSAT 3G2 (3C) 08/2014- (2.0 TDI / 177 HK) Karosstyp: Sedan / Drivning: 2WD
VW PASSAT 3G2 (3C) 08/2014- (2.0 TDI / 184 HK) Karosstyp: Sedan / Drivning: 2WD
VW PASSAT 3G2 (3C) 08/2014- (2.0 TDI / 190 HK) Karosstyp: Sedan / Drivning: 2WD
VW PASSAT 3G2 (3C) 08/2014- (2.0 TDI / 200 HK) Karosstyp: Sedan / Drivning: 2WD
VW PASSAT 3G2 (3C) 08/2014- (2.0 TSI / 190 HK) Karosstyp: Sedan / Drivning: 2WD
VW PASSAT 3G2 (3C) 08/2014- (2.0 TSI / 220 HK) Karosstyp: Sedan / Drivning: 2WD

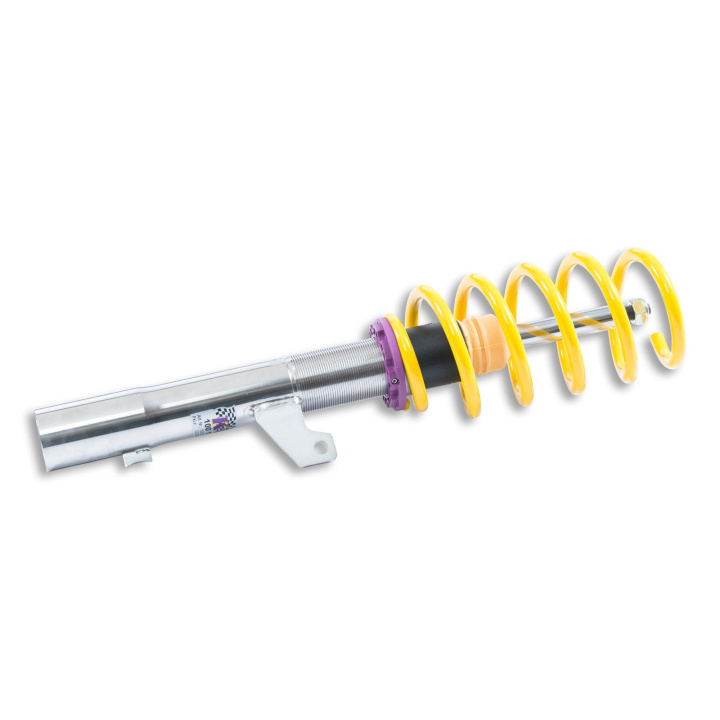

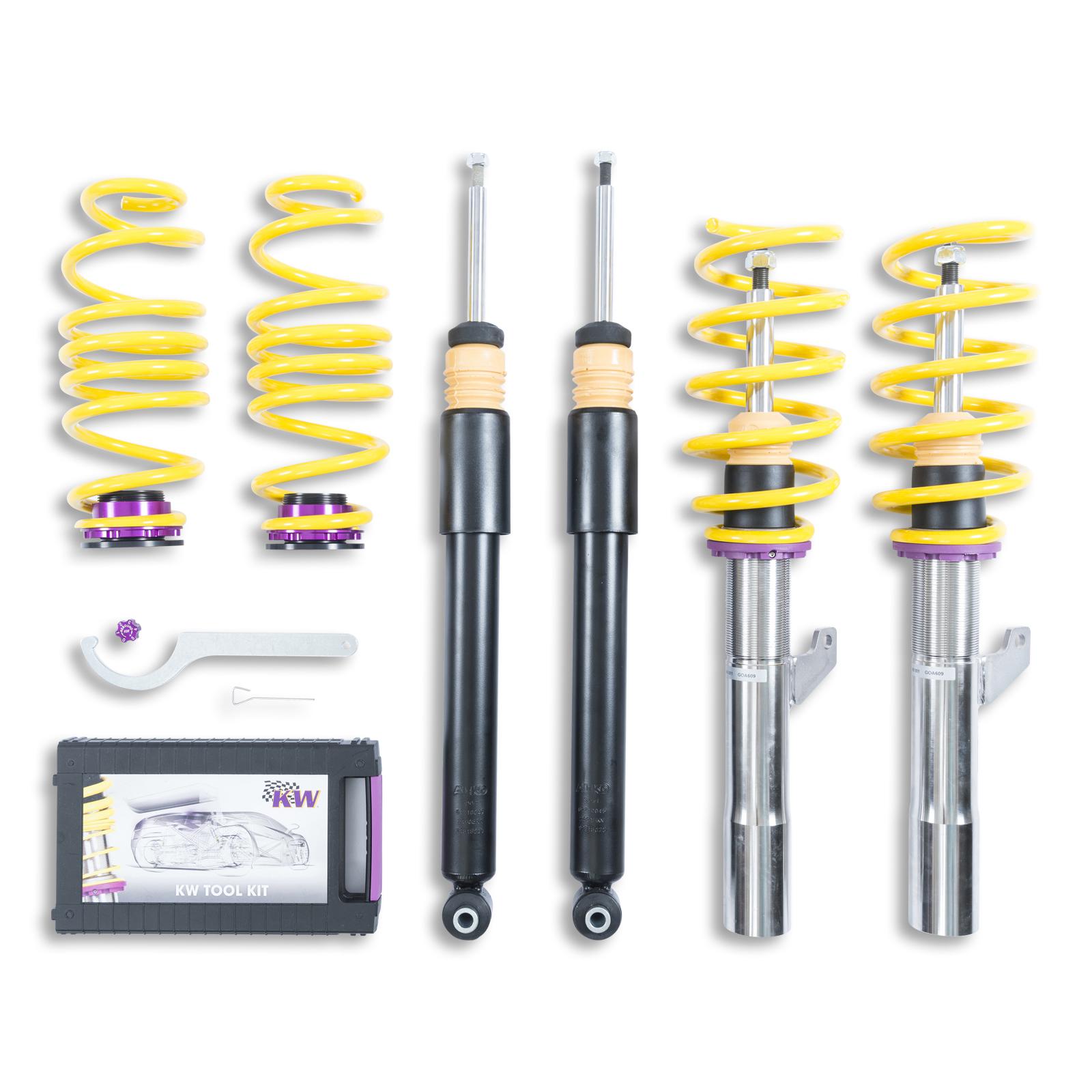

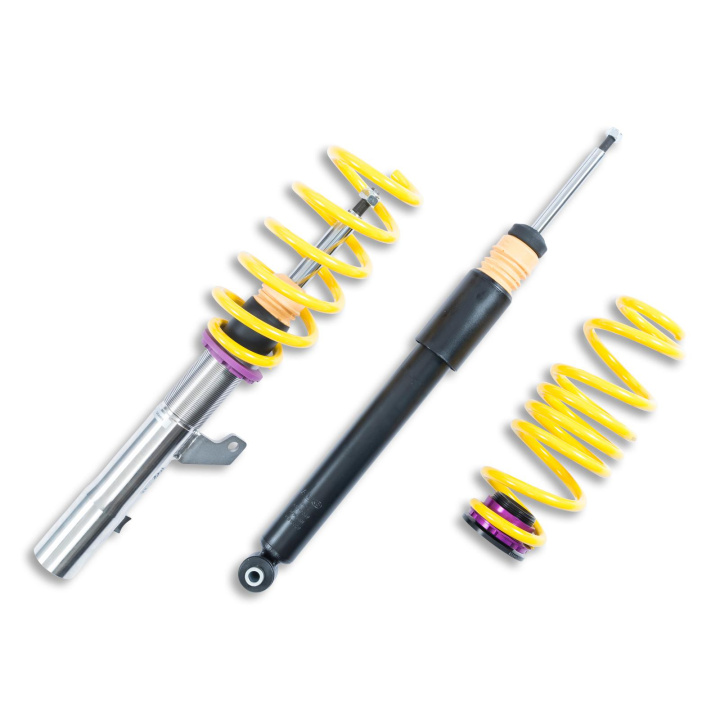

The KW coilover kit Variant 1 inox-line is our entry model for more driving pleasure with an attractive and individually adjustable lowering. Due to its high-quality finish, the use of struts made from stainless steel, corrosion resistant springs and bump stops as well as compatible components stands for long driving pleasure - not just the car''s life.
Continuous lowering

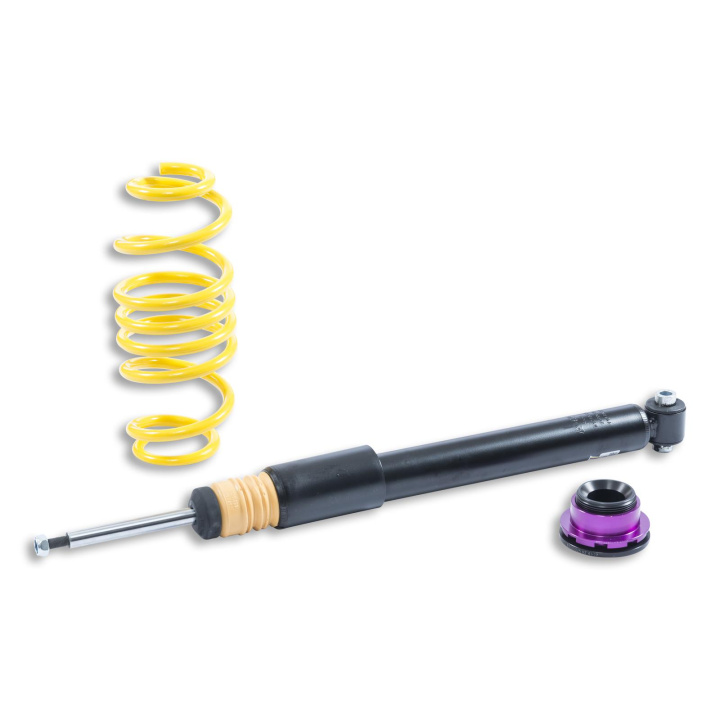

With the KW coilover Variant 1 you can achieve maximum lowering in the tested adjustment range. Depending on vehicle model this varies between 30 to 70mm or 50 to 90mm. Even after years you can adjust the height quickly and easily due to the dirt resistant trapezoid thread and composite collar. Lowering at the front axle is made using our one piece composite height adjuster, on the rear axle this is the same unless the car has a seperate spring and shock absorber. The supplied rear height adjuster sits either above or below the rear spring.
The benchmark for tuning fans
KW coilover Variant 1 inox-line satisfies the sporty driver with its harmonic basic setup. Our engineers develop for each vehicle a specific damper setup and spring rate to increase the driving pleasure with optimal balance of sportiness and practicality. In the end, you don''t buy any coilover, but a KW coilover which has been developed specifically for your type of vehicle. KW as a manufacturer uses only its own resources, high quality components and the same damper technology as high-volume manufacturers. With the KW coilovers Variant 1 inox-line, rolling motions of the body will be reduced during compression and you benefit from genuine directness and sportier handling while driving.
Trust In Our Experience
We are the market leader and innovator of individual suspension solutions for road and racetrack for more than 15 years. No matter where in the world, car driver, automotive manufacturers and tuners rely on our KW coilovers Made in Germany. Each KW coilover kit, developed and manufactured in the Swabian town Fichtenberg, is subject to extensive stress tests during production to meet the high standards of our KW quality management. Of course, we give as a German manufacturer a 2-year warranty on our more than 4600 applications suspension solutions, which exceed OEM quality. The warranty will increase up to 5 years when the kit has been installed at one of our KW specialist dealers.
- Optimally pre-adjusted
- Sporty and comfortable dampening technology
- Stainless steel technology inox-line
- Individually height adjustable
- tested adjustment range
- Ready to install complete solution
- High quality components for a long durability
- Complete documentation for easy handling
Setup - Factory pre-configured damping setup
The KW coilover Variant 1 inox-line has a vehicle-specific, fixed configured damper setup. The spring and damper match perfectly, so that you will experience an optimized balance of sportiness and comfort while driving.
Even with full load and maximum axle loads, the dampers always work with a sporty characteristic. Tuning fans whose focus are Show & Shine events are interested in the KW Variant 1 inox-line.
