Sporty handling combined with outstanding looks. With factory pre-configured damping
Note:
Height adjustable on the front and rear axles (threaded strut housings)
When using original tires, wheel offset spacers may be required
To identify the suspension struts, measure the diameter of the strut mounting screw at the steering knuckle. Screw diameter either M12 or M14
Applications:
AUDI 80 (B3) 89. 89Q. 8A. SF2 06/1986-10/1991 (1.8 E quattro / 112 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 80 (B3) 89. 89Q. 8A. SF2 06/1986-10/1991 (1.8 quattro / 113 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 80 (B3) 89. 89Q. 8A. SF2 06/1986-10/1991 (1.8 S quattro / 88 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 80 (B3) 89. 89Q. 8A. SF2 06/1986-10/1991 (1.8 S quattro / 90 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 80 (B3) 89. 89Q. 8A. SF2 06/1986-10/1991 (1.9 quattro / 113 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 80 (B3) 89. 89Q. 8A. SF2 06/1986-10/1991 (2.0 E 16V quattro / 137 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 80 (B3) 89. 89Q. 8A. SF2 06/1986-10/1991 (2.0 E quattro / 113 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 80 (B3) 89. 89Q. 8A. SF2 06/1986-10/1991 (2.0 quattro / 112 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 80 (B3) 89. 89Q. 8A. SF2 06/1986-10/1991 (2.0 quattro / 116 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 80 (B3) 89. 89Q. 8A. SF2 06/1986-10/1991 (2.3 quattro / 133 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 90 (B3) 89. 89Q. 8A 04/1987-09/1991 (2.0 20 V quattro / 160 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 90 (B3) 89. 89Q. 8A 04/1987-09/1991 (2.0 quattro / 137 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 90 (B3) 89. 89Q. 8A 04/1987-09/1991 (2.2 E quattro / 136 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 90 (B3) 89. 89Q. 8A 04/1987-09/1991 (2.3 E 20V quattro / 167 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 90 (B3) 89. 89Q. 8A 04/1987-09/1991 (2.3 E 20V quattro / 170 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 90 (B3) 89. 89Q. 8A 04/1987-09/1991 (2.3 E quattro / 133 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI 90 (B3) 89. 89Q. 8A 04/1987-09/1991 (2.3 E quattro / 136 HK) Karosstyp: Sedan / Drivning: 4WD
AUDI COUPE (89) 8B. 89Q 10/1988-12/1996 (2.0 20 V quattro / 160 HK) Karosstyp: Coupé / Drivning: 4WD
AUDI COUPE (89) 8B. 89Q 10/1988-12/1996 (2.2 quattro / 136 HK) Karosstyp: Coupé / Drivning: 4WD
AUDI COUPE (89) 8B. 89Q 10/1988-12/1996 (2.3 20V quattro / 167 HK) Karosstyp: Coupé / Drivning: 4WD
AUDI COUPE (89) 8B. 89Q 10/1988-12/1996 (2.3 20V quattro / 170 HK) Karosstyp: Coupé / Drivning: 4WD
AUDI COUPE (89) 8B. 89Q 10/1988-12/1996 (2.3 quattro / 133 HK) Karosstyp: Coupé / Drivning: 4WD
AUDI COUPE (89) 8B. 89Q 10/1988-12/1996 (2.3 quattro / 136 HK) Karosstyp: Coupé / Drivning: 4WD

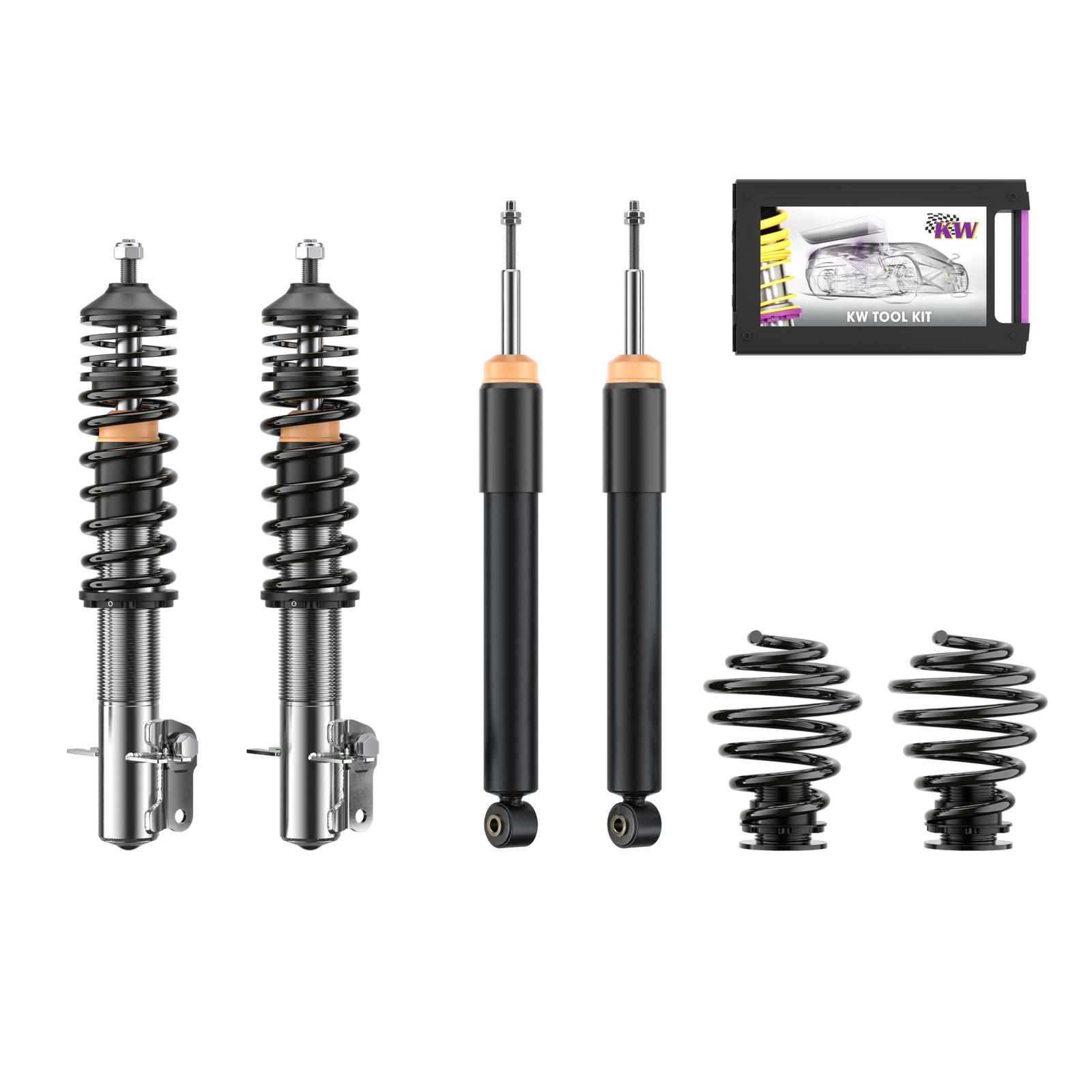

The KW coilover kit Variant 1 inox-line is our entry model for more driving pleasure with an attractive and individually adjustable lowering. Due to its high-quality finish, the use of struts made from stainless steel, corrosion resistant springs and bump stops as well as compatible components stands for long driving pleasure - not just the car''s life.
Continuous lowering

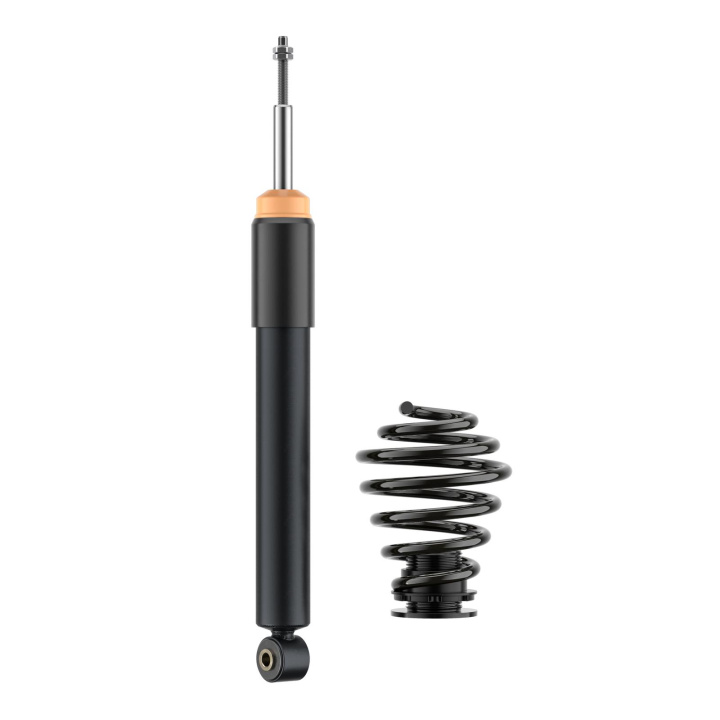

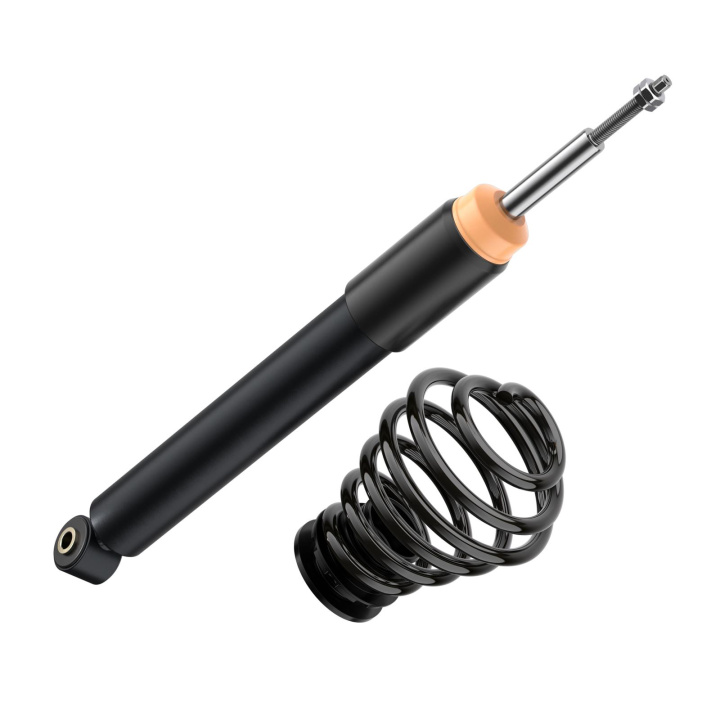

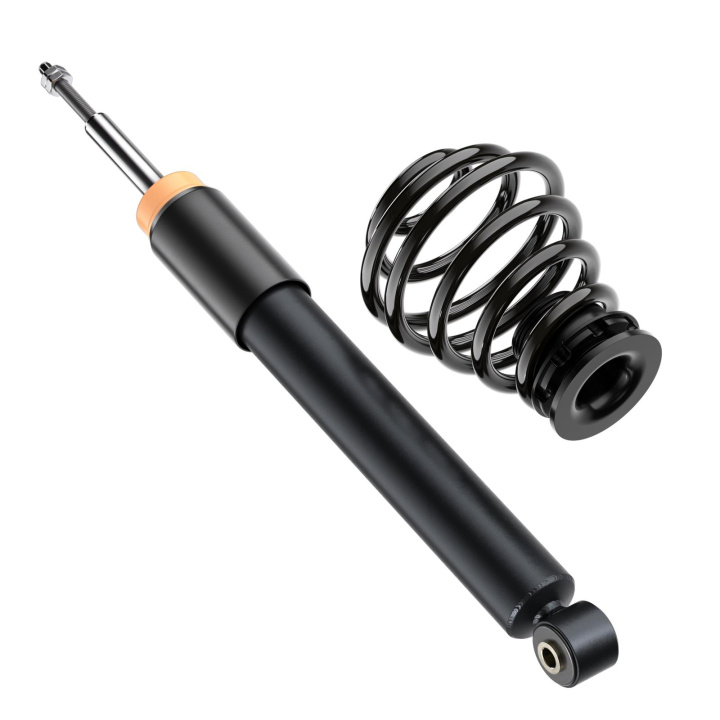

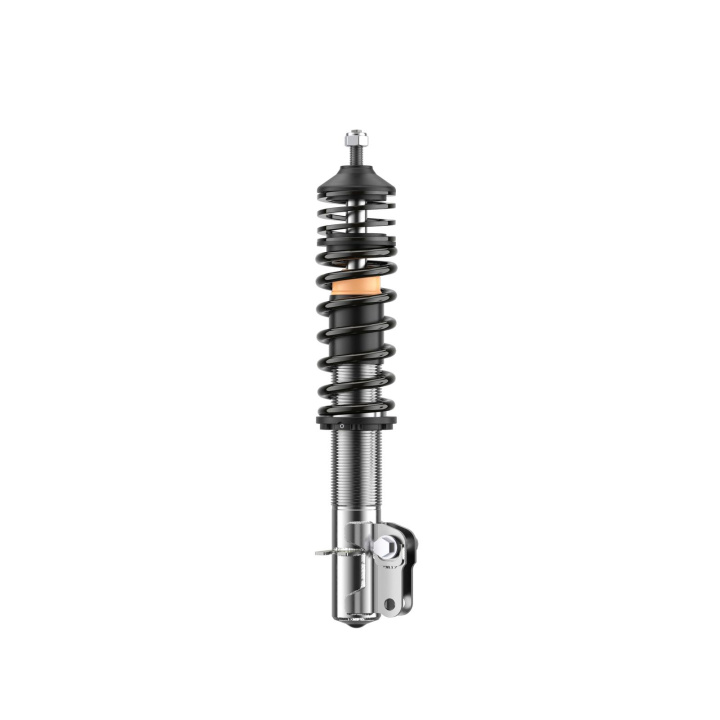

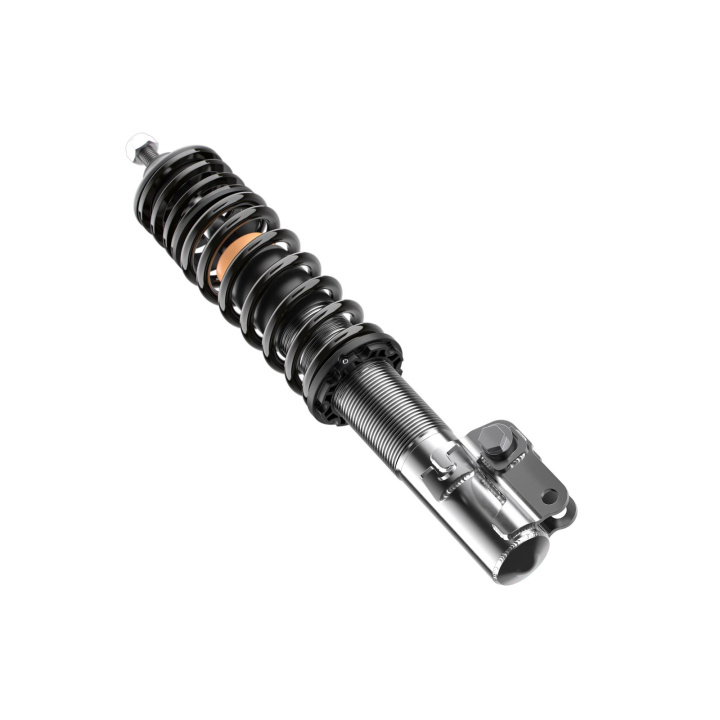

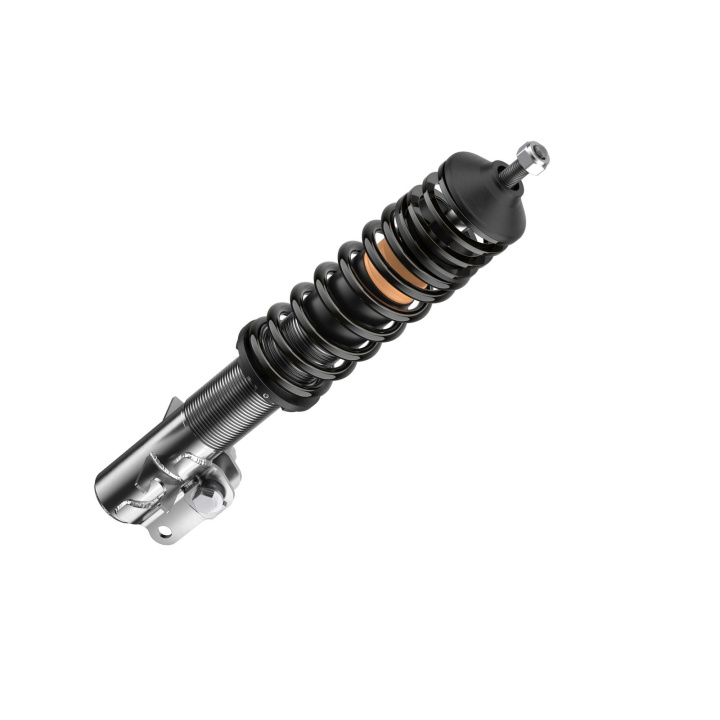

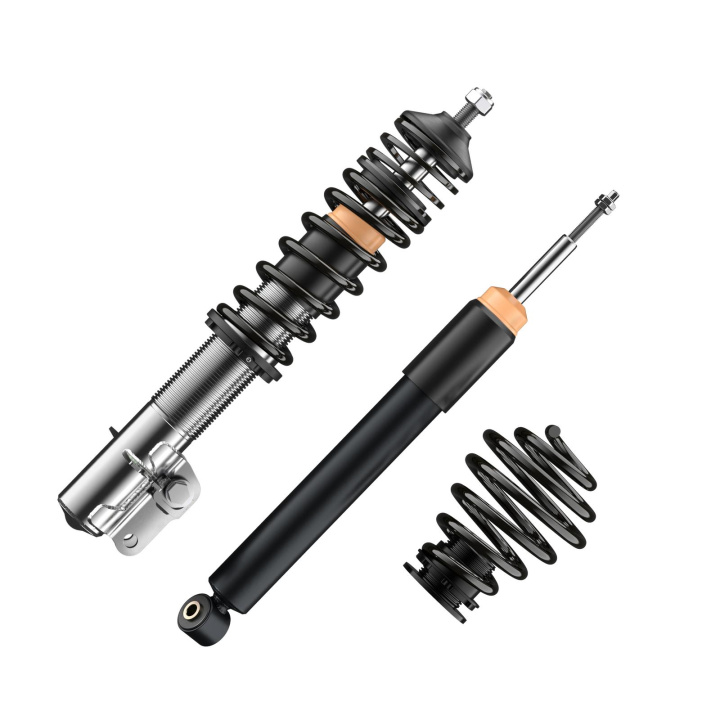

With the KW coilover Variant 1 you can achieve maximum lowering in the tested adjustment range. Depending on vehicle model this varies between 30 to 70mm or 50 to 90mm. Even after years you can adjust the height quickly and easily due to the dirt resistant trapezoid thread and composite collar. Lowering at the front axle is made using our one piece composite height adjuster, on the rear axle this is the same unless the car has a seperate spring and shock absorber. The supplied rear height adjuster sits either above or below the rear spring.
The benchmark for tuning fans
KW coilover Variant 1 inox-line satisfies the sporty driver with its harmonic basic setup. Our engineers develop for each vehicle a specific damper setup and spring rate to increase the driving pleasure with optimal balance of sportiness and practicality. In the end, you don''t buy any coilover, but a KW coilover which has been developed specifically for your type of vehicle. KW as a manufacturer uses only its own resources, high quality components and the same damper technology as high-volume manufacturers. With the KW coilovers Variant 1 inox-line, rolling motions of the body will be reduced during compression and you benefit from genuine directness and sportier handling while driving.
Trust In Our Experience
We are the market leader and innovator of individual suspension solutions for road and racetrack for more than 15 years. No matter where in the world, car driver, automotive manufacturers and tuners rely on our KW coilovers Made in Germany. Each KW coilover kit, developed and manufactured in the Swabian town Fichtenberg, is subject to extensive stress tests during production to meet the high standards of our KW quality management. Of course, we give as a German manufacturer a 2-year warranty on our more than 4600 applications suspension solutions, which exceed OEM quality. The warranty will increase up to 5 years when the kit has been installed at one of our KW specialist dealers.
- Optimally pre-adjusted
- Sporty and comfortable dampening technology
- Stainless steel technology inox-line
- Individually height adjustable
- tested adjustment range
- Ready to install complete solution
- High quality components for a long durability
- Complete documentation for easy handling
Setup - Factory pre-configured damping setup
The KW coilover Variant 1 inox-line has a vehicle-specific, fixed configured damper setup. The spring and damper match perfectly, so that you will experience an optimized balance of sportiness and comfort while driving.
Even with full load and maximum axle loads, the dampers always work with a sporty characteristic. Tuning fans whose focus are Show & Shine events are interested in the KW Variant 1 inox-line.
