Xtreme Motorsport 200mm twin plate

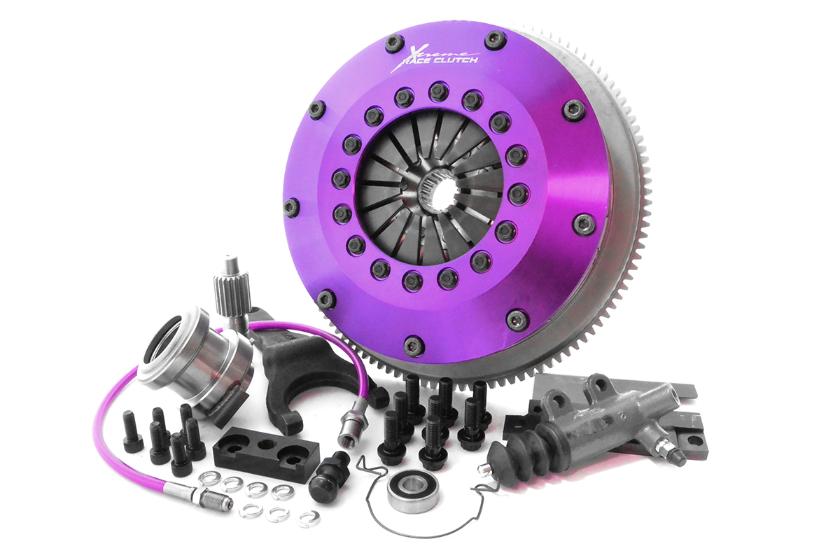

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Toyota Chaser 2.5 (JZX90. JZX93) 1992.10-1996.08 1JZ-GE 2491 Petrol 132 kW 180 BHP (1992.10 - 1996.08)Toyota Chaser 2.5 (JZX100_) 1996.10-2001.05 1JZ-GE 2491 Petrol 147 kW 200 BHP (1996.10 - 2001.05)
Toyota Supra 2.5 i Bi-Turbo (JZA70) 1990.08-1993.05 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.08 - 1993.05)
Toyota Soarer 2.5 Turbo (JZZ30) 1990.09-2000.09 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.09 - 2000.09)
Toyota Chaser 2.5 Turbo (JZX90) 1992.10-1996.08 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.08)
Toyota Mark II Gen. VI |2.5 (JZX110) 1992.10-1996.09 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.09)
Toyota Chaser 2.5 (JZX100_) 1996.10-2001.05 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.05)
Toyota Mark II Gen. VII | 2.5 VVTi (JZX100) 1996.10-2001.09 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.09)
