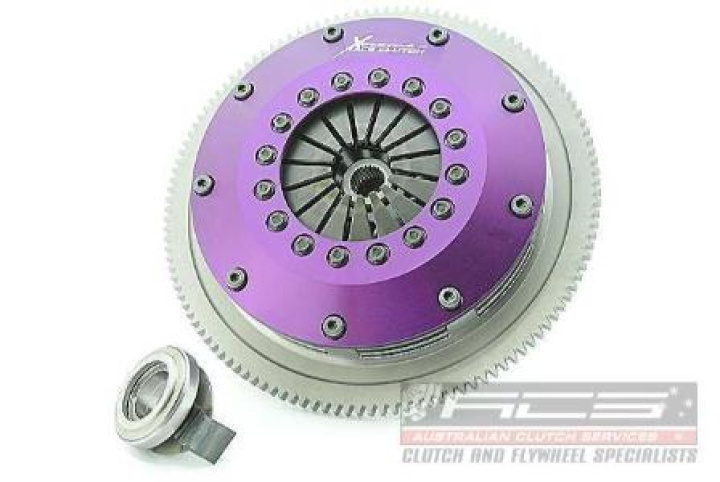

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Subaru Forester 2.5 AWD (SG9. S11SG. S12SH) 2005.06-2008.05 EJ255 2457 Petrol 169 kW 230 BHP (2005.06 - 2008.05)Subaru Impreza 2.5 i WRX AWD (GDG) 2005.09-2008.12 EJ255 2457 Petrol 169 kW 230 BHP (2005.09 - 2008.12)
Subaru Impreza 2.5 WRX AWD (GGG) 2005.09-2008.12 EJ255 2457 Petrol 169 kW 230 BHP (2005.09 - 2008.12)
Subaru Impreza 2.5 AWD (GHE) 2008.01-2011.09 EJ255 2457 Petrol 169 kW 230 BHP (2008.01 - 2011.09)
Subaru Forester 2.5 AWD (SH9) 2008.06-2013.09 EJ255 2457 Petrol 169 kW 230 BHP (2008.06 - 2013.09)
Subaru Impreza 2.5 WRX S AWD 2009.02-2010.12 EJ255 2457 Petrol 188 kW 255 BHP (2009.02 - 2010.12)
Subaru Impreza 2.5 WRX SE AWD (GRE) 2010.07-2013.08 EJ255 2457 Petrol 195 kW 265 BHP (2010.07 - 2013.08)
Subaru WRX 2.0 AWD (GK6. GK8) 2013.09-2018 FA20F, FA20E 1998 Petrol 197 kW 268 BHP (2013.09 - 2018)
Subaru WRX 2.0 AWD (GK6. GK8) 2013.09-2021 FA20F, FA20E 1998 Petrol 197 kW 268 BHP (2013.09 - 2021)
