Xtreme Motorsport 200mm twin plate

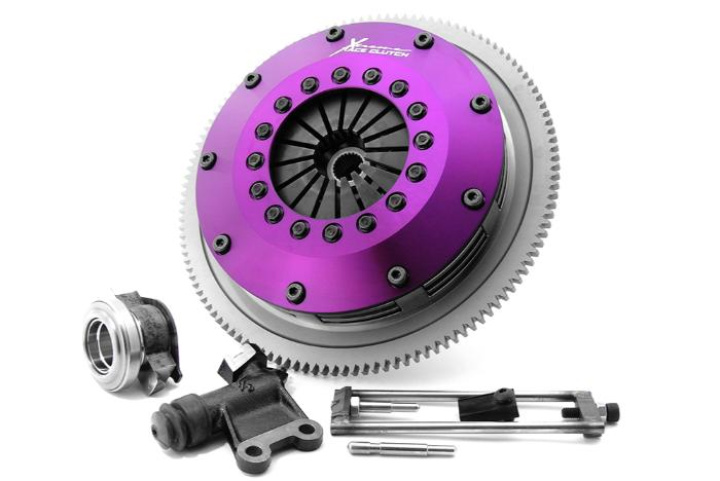

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Subaru Impreza 2.0 Turbo GT AWD (GC8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 Turbo GT AWD (GF8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 Turbo AWD (GGA) 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 WRX Turbo AWD (GDA) 6 speed 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 WRX Turbo AWD (GGA) 2002.12-2006.09 EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 WRX AWD (GGA) 2001.09-2005.12 EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 AWD (GC8) 1998.09-2000.09 EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 WRX STi AWD (GDB) 2001.11-2005.07 EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 WRX STi AWD (GGB) 2000.10-2002.10 EJ207 1994 Petrol 206 kW 280 BHP (2000.10 - 2002.10) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 AWD (GDB) 2005.10-2007.03 EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 WRX STi AWD 2004.02-2005.07 EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 WRX STI AWD (GVF) 2010-2014 EJ255 2457 Petrol 221 kW 301 BHP (2010 - 2014) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 i WRX STI AWD 2005.09-2007.12 EJ257 2457 Petrol 195 kW 265 BHP (2005.09 - 2007.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 WRX STi AWD (GDF) 2005.09-2007.12 EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 AWD 2005.10-2007.03 EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 AWD (GDF) 2005.10-2007.03 EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 WRX STI AWD (GRF) 2008.01-2013.08 EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08) Suits 6 Speed Gearboxn - Subaru WRX STi 2.5 AWD 2014.06-2021 EJ257 2457 Petrol 221 kW 301 BHP (2014.06 - 2021) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 WRX STI 330S AWD 2009.05-2010.12 EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 STI CS400 AWD (GRF) 2010.04-2013.08 EJ257 2457 Petrol 294 kW 400 BHP (2010.04 - 2013.08) Suits 6 Speed Gearboxn - Subaru WRX 2.0 AWD (GK6. GK8) 2013.09-2018 FA20F, FA20E 1998 Petrol 197 kW 268 BHP (2013.09 - 2018) Suits 6 Speed Gearboxn - Subaru WRX 2.0 AWD (GK6. GK8) 2013.09-2021 FA20F, FA20E 1998 Petrol 197 kW 268 BHP (2013.09 - 2021) Suits 6 Speed Gearbox
