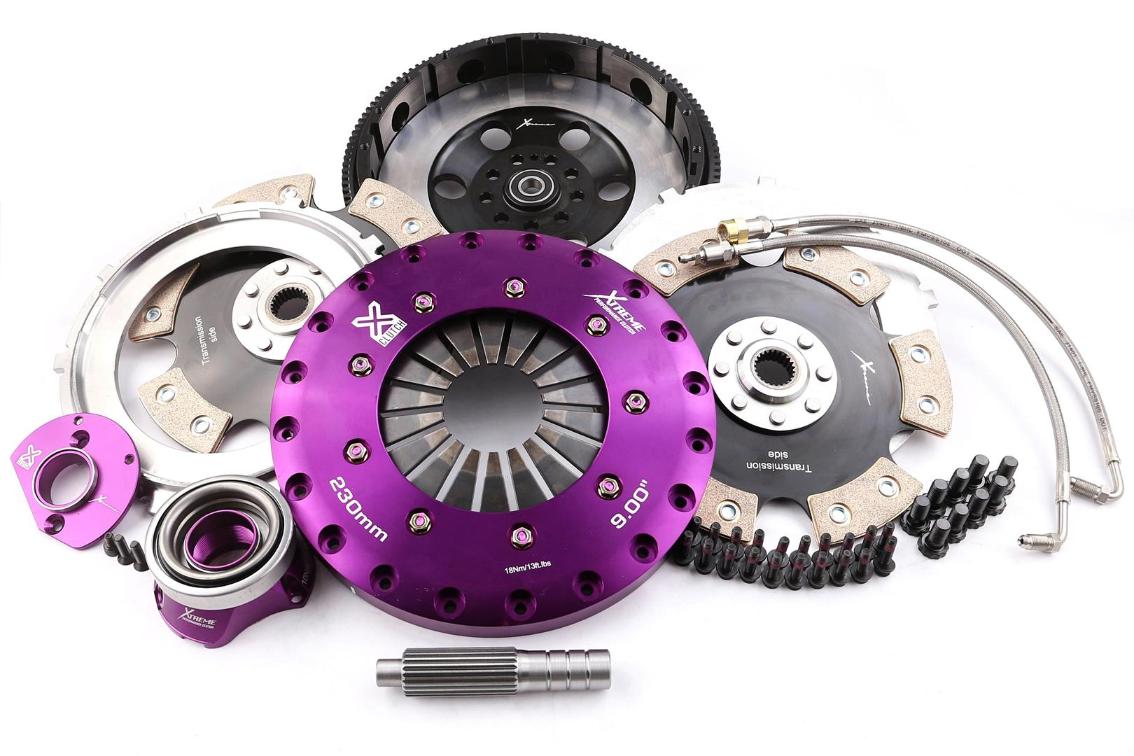

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Passar till:
- Porsche 911 (964) 3.3 Turbo 3.3 Turbo 1990-1993 3.3 Turbo 320BHP (1990-1993)Porsche 911 (993) 3.6 Carrera 3.6 Carrera 1993|1994|1995 3.6 Carrera 272BHP (1993-1995)
Porsche 911 (993) 3.6 Carrera 3.6 Carrera 1995-1997 3.6 Carrera 286BHP (1995-1997)
Porsche 911 (997) 3.6 GT 2 3.6 GT 2 2007-2012 3.6 GT 2 530BHP (2007-2012)
Porsche 911 (996) 3.6 GT2 3.6 GT2 2001-2005 3.6 GT2 462BHP (2001-2005)
Porsche 911 (997) 3.6 GT2 RS 3.6 GT2 RS 2010-2012 3.6 GT2 RS 620BHP (2010-2012)
Porsche 911 (996) 3.6 GT3 3.6 GT3 1999-2002 3.6 GT3 360BHP (1999-2002)
Porsche 911 (996) 3.6 GT3 3.6 GT3 2003-2005 3.6 GT3 381BHP (2003-2005)
Porsche 911 (997) 3.6 GT3 3.6 GT3 2006-2009 3.6 GT3 415BHP (2006-2009)
Porsche 911 (993) 3.6 Turbo 4 3.6 Turbo 4 1995-1997 3.6 Turbo 4 408BHP (1995-1997)
Porsche 911 (997) 3.8 GT3 RS 3.8 GT3 RS 2009-2011 3.8 GT3 RS 450BHP (2009-2011)
