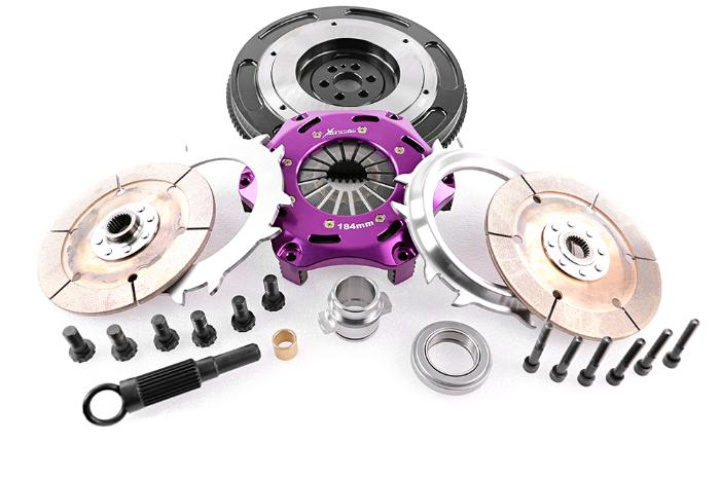

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
Passar till:
- Nissan Skyline R32 | 2.0 1990.01-1993.01 RB20DET 1998 Petrol 153 kW 208 BHP (1990.01 - 1993.01)Nissan Skyline R32 | 2.0 Turbo 1989.03-1993.06 RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06)
Nissan Skyline R32 | 2.0 Turbo 4x4 1989.03-1993.06 RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06)
Nissan Skyline R32 | 2.0 1990.01-1993.01 RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01)
Nissan Skyline R32 | 2.0 AWD 1990.01-1993.01 RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01)
Nissan Skyline R32 | 2.5 1989.03-1993.06 RB25DE 2498 Petrol 132 kW 179 BHP (1989.03 - 1993.06)
Nissan Skyline R33 | 2.5 1993.07-1998.05 RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05)
Nissan Skyline R33 | 2.5 4x4 1993.07-1998.05 RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05)
Nissan Skyline R34 | 2.5 1998.06-2000.07 RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)
Nissan Skyline R34 | 2.5 4x4 1998.06-2000.07 RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)
Nissan Skyline R33 | 2.5 1994.01-2000.07 RB25DET 2498 Petrol 184 kW 250 BHP (1994.01 - 2000.07)
Nissan Skyline R32 | 2.6 Twin Turbo 4x4 1989.04-1993.06 RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06)
Holden Calais VL | 3.0 EFi 1986.03-1988.09 RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09)
Holden Commodore VL | 3.0 EFi 1986.03-1988.09 RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09)
Nissan Skyline R31 | 3.0 1986.07-1990.12 RB30E 2962 Petrol 117 kW 159 BHP (1986.07 - 1990.12)
Holden Calais VL | 3.0 EFi Turbo 1986.01-1988.08 RB30ET 2962 Petrol 150 kW 204 BHP (1986.01 - 1988.08)
Holden Commodore VL | 3.0 EFi Turbo 1986.01-1988.08 RB30ET 2962 Petrol 150 kW 204 BHP (1986.01 - 1988.08)
Nissan Skyline R31 | 3.0 1985.08-1989.03 RB30S 2962 Petrol 105 kW 143 BHP (1985.08 - 1989.03)
