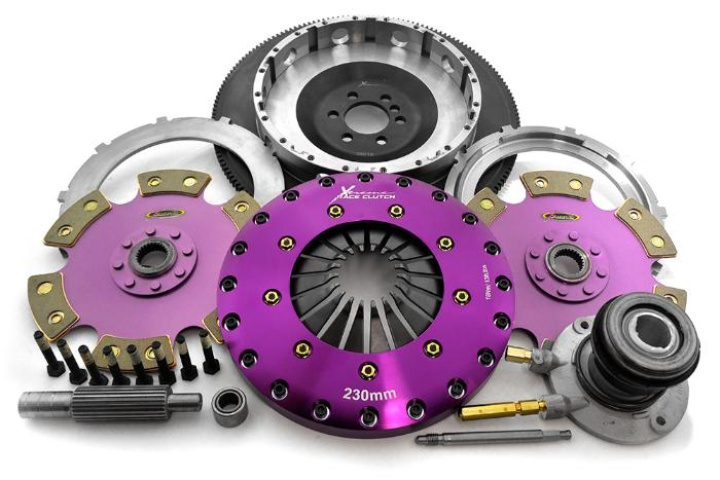

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Passar till:
- Holden H Series 5.7 i V8 2004.11-2005.12 5665 Petrol 260 kW 354 BHP (2004.11 - 2005.12)Holden H Series VZ | 6.0i V8 2005.11-2006.06 L76 5967 Petrol 260 kW 354 BHP (2005.11 - 2006.06)
Holden H Series VE | 6.0i V8 2007.09-2010.09 L76 5967 Petrol 260 kW 354 BHP (2007.09 - 2010.09)
Holden H Series VZ | 6.0i V8 4x4 2005.11-2006.07 L76, LS2(364CUV8) 5967 Petrol 260 kW 354 BHP (2005.11 - 2006.07)
Holden H Series VZ | 6.0i V8 2005.11-2007.08 L76, LS2(364CUV8) 5967 Petrol 260 kW 354 BHP (2005.11 - 2007.08)
HSV Senator VZ | 6.0i V8 2004.10-2006.07 L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2006.07)
HSV Clubsport VZ | 6.0i V8 2004.10-2006.12 L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2006.12)
HSV Maloo VZ | 6.0i V8 2004.10-2007.09 L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2007.09)
HSV GTO VX, VZ | 6.0i V8 2004.10-2007.11 L76, LS2(364CUV8) 5967 Petrol 297 kW 404 BHP (2004.10 - 2007.11)
Chevrolet Camaro 5.7 1998.07-2002.12 LS1 5665 Petrol 212 kW 288 BHP (1998.07 - 2002.12)
Holden H Series VT | 5.7i V8 1999.06-2000.08 LS1 5665 Petrol 220 kW 299 BHP (1999.06 - 2000.08)
Holden H Series VT | 5.7i V8 1999.06-2000.10 LS1 5665 Petrol 220 kW 299 BHP (1999.06 - 2000.10)
Holden H Series VX | 5.7i V8 2000.09-2002.09 LS1 5665 Petrol 225 kW 306 BHP (2000.09 - 2002.09)
Holden H Series VU | 5.7i V8 2000.12-2002.09 LS1 5665 Petrol 225 kW 306 BHP (2000.12 - 2002.09)
Holden H Series 5.7 i V8 2001.12-2003.01 LS1 5665 Petrol 225 kW 306 BHP (2001.12 - 2003.01)
Holden H Series VY | 5.7i V8 2002.09-2003.08 LS1 5665 Petrol 225 kW 306 BHP (2002.09 - 2003.08)
Holden H Series VY | 5.7i V8 2003.09-2004.07 LS1 5665 Petrol 225 kW 306 BHP (2003.09 - 2004.07)
Holden H Series VY | 5.7i V8 2002.09-2004.08 LS1 5665 Petrol 235 kW 320 BHP (2002.09 - 2004.08)
Holden H Series 5.7 i V8 2003.01-2003.08 LS1 5665 Petrol 235 kW 320 BHP (2003.01 - 2003.08)
Holden H Series 5.7 i V8 2003.08-2004.07 LS1 5665 Petrol 235 kW 320 BHP (2003.08 - 2004.07)
Holden H Series VY | 5.7i V8 2003.08-2004.08 LS1 5665 Petrol 235 kW 320 BHP (2003.08 - 2004.08)
Holden H Series VZ | 5.7i V8 2004.08-2006.01 LS1 5665 Petrol 235 kW 320 BHP (2004.08 - 2006.01)
Holden H Series VY | 5.7i V8 2004.08-2006.02 LS1 5665 Petrol 235 kW 320 BHP (2004.08 - 2006.02)
Holden H Series VZ | 5.7i V8 2004.09-2005.12 LS1 5665 Petrol 235 kW 320 BHP (2004.09 - 2005.12)
Holden H Series 5.7 i V8 2004.11-2005.12 LS1 5665 Petrol 235 kW 320 BHP (2004.11 - 2005.12)
Holden H Series VY | 5.7i V8 2002.09-2003.08 LS1 5665 Petrol 245 kW 333 BHP (2002.09 - 2003.08)
Holden H Series 5.7 i V8 2003.08-2004.09 LS1 5665 Petrol 245 kW 333 BHP (2003.08 - 2004.09)
HSV Senator VT | 5.7i V8 1997.09-2000.08 LS1 5665 Petrol 250 kW 340 BHP (1997.09 - 2000.08)
HSV Clubsport VT | 5.7i V8 1999.07-2000.10 LS1 5665 Petrol 250 kW 340 BHP (1999.07 - 2000.10)
Holden H Series VZ | 5.7i V8 2004.09-2006.02 LS1 5665 Petrol 250 kW 340 BHP (2004.09 - 2006.02)
HSV Clubsport VX | 5.7i V8 2000.09-2002.09 LS1 5665 Petrol 255 kW 347 BHP (2000.09 - 2002.09)
HSV Senator VX | 5.7i V8 2000.09-2002.09 LS1 5665 Petrol 255 kW 347 BHP (2000.09 - 2002.09)
HSV Maloo VU | 5.7i V8 2001.03-2002.09 LS1 5665 Petrol 255 kW 347 BHP (2001.03 - 2002.09)
HSV GTO V2 | 5.7i V8 2001.03-2003.08 LS1 5665 Petrol 255 kW 347 BHP (2001.03 - 2003.08)
HSV Clubsport VY | 5.7i V8 2002.10-2003.08 LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.08)
HSV Senator VY | 5.7i V8 2002.10-2003.08 LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.08)
HSV Maloo VY | 5.7i V8 2002.10-2003.09 LS1 5665 Petrol 260 kW 354 BHP (2002.10 - 2003.09)
Holden H Series 5.7 i V8 2004.09-2006.07 LS1 5665 Petrol 260 kW 354 BHP (2004.09 - 2006.07)
Vauxhall Monaro VY, VZ | 5.7 2004.03-2005.07 LS1 5665 Petrol 285 kW 387 BHP (2004.03 - 2005.07)
HSV Clubsport VY | 5.7i V8 2003.09-2004.09 LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09)
HSV GTO VX, VZ | 5.7 i V8 2003.09-2004.09 LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09)
HSV Senator VY | 5.7i V8 2003.09-2004.09 LS1 5665 Petrol 285 kW 388 BHP (2003.09 - 2004.09)
HSV Maloo VY | 5.7i V8 2003.10-2004.09 LS1 5665 Petrol 285 kW 388 BHP (2003.10 - 2004.09)
HSV GTS VT | 5.7i V8 2000.04-2000.09 LS1 5665 Petrol 300 kW 408 BHP (2000.04 - 2000.09)
HSV GTS VX | 5.7i V8 2000.09-2001.08 LS1 5665 Petrol 300 kW 408 BHP (2000.09 - 2001.08)
HSV Senator VX | 5.7i V8 2000.09-2002.09 LS1 5665 Petrol 300 kW 408 BHP (2000.09 - 2002.09)
HSV GTS V2| 5.7i V8 2001.03-2004.09 LS1 5665 Petrol 300 kW 408 BHP (2001.03 - 2004.09)
HSV SV300 VX| 5.7i V8 2001.09-2001.12 LS1 5665 Petrol 300 kW 408 BHP (2001.09 - 2001.12)
HSV GTS VY | 5.7i V8 2002.10-2004.09 LS1 5665 Petrol 300 kW 408 BHP (2002.10 - 2004.09)
HSV SV6000 6.0i V8 2005.08-2006.04 LS2(364CUV8) 5965 Petrol 297 kW 404 BHP (2005.08 - 2006.04)
Vauxhall Monaro VY, VZ | 5.7 2004.01-2004.10 Y 57 XE 5665 Petrol 245 kW 333 BHP (2004.01 - 2004.10)
Vauxhall Monaro VY, VZ | 5.7 2005.01-2007.04 Y 57 XE 5665 Petrol 257 kW 349 BHP (2005.01 - 2007.04)
