ACT Advanced Clutch Technology

GM2-HDG6 ACT HD/Race Sprung 6 Pad Kit

Article nr:
actGM2-HDG6
|
(0 reviews)
Recommended for high horsepower street or race use. Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.
724 EUR

Add to cart
Delivery:  2-4 weeks
Sales Representative Image

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Contact us

  • Product description

  • GM2-HDG6 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

    Specifications:

  • Pressure Plate Type: Heavy Duty
  • Clutch Disc Diameter: 10.5 IN
  • Clutch Disc Diameter: 266 MM
  • Disc Material: Ceramic
  • Input Spline Quantity: 10
  • Input Shaft Diameter: 1.125 IN
  • Product Weight (lbs.): 21.3
  • Title: ACT HD/Race Sprung 6 Pad Kit
  • Torque Capacity (ft/lbs.): 805
  • Torque Capacity Over OE: 69%

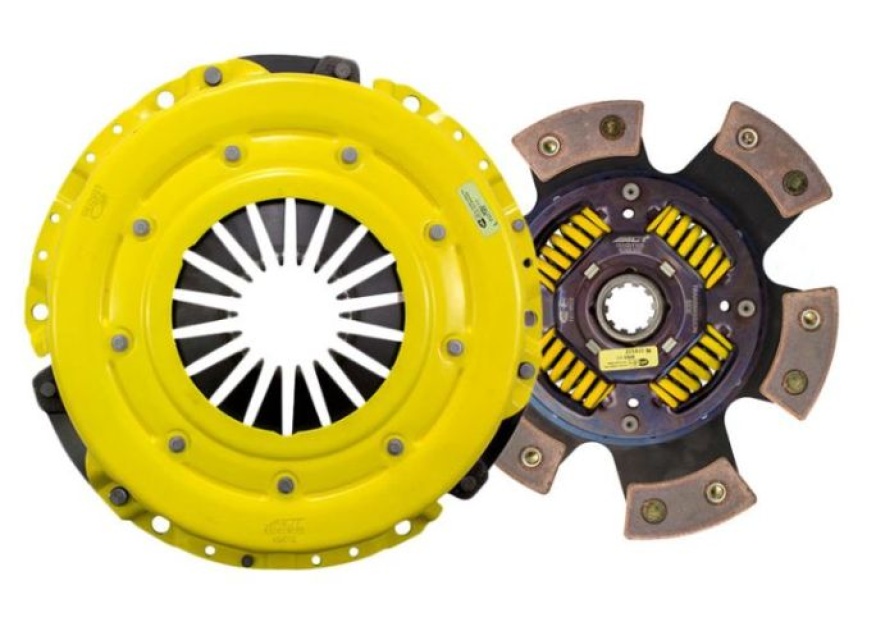

    Kit includes:

    • 6266302 ACT 6 Pad Sprung Race Disc
    • GM012 ACT Heavy Duty Pressure Plate

    Kitet passar:

    American Motors Ambassador Base 1960 5.3L V8 5358cc 327 CID
    American Motors Ambassador Base 1961 5.3L V8 5358cc 327 CID
    American Motors Ambassador Base 1962 5.3L V8 5358cc 327 CID
    American Motors Ambassador Base 1963 5.3L V8 5358cc 327 CID
    American Motors Ambassador Base 1966 5.3L V8 5358cc 327 CID
    American Motors AMX Base 1968 5.6L V8 5585cc 343 CID
    American Motors AMX Base 1969 6.4L V8 6391cc 390 CID
    American Motors AMX Base 1969 5.6L V8 5585cc 343 CID
    American Motors AMX Base 1970 5.9L V8 5899cc 360 CID
    American Motors AMX Base 1970 6.4L V8 6391cc 390 CID
    American Motors AMX Base 1970 5.0L V8 4982cc 304 CID
    American Motors AMX Base 1970 5.9L V8 5900cc 360 CID
    American Motors Hornet Base 1971 5.9L V8 5900cc 360 CID
    American Motors Hornet Base 1971 5.9L V8 5899cc 360 CID
    American Motors Hornet Sportabout 1971 5.9L V8 5899cc 360 CID
    American Motors Hornet SST 1971 5.9L V8 5900cc 360 CID
    American Motors Hornet SST 1971 5.9L V8 5899cc 360 CID
    American Motors Hornet Sportabout 1972 5.9L V8 5900cc 360 CID
    American Motors Hornet Sportabout 1972 5.9L V8 5899cc 360 CID
    American Motors Hornet SST 1972 5.9L V8 5900cc 360 CID
    American Motors Hornet SST 1972 5.9L V8 5899cc 360 CID
    American Motors Marlin Base 1965 5.3L V8 5358cc 327 CID
    American Motors Marlin Base 1966 5.3L V8 5358cc 327 CID
    American Motors Marlin Base 1967 5.6L V8 5585cc 343 CID
    American Motors Ambassador 400 1962 5.4L V8 327 CID
    American Motors Ambassador 880 1963 5.4L V8 327 CID
    American Motors Ambassador 990 1966 5.4L V8 327 CID
    American Motors Ambassador Custom 400 1961 5.4L V8 327 CID
    American Motors Hornet SC360 1971 5.9L V8 360 CID
    American Motors Hornet SC360 1971 5.9L V8 5900cc 360 CID
    American Motors Ambassador 990 1963 5.4L V8 327 CID
    American Motors Ambassador Custom 1960 5.4L V8 327 CID
    American Motors Ambassador Custom 1961 5.4L V8 327 CID
    American Motors Ambassador Custom 1962 5.4L V8 327 CID
    American Motors Ambassador Super 1960 5.4L V8 327 CID
    American Motors Ambassador Super 1961 5.4L V8 327 CID
    American Motors Javelin Base 1969 6.4L V8 6391cc 390 CID
    American Motors Javelin SST 1969 6.4L V8 6391cc 390 CID
    American Motors Javelin Base 1970 5.9L V8 5900cc 360 CID
    American Motors Javelin Base 1970 6.4L V8 6391cc 390 CID
    American Motors Javelin Base 1970 5.9L V8 5899cc 360 CID
    American Motors Javelin SST 1970 5.9L V8 5900cc 360 CID
    American Motors Javelin SST 1970 6.4L V8 6391cc 390 CID
    American Motors Javelin SST 1970 5.9L V8 5899cc 360 CID
    American Motors Javelin SST Mark Donohue 1970 5.9L V8 5900cc 360 CID
    American Motors Javelin SST Trans Am 1970 5.9L V8 5900cc 360 CID
    American Motors Ambassador Base 1964 5.3L V8 5358cc 327 CID
    American Motors Ambassador Base 1965 5.3L V8 5358cc 327 CID
    American Motors Rebel 770 1968 5.6L V8 343 CID
    American Motors Rebel SST 1968 5.6L V8 343 CID
    American Motors Rebel Base 1969 5.6L V8 343 CID
    American Motors Rebel SST 1969 5.6L V8 343 CID
    American Motors Rebel SST 1969 6.4L V8 390 CID
    American Motors Rebel SST 1970 6.4L V8 390 CID
    American Motors Ambassador Custom 1958 5.4L V8 327 CID
    American Motors Ambassador Deluxe 1959 5.4L V8 327 CID
    American Motors Ambassador Super 1958 5.4L V8 327 CID
    American Motors Rebel 770 1967 5.6L V8 343 CID
    American Motors Rebel Machine 1970 6.4L V8 390 CID
    American Motors Rebel SST 1967 5.6L V8 343 CID
    American Motors Ambassador Custom 1959 5.4L V8 327 CID
    American Motors Ambassador Super 1959 5.4L V8 327 CID

    • Product video

    Technical specification

    Article nr:
    actGM2-HDG6
    Manufacture Partnumber: GM2-HDG6
  • Suitable for
  • Brand
  • ACT Advanced Clutch Technology Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
