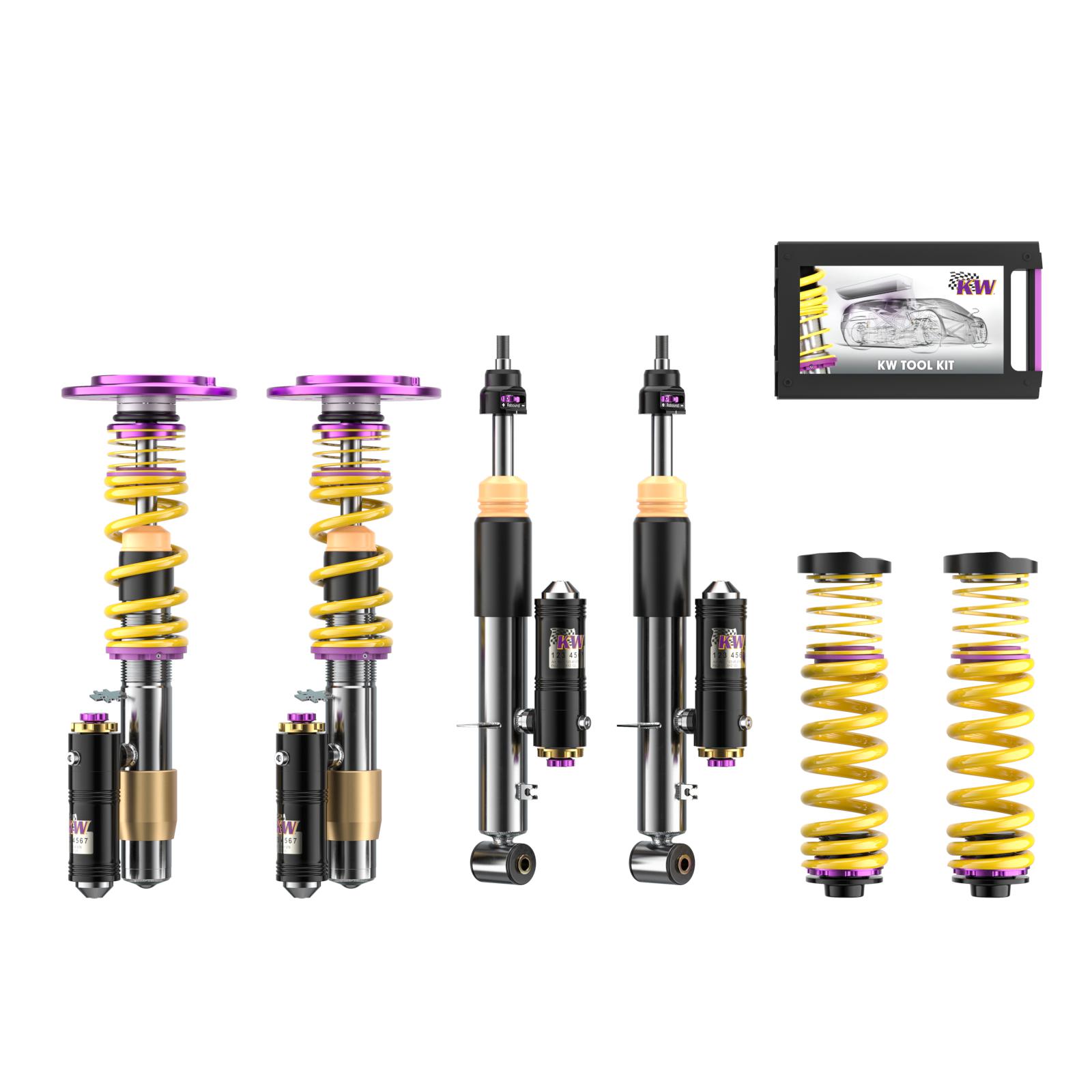

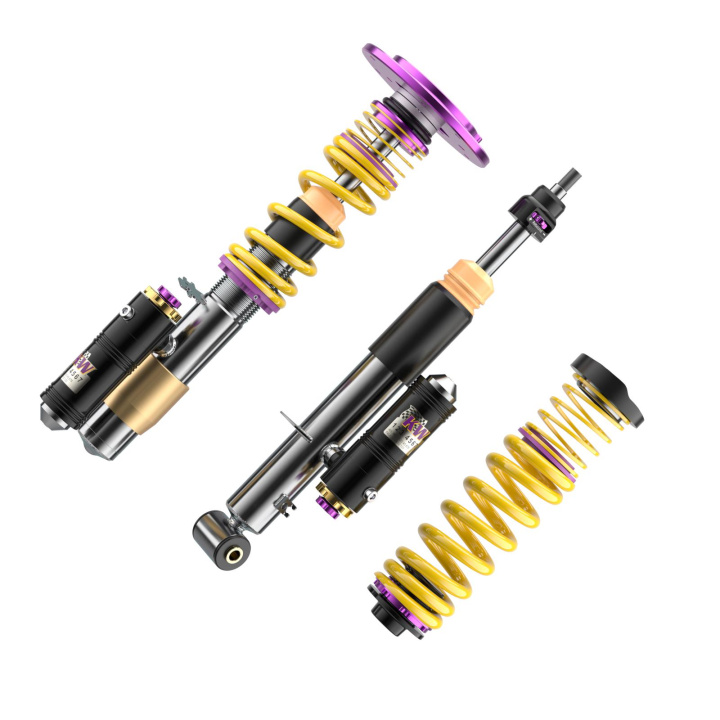

397202CG Coilovers V4 Clubsport KW Suspension

Name: 397202CG Coilovers V4 Clubsport KW Suspension
Brand: KW Suspensions
Price: 5342 EUR
Availability: InStock

Article nr:

KW-397202CG

Using the Nordschleife as it''s testing grounds and the 7-post rig, KW Suspension developed it''s V4 Clubsport coilover kit.
Partnr: 397202CG

5807 EUR / 5342 EUR

Our lowest price 1-30 days before price reduction: 5575 EUR

Delivery:

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
KW Suspension V4 Clubsport 397202CG

Note:

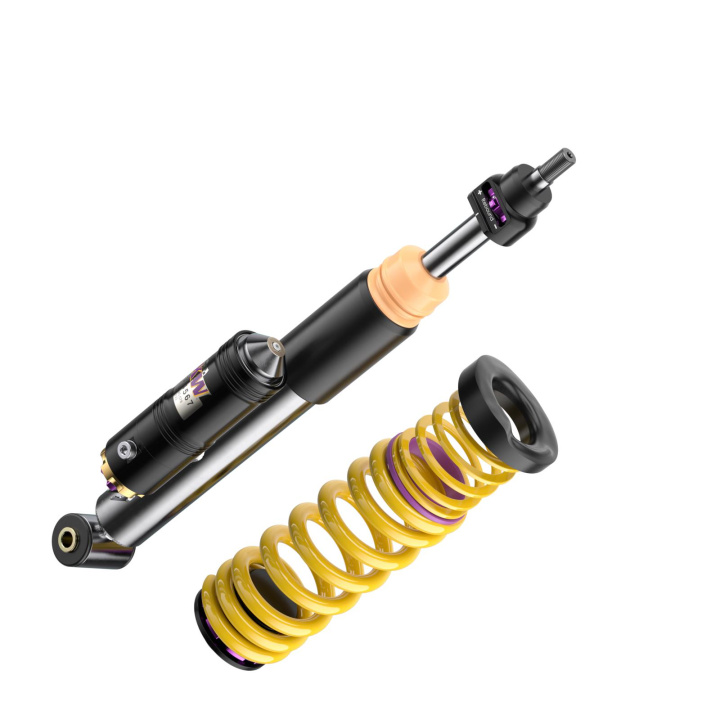

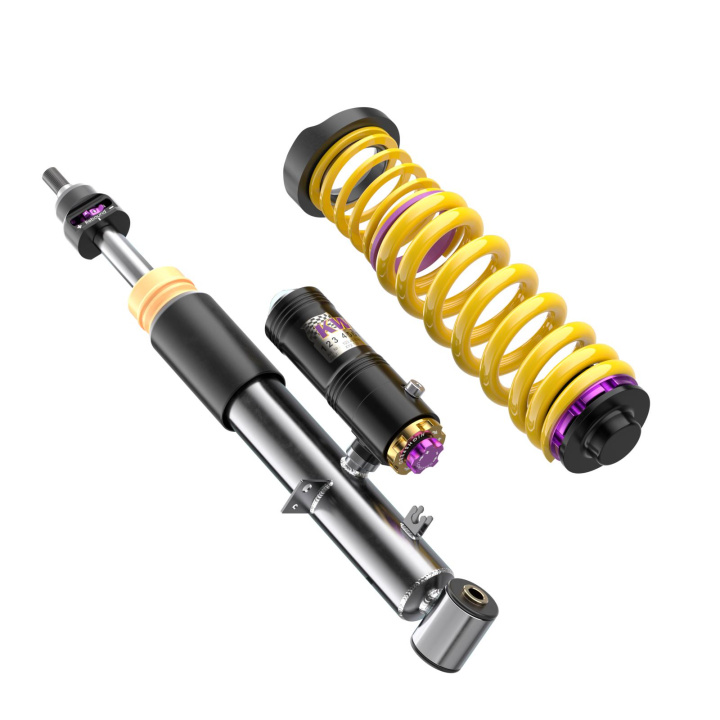

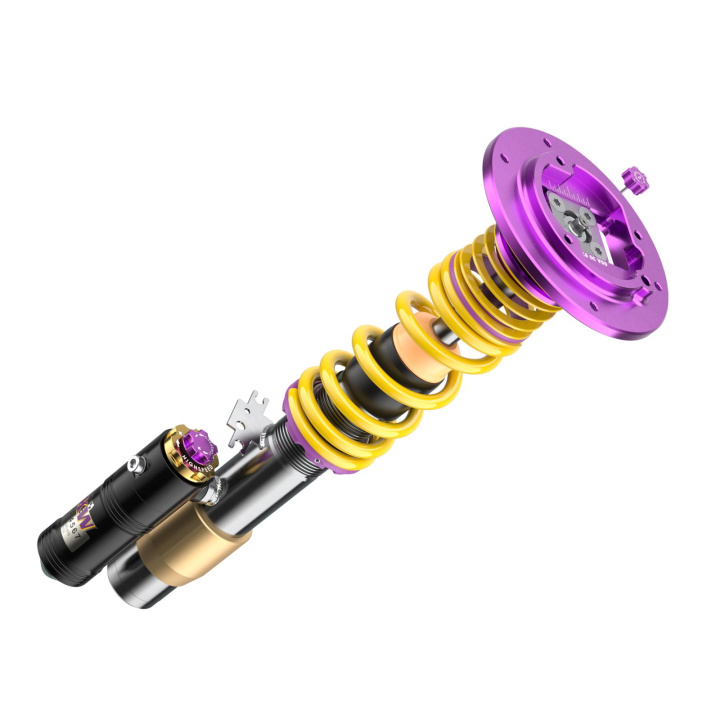

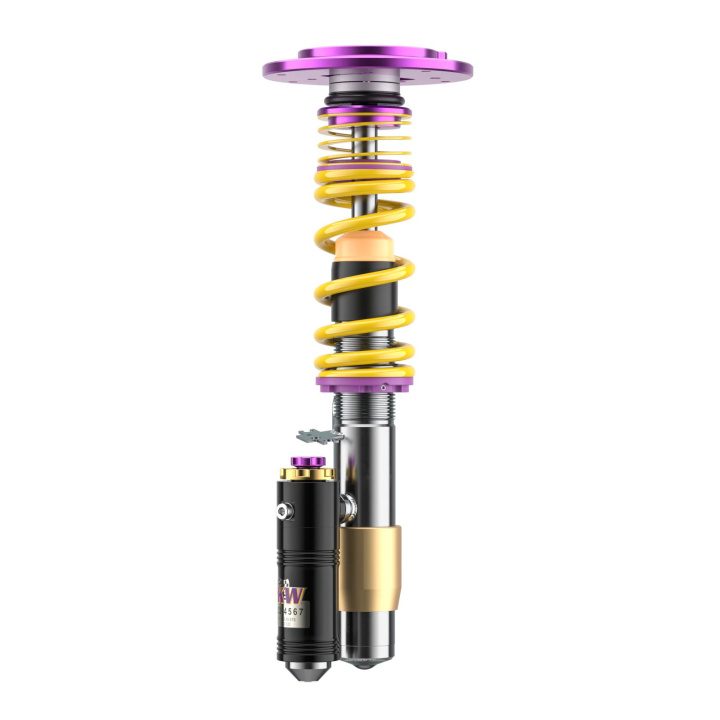

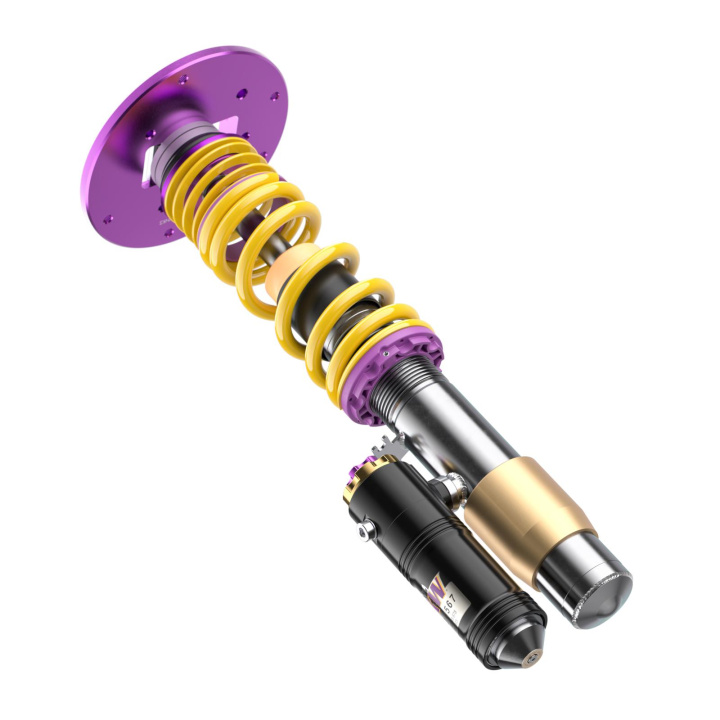

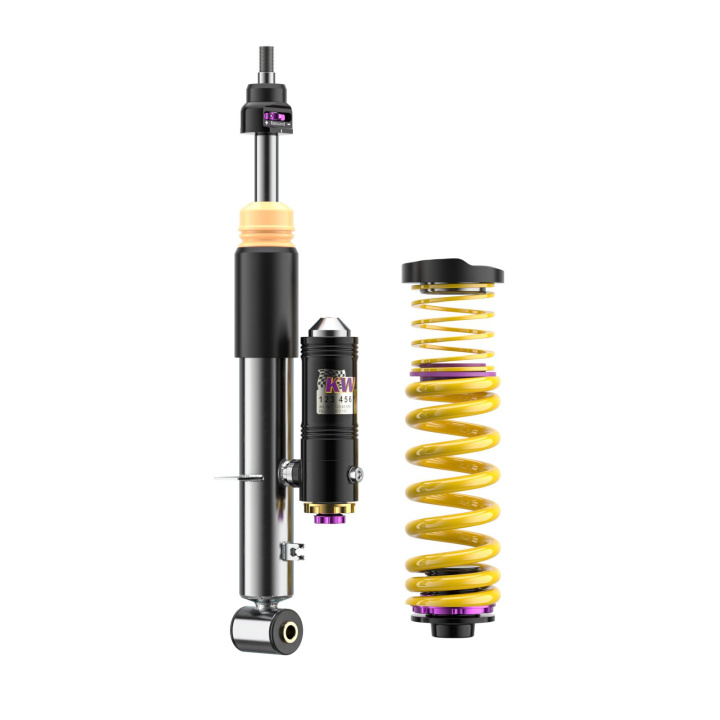

Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)

Fits:
BMW Z4 Roadster (G29) G4Z 11/2018- (M40 i / 340 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z4 Roadster (G29) G4Z 11/2018- (sDrive 20 i / 163 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z4 Roadster (G29) G4Z 11/2018- (sDrive 20 i / 197 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z4 Roadster (G29) G4Z 11/2018- (sDrive 30 i / 258 HK) Karosstyp: Cabriolet / Drivning: 2WD
TOYOTA SUPRA (DB_. JBSC. JTSC) 03/2019- (2.0 (DB22. DB21) / 258 HK) Karosstyp: Coupé / Drivning: 2WD
TOYOTA SUPRA (DB_. JBSC. JTSC) 03/2019- (2.0 (DB82. DB81) / 197 HK) Karosstyp: Coupé / Drivning: 2WD
TOYOTA SUPRA (DB_. JBSC. JTSC) 03/2019- (3.0 (DB02. DB01. DB03) / 388 HK) Karosstyp: Coupé / Drivning: 2WD
TOYOTA SUPRA (DB_. JBSC. JTSC) 03/2019- (3.0 GR (DB41. DB42. DB43) / 340 HK) Karosstyp: Coupé / Drivning: 2WD

Wheel loads, vehicle weight and chassis reinforcements (increased body stiffness) can all be taken into consideration with adjustment capabilities of the V4 Clubsport. Similar to KW Competition 3-way coilovers, low-speed and high-speed compression adjustment is done via KW''s patented two-valve control on the reservoir.

By hand, you can vary the low-speed compression damping with six precise clicks at the purple adjustment wheel. The gold adjustment wheel allows the user to change the high-speed compression damping with 14 precise clicks. Rebound adjust is provided with 16 adjustable clicks providing a noticeable change from the rebound adjustment setting. A reduction in rebound forces provides a more comfortable ride quality suitable for highway driving.

16 precise clicks in rebound adjustment dampening
Adjustable compression damping with 6 clicks in low-speed range and 14 precise clicks in the high-speed range
Continuous lowering
TÜV-tested adjustment range
High-quality components for long-term durability
Independent damping force adjustability with aluminum spherical bearing top mounts available

Product video

Technical specification

Article nr:
KW-397202CG

Manufacture Partnumber: 397202CG

Drivetrain: 2WD
Suitable for
BMW Z4 Roadster (G29) G4Z 11/2018- (M40 i / 340 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z4 Roadster (G29) G4Z 11/2018- (sDrive 20 i / 163 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z4 Roadster (G29) G4Z 11/2018- (sDrive 20 i / 197 HK) Karosstyp: Cabriolet / Drivning: 2WD
BMW Z4 Roadster (G29) G4Z 11/2018- (sDrive 30 i / 258 HK) Karosstyp: Cabriolet / Drivning: 2WD
TOYOTA SUPRA (DB_. JBSC. JTSC) 03/2019- (2.0 (DB22. DB21) / 258 HK) Karosstyp: Coupé / Drivning: 2WD
TOYOTA SUPRA (DB_. JBSC. JTSC) 03/2019- (2.0 (DB82. DB81) / 197 HK) Karosstyp: Coupé / Drivning: 2WD
TOYOTA SUPRA (DB_. JBSC. JTSC) 03/2019- (3.0 (DB02. DB01. DB03) / 388 HK) Karosstyp: Coupé / Drivning: 2WD
TOYOTA SUPRA (DB_. JBSC. JTSC) 03/2019- (3.0 GR (DB41. DB42. DB43) / 340 HK) Karosstyp: Coupé / Drivning: 2WD
Brand
KW has been a market leader and innovator in shock absorber solutions for both street and track racing for over 15 years. Around the world, car manufacturers and tuners trust KW's Made in Germany coilovers. Each kit is developed and manufactured in the small town of Fichtenberg in Germany and before they leave the factory they undergo numerous tests to meet the high standards you can expect from this company. Of course, KW trusts that the products they give out are of the best quality, therefore they provide a 2-year warranty on the kit.
