KW Hydraulic Lift-System 35271254
Note:

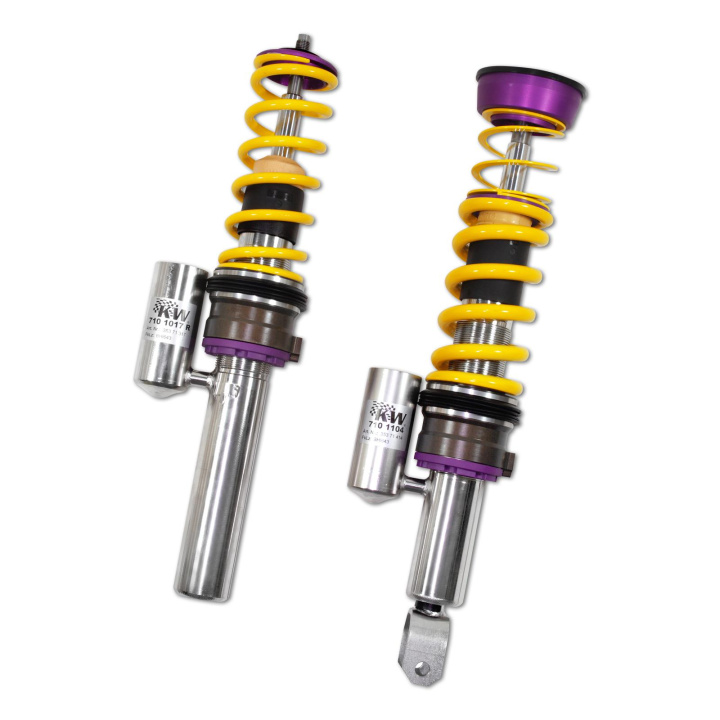

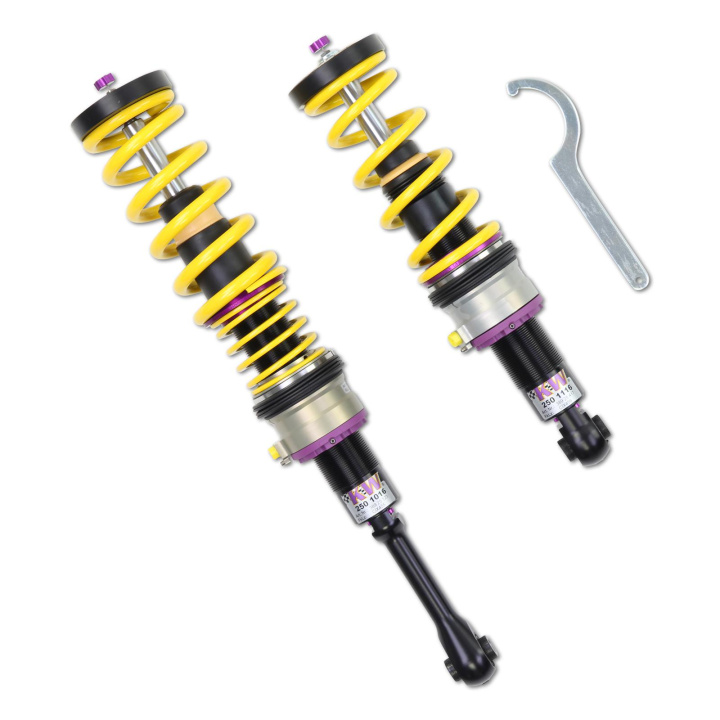

Height adjustable on the front and rear axles (threaded strut housings)
For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list
Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
The battery has to be modified for vehicles with factory battery longer than 278 mm. We recommend Varta Silver Dynamic 77Ah or Bosch S5 77Ah (not included in the kit).
Fits:
PORSCHE 718 BOXSTER (982) 04/2016- (2.0 (982320. 982321) / 299 HK) Karosstyp: Cabriolet / Drivning: 2WD
PORSCHE 718 BOXSTER (982) 04/2016- (2.0 / 250 HK) Karosstyp: Cabriolet / Drivning: 2WD
PORSCHE 718 BOXSTER (982) 04/2016- (2.5 GTS (982340. 982341) / 366 HK) Karosstyp: Cabriolet / Drivning: 2WD
PORSCHE 718 BOXSTER (982) 04/2016- (2.5 S (982330. 982331) / 350 HK) Karosstyp: Cabriolet / Drivning: 2WD
PORSCHE 718 CAYMAN (982) 04/2016- (2.0 (982120. 982121) / 299 HK) Karosstyp: Coupé / Drivning: 2WD
PORSCHE 718 CAYMAN (982) 04/2016- (2.0 / 250 HK) Karosstyp: Coupé / Drivning: 2WD
PORSCHE 718 CAYMAN (982) 04/2016- (2.5 GTS (982140. 982141) / 366 HK) Karosstyp: Coupé / Drivning: 2WD
PORSCHE 718 CAYMAN (982) 04/2016- (S 2.5 (982130. 982131) / 350 HK) Karosstyp: Coupé / Drivning: 2WD
PORSCHE BOXSTER (981) 04/2012-03/2016 (2.7 / 211 HK) Karosstyp: Cabriolet / Drivning: 2WD
PORSCHE BOXSTER (981) 04/2012-03/2016 (2.7 / 265 HK) Karosstyp: Cabriolet / Drivning: 2WD
PORSCHE BOXSTER (981) 04/2012-03/2016 (GTS 3.4 / 330 HK) Karosstyp: Cabriolet / Drivning: 2WD
PORSCHE BOXSTER (981) 04/2012-03/2016 (S 3.4 / 316 HK) Karosstyp: Cabriolet / Drivning: 2WD
PORSCHE CAYMAN (981) 03/2013-03/2016 (2.7 / 211 HK) Karosstyp: Coupé / Drivning: 2WD
PORSCHE CAYMAN (981) 03/2013-03/2016 (2.7 / 275 HK) Karosstyp: Coupé / Drivning: 2WD
PORSCHE CAYMAN (981) 03/2013-03/2016 (GTS 3.4 / 340 HK) Karosstyp: Coupé / Drivning: 2WD
PORSCHE CAYMAN (981) 03/2013-03/2016 (S 3.4 / 325 HK) Karosstyp: Coupé / Drivning: 2WD
KW Hydraulic Lift-System
Make life easy when negotiating obstacles for sporty cars with low ground clearance
More ground clearance by the push of a button
With the HLS lift system you can lift your sports car or lowered vehicle to safely negotiate obstacles such as speedbumps, railroad crossings, road works, garages and underground car parks. Depending on the version of the HLS lift system your vehicle can be hydraulically lifted either at the front axle or on both axles by up to 45 mm.
KW Hydraulic Lift System
This prevents damage to your aerodynamic components, underbody protection or even oil sump. The lift system is available either as a vehicle-specific solution with or without a KW coilover kit, depending on the type of car and the model. If you cannot find your vehicle in our KW HLS product range, our engineers have also developed a universal lift system.
A great solution made by KW

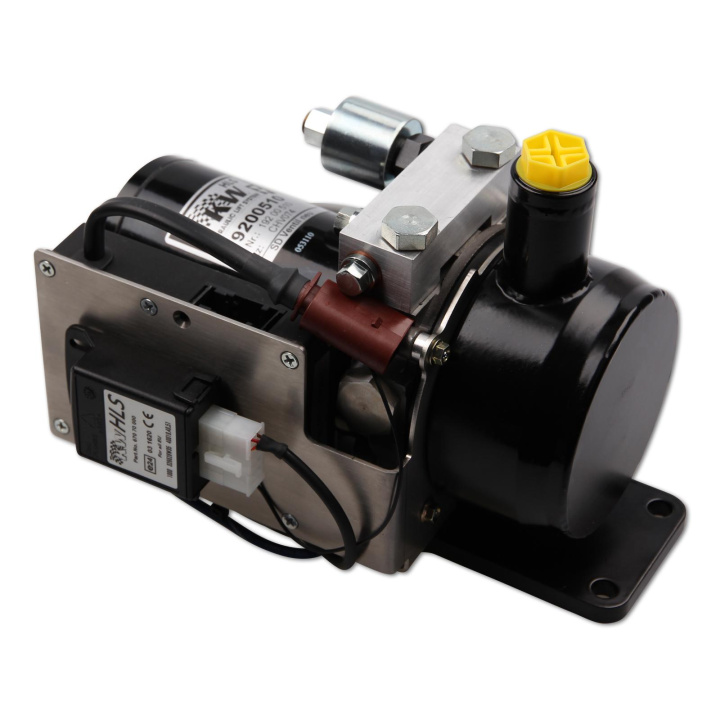

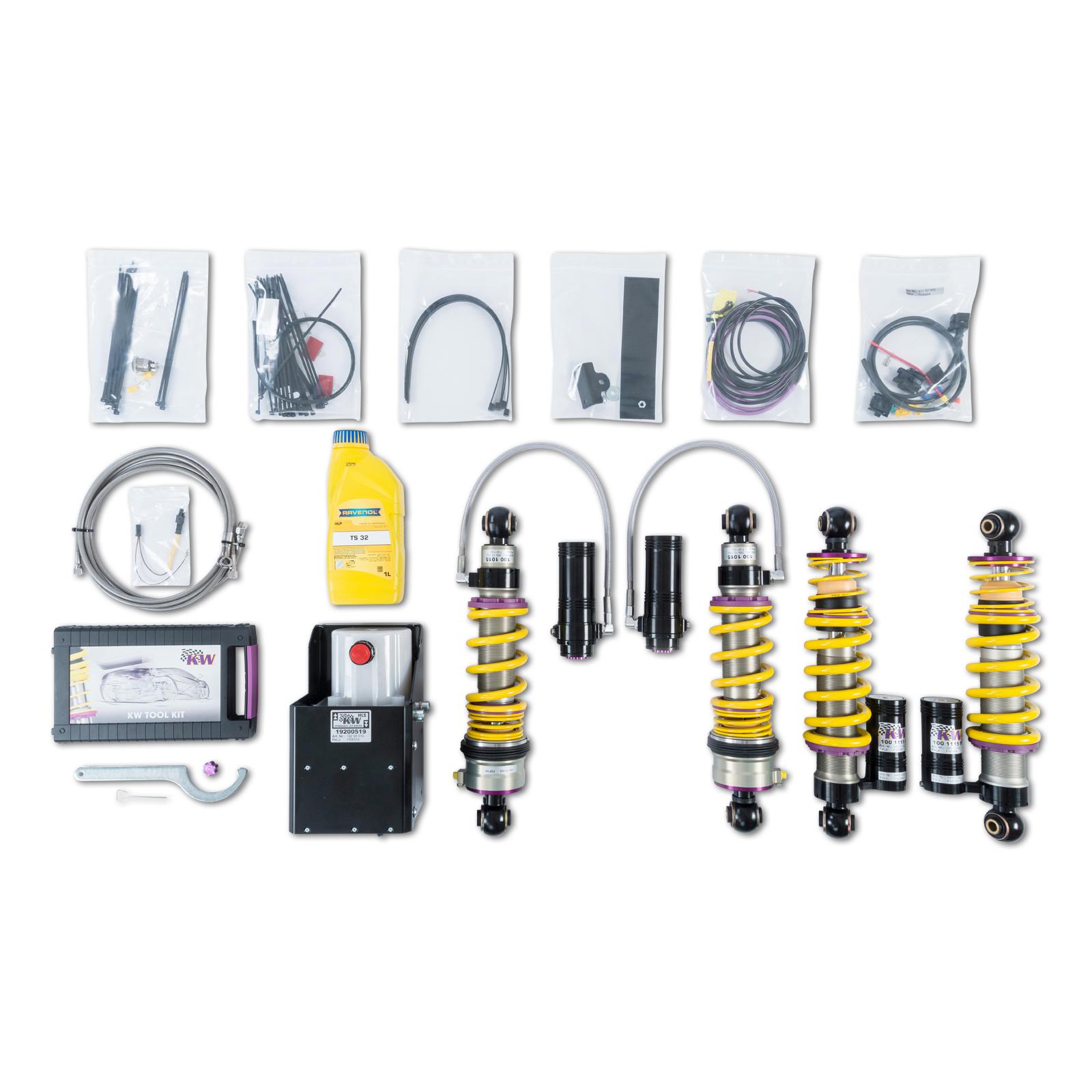

For a wide range of super cars and general everyday cars our HLS is available as an application-specific solution. Included in the delivery are such parts as the hydraulic lines or hydraulic pump adapted to your vehicle, all components will fit perfectly to your sports car. No matter if you want to combine the HLS with your series suspension kit or our KW coilovers which are one of the worlds top aftermarket products, the choice is yours. Alpina, BMW M, Manthey, Mercedes-Benz AMG, Novitec Rosso and many other well-known companies of the international automotive industry place their trust in KW coilover kits.

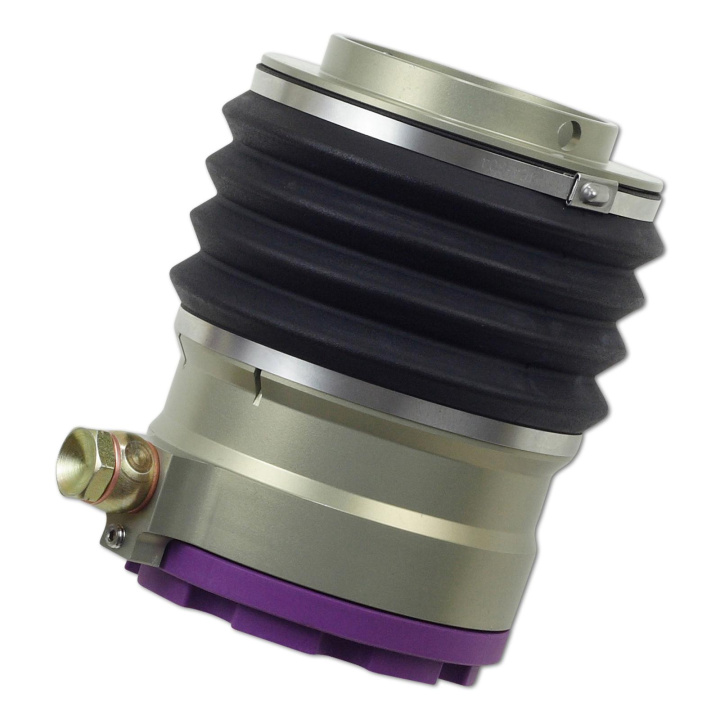

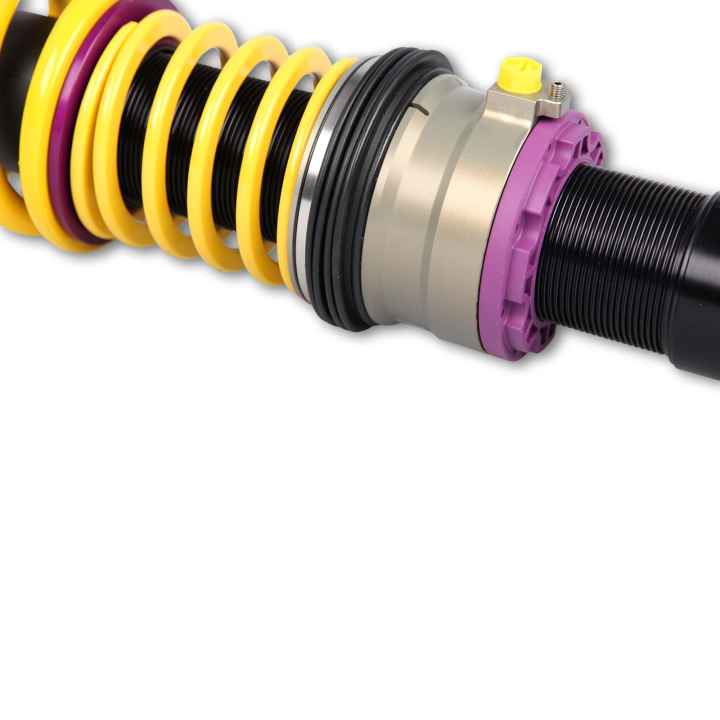

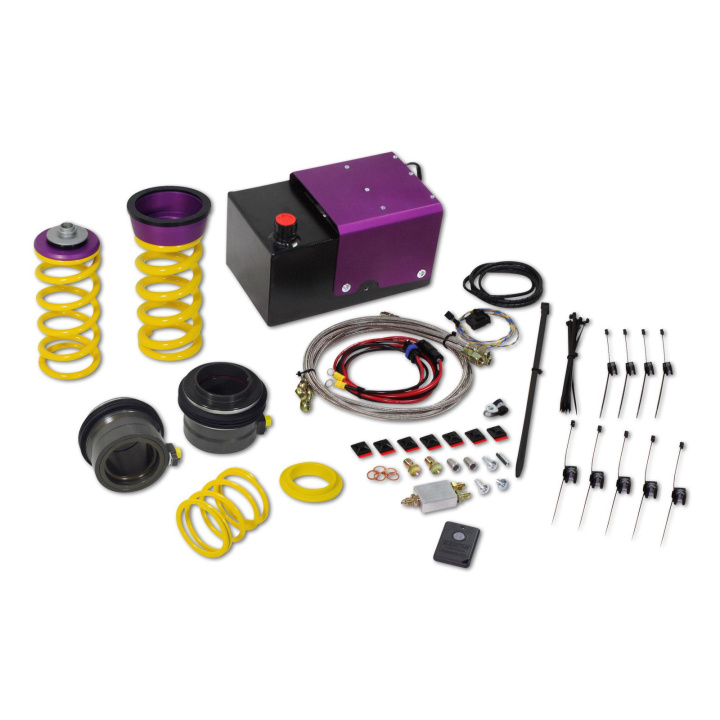

The lift kit HLS 2 is only installed on the front axle. HLS 4 allows you to lift the entire vehicle. A hydraulic cylinder is installed between spring plate and springs of each KW strut. The great advantage of the hydraulic system is that driving dynamics are not affected. The delivery content for all HLS lift kit versions include a control unit, which is connected to the vehicles on-board electronics. The vehicle will be automatically lowered at a certain speed to the original level of the KW coilover kit or your series suspension.
- available as complete solution including KW coilovers
- or as a conversion kit
- can be activated from inside the vehicle via an LED
- control button or by an optional remote control
- can be activated while driving (up to 80 km/h)
- fast lifting within 4-5 seconds (HLS 2)
- absolutely corrosion restistant (coated cylinder components made of aluminum)
