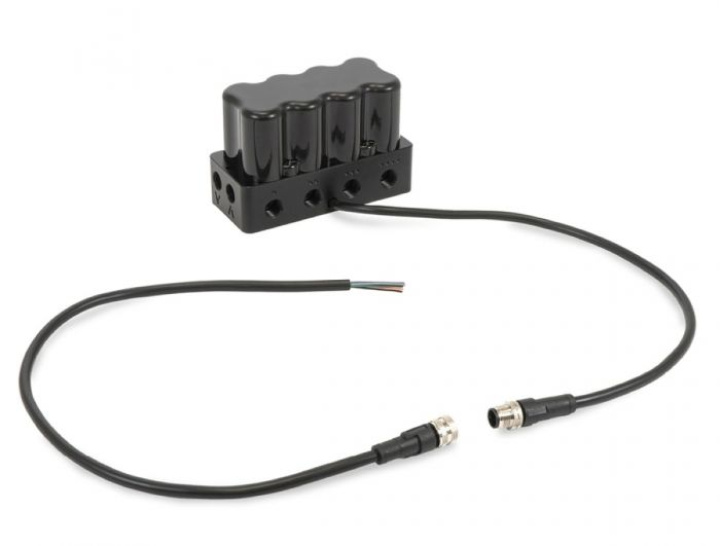

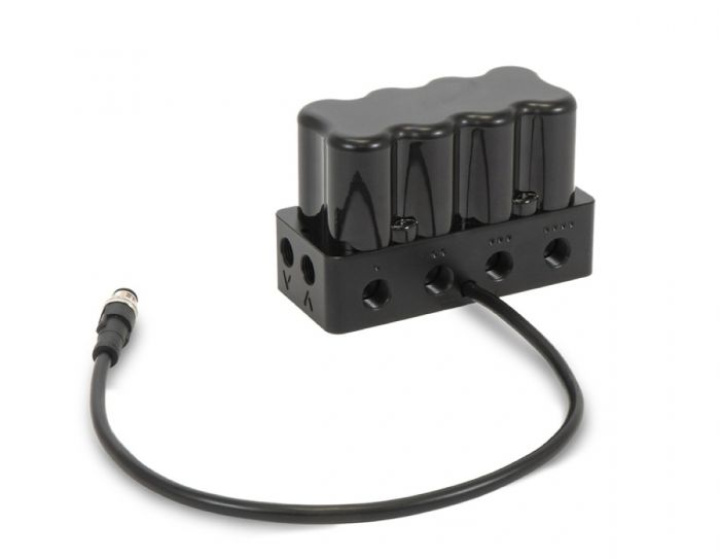

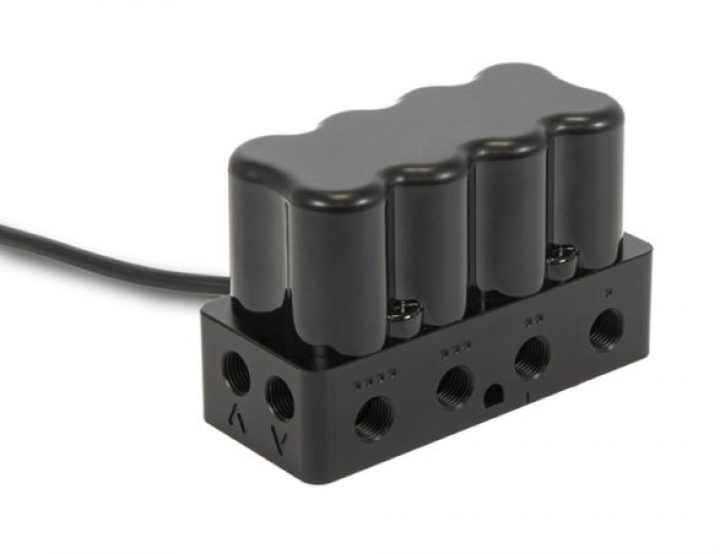

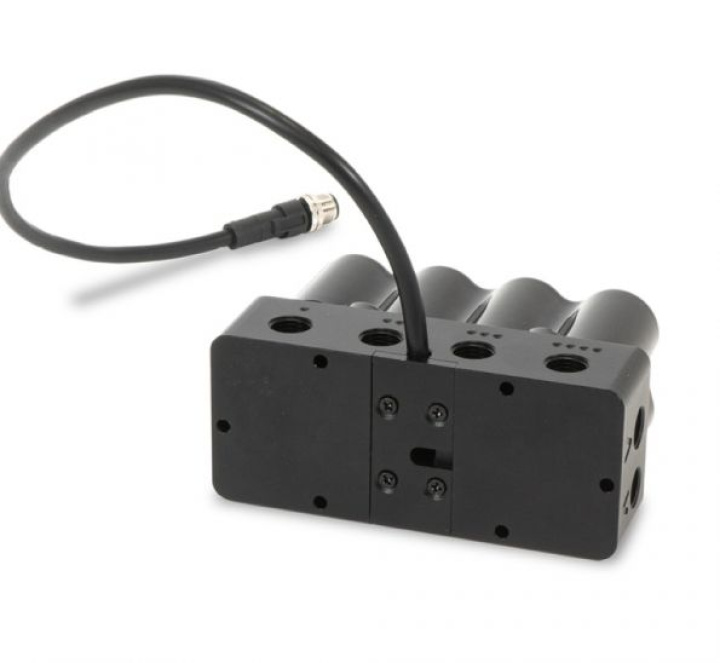

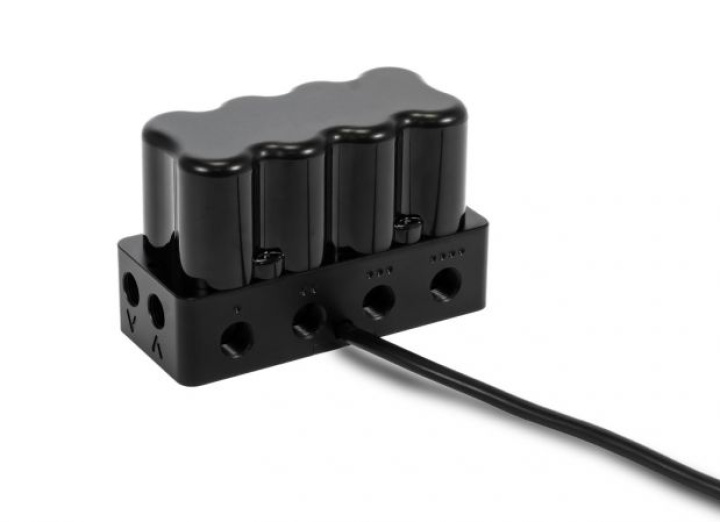

The Streetec valve4 valve block has been designed for clean installation and maximum reliability. The valve can fill and bleed 4 air circuits and is equipped with G 1/4" connections. The rugged design is designed for maximum flow, pressure up to 13.8bar and millions of shift cycles. Everything is integrated into one compact unit, with only one water-protected plug connection for all valves. The valve block is the ideal base for all airsuspension installations, with a total size of approximately 125x55x80mm.
Features
- Suitable as a normal, 12V controlled valve for all 4 wheels with antiroll

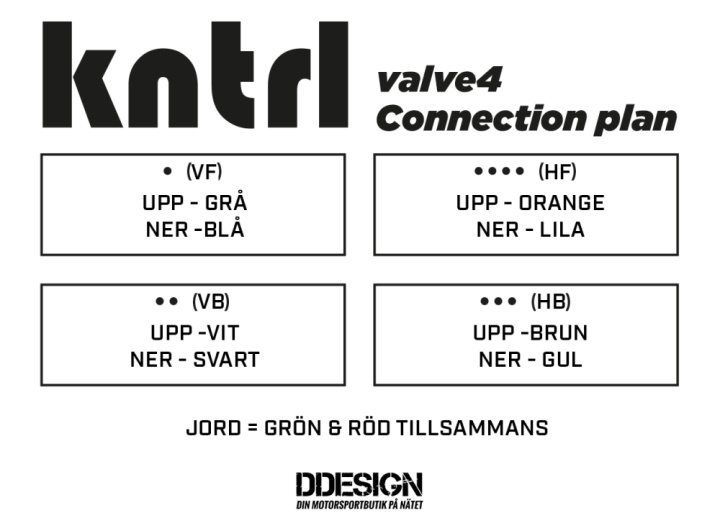

- Pre-wired and labeled on all air connections for quick installation

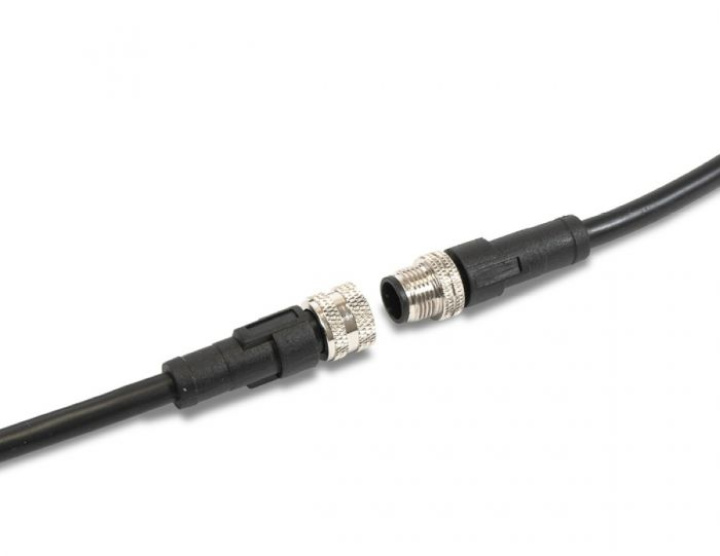

- Plug-Delete / The cable can be laid forwards, backwards or downwards
- 8 x G1/4" pressure connections
- 2 x G 1/4" inlet
- 2 x G 1/4" outlet
- Admitted to 13.8bar
- Double air inlet and outlet for maximum flow
- High quality casting and top design also for visible trunk extensions
- Compact layout for minimum space requirements
- Anodized aluminum housing for maximum corrosion protection
- 100% waterproof
- 100% compatible with the Accuair e-Level Controller or controllers and switches from other brands

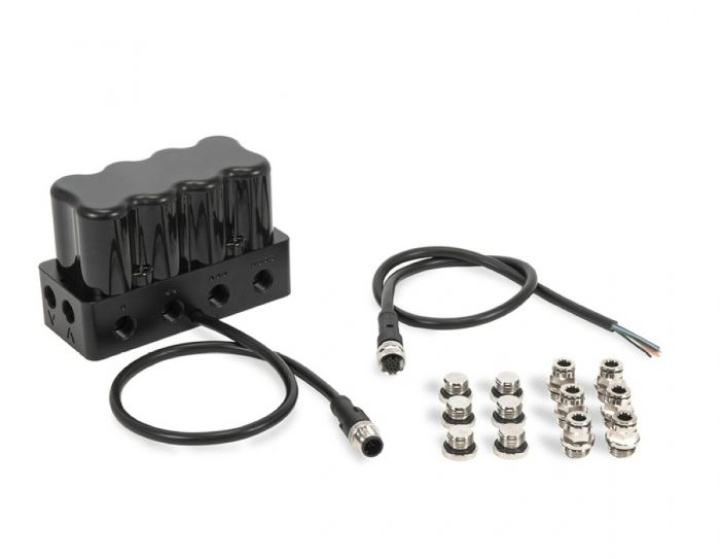

- Including all required attachments
